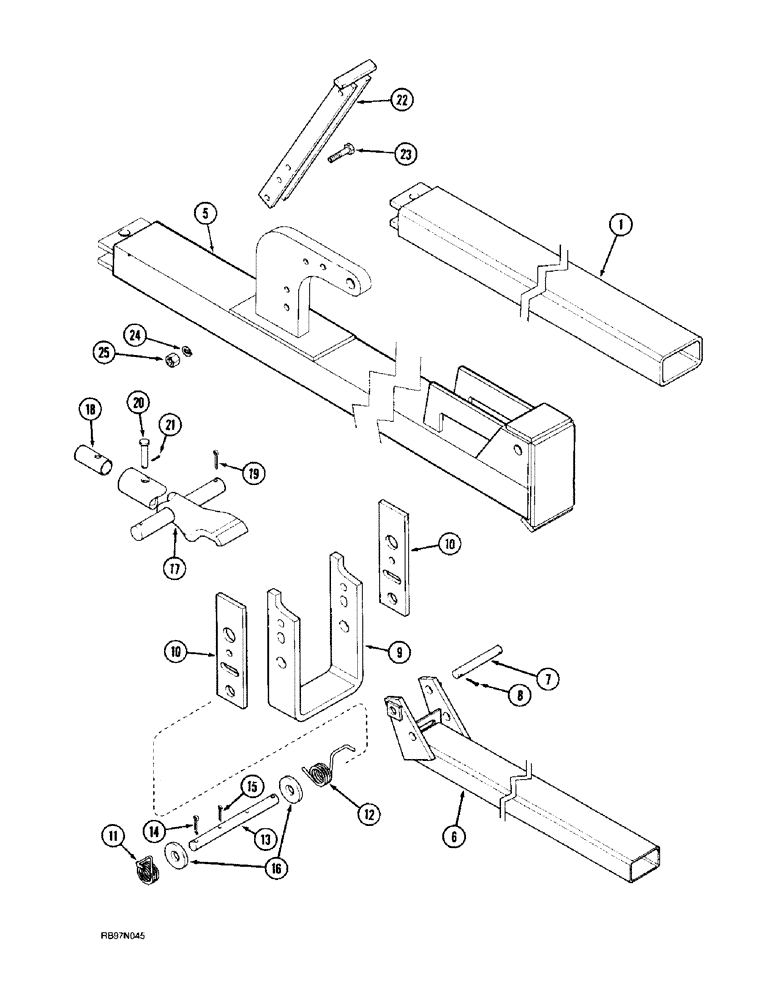

Запчасти Case IH 3850 (39.100.02) - GANG TUBE ASSEMBLY, NON-FOLDING HARROW (09) - CHASSIS/ATTACHMENTS

1

97634C1

TUBE ASSY.

FRAME - gang, 1425 mm (56-1/8 inch) long (Codes A, B)

4шт.

1

97634C1

TUBE ASSY.

FRAME - gang, 1425 mm (56-1/8 inch) long (Codes C, D, E, F)

2шт.

1

129936C2

TUBE,1626 mm Length

FRAME - gang, 1626 mm (64 inch) long (Codes C, D, E, F, G, H)

2шт.

1

129937C2

TUBE,1730 mm Length

FRAME - gang, 1730 mm (68-1/8 inch) long (Codes G, H, I, J)

2шт.

1

97635C1

TUBE ASSY.

FRAME - gang, 1850 mm (72-7/8 inch) long (Codes I, J, K, L)

2шт.

1

129938C2

TUBE,1965 mm Length

FRAME - gang, 1965 mm (77-3/8 inch) long (Codes K, L, M, N)

2шт.

1

129939C1

TUBE,2075 mm Length

FRAME - gang, 2075 mm (81-5/8 inch) long (Codes O, P)

4шт.

1

129939C1

TUBE,2075 mm Length

FRAME - gang, 2075 mm (81-5/8 inch) long (Codes M, N)

2шт.

1

129940C1

TUBE,2480 mm Length

FRAME - gang, 2480 mm (97-5/8 inch) long (Codes Q, R, S, T)

4шт.

5

97704C3

TUBE ASSY.

FRAME - gang, 1759 mm (69-1/4 inch) long (Codes A, B, E, F, I, J, M, N), folding harrow

2шт.

5

97706C3

TUBE ASSY.

FRAME - gang, 1828 mm (72 inch) long (Codes A, B, C, D, E, F, G, H, I, J, K, L, M, N), folding harrow

2шт.

5

97705C3

TUBE ASSY.

FRAME - gang, 1925 mm (75-3/4 inch) long (Codes C, D, G, H, K, L), folding harrow

2шт.

6

97643C2

TUBE ASSY.

FRAME - gang, 860 mm (33-7/8 inch) long (Codes A, B, C, D), folding harrow

4шт.

6

61996C3

TUBE ASSY.

FRAME - gang, 1000 mm (39-3/8 inch) long (Codes E, F, G, H), folding harrow

4шт.

6

62001C3

TUBE ASSY.

FRAME - gang, 1200 mm (47-1/4 inch) long (Codes I, J, K. L), folding harrow

4шт.

6

97538C2

TUBE ASSY.

FRAME - gang, 1400 mm (55-1/8 inch) long (Codes M, N), folding harrow

4шт.

7

62003C3

PIN

- pivot, folding harrow

4шт.

8

432-2024

COTTER PIN,5/16" x 1 1/2"

Pin, Split (Cotter). , folding harrow 5/16" x 1 1/2"

4шт.

9

62004C2

BRACKET

- lockout, folding harrow

4шт.

10

62008C1

BAR

- lockout, folding harrow

8шт.

11

62006C1

SPRING

- lockout bracket pin, left, folding harrow

4шт.

12

62007C1

SPRING

- lockout bracket pin, right, folding harrow

4шт.

13

62005C1

PIN

- lockout bracket, folding harrow

4шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), , Folding harrow 1/4" x 1 1/2"

8шт.

15

432-1224

COTTER PIN,3/16" x 1-1/2"

Folding harrow

8шт.

16

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

folding harriw

8шт.

17

62013C1

EXTENSION

Cylinder, folding harrow

4шт.

18

62016C1

TUBE,1.062" ID, 1.375" OD, 2.8" Length

Filler, folding harrow

4шт.

19

432-2032

COTTER PIN,5/16" x 2"

Folding harrow

8шт.

20

439-5838

HEADED PIN,1/2" x 2 3/8"

Folding harrow

4шт.

21

432-1216

COTTER PIN,3/16" x 1"

Folding harrow 3/16" x 1"

4шт.

22

100853C1

STAND

BRACKET - wing support, folding harrow

4шт.

23

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Folding harrow

8шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Folding harrow 1/2"

8шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Folding harrow 1/2"-13, G5

8шт.
