(35.100.03) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH STROKE

Запчасти Case IH 3850 (35.100.03) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

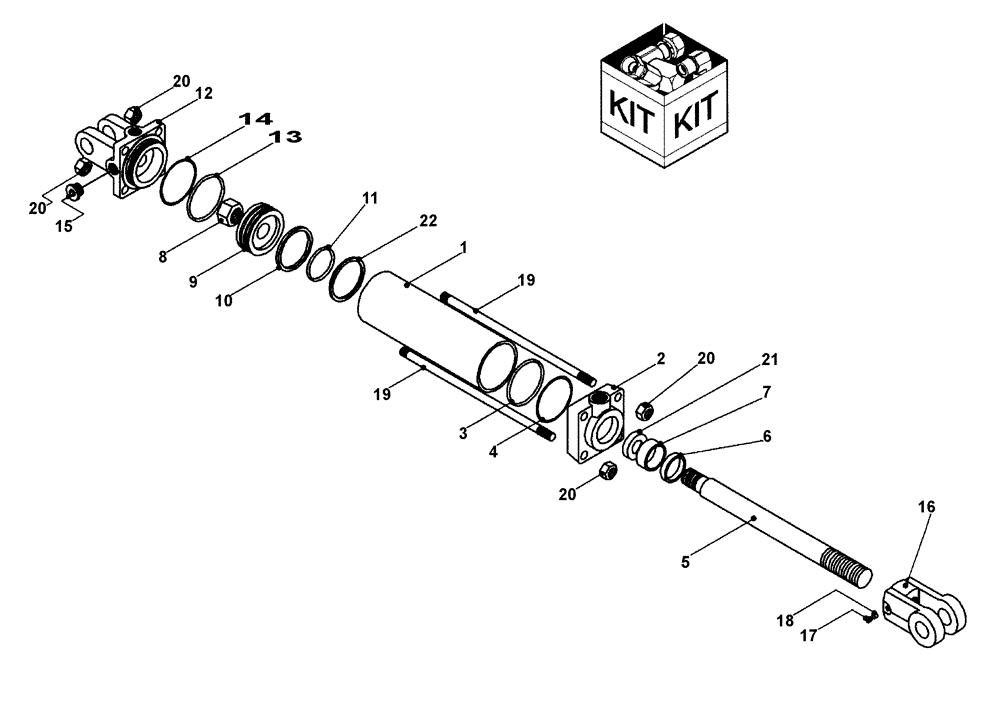

Схема запчастей Case IH 3850 - (35.100.03) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS
15
19
19
20
4
7
1
9
12
20
8
20
11
2
14
3
17
5
16
13
20
22
21
10
18
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

86989788

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

89 (3-1/2) ID x 203 mm (8 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

87409395

HEAD

- cylinder, two ports

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Seal Kit Item

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Seal Kit Item

1шт.

5

87409460

PISTON ROD

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Item

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Item

1шт.

8

232-46316

NUT,1"-14, GC

Hex, self-locking

1шт.

9

87409481

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Seal Kit Item

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Seal Kit Item

1шт.

12

87409430

HEAD

Cylinder, two ports, rear

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Seal Kit Item

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Seal Kit Item

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

16

412784A1

CLEVIS

Rod End

1шт.

17

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

CLEVIS - rod end

1шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

1шт.

19

87409491

THREADED TIE-ROD

Cylinder

1шт.

20

25-1110

NUT,5/8"-18, G5

BOLT - tie, cylinder

4шт.

21

NSS

NOT SOLD SEPARAT

U-Cup

1шт.

22

NSS

NOT SOLD SEPARAT

PTFE Seal

1шт.

87409038

SEAL KIT

1шт.
