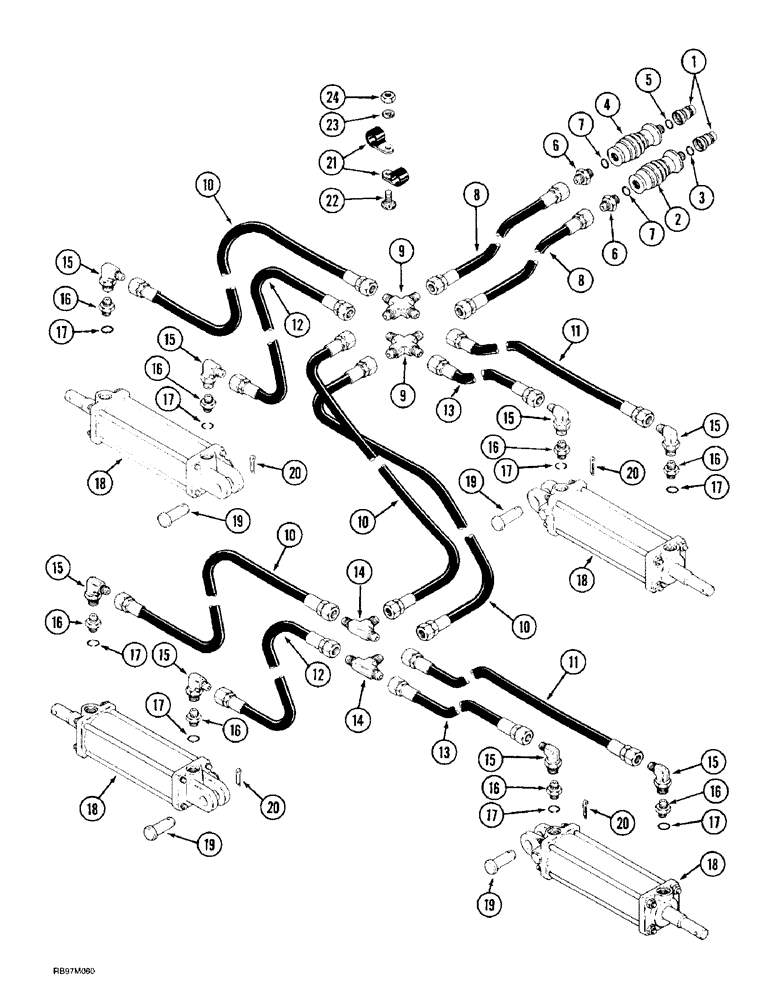

Запчасти Case IH 3850 (35.100.02) - HYDRAULIC FOLD SYSTEM (08) - HYDRAULICS

1

25705041

COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

236879A1

GRIP

KIT - HYDRA-GRIP, black, 3/4-16 inch O-ring boss

1шт.

2

NSS

NOT SOLD SEPARAT

- HYDRA-GRIP, black, extend, 3/4-16 inch O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

- HYDRA-GRIP, black, retract, 3/4-16 inch O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

129782C2

HYDRAULIC HOSE

HOSE - 4191 mm (165 inch) long

2шт.

9

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - hydraulic

2шт.

10

147878C1

HOSE

- 1650 mm (65 inch) long

4шт.

11

129908C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long

2шт.

12

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

6.35 mm ID x 1195.00 mm

2шт.

13

1254527C2

HYDRAULIC HOSE

HOSE - 940 mm (37 inch) long

2шт.

14

218-593

TEE,9/16"-18, 37 Degree

2шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

8шт.

16

95750C1

HYD CONNECTOR

Restrictor

8шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic fold (See Figure 8-8)

4шт.

19

87735776

PIN,25.4mm OD x 111.5mm L

- headed, 1 x 3-1/2 inch

4шт.

20

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

4шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

6шт.

22

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

425-106

NUT,3/8"-16, Cl 5

3шт.
