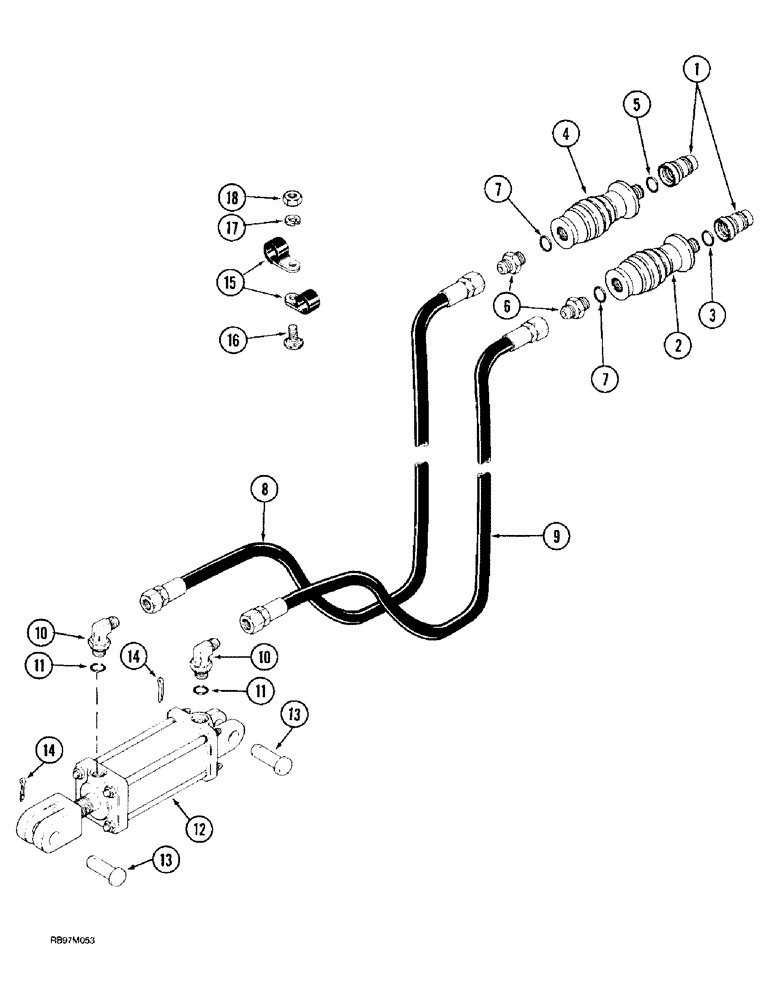

Запчасти Case IH 3850 (35.100.01) - HYDRAULIC TRANSPORT SYSTEM (08) - HYDRAULICS

1

25705041

COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

236878A1

GRIP

KIT - HYDRA-GRIP, red, 3/4-16 inch O-ring boss

1шт.

2

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - red, extend, 3/4-16 inch O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - red, retract, 3/4-16 inch O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, boss

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

8

129782C2

HYDRAULIC HOSE

HOSE - 4191 mm (165 inch) long

1шт.

9

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic transport (See Figure 8-6)

1шт.

13

87735776

PIN,25.4mm OD x 111.5mm L

PIN - headed, 1 x 3-1/2 inch

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-Type

6шт.

16

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

17

492-11038

LOCK WASHER,3/8"

3шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.
