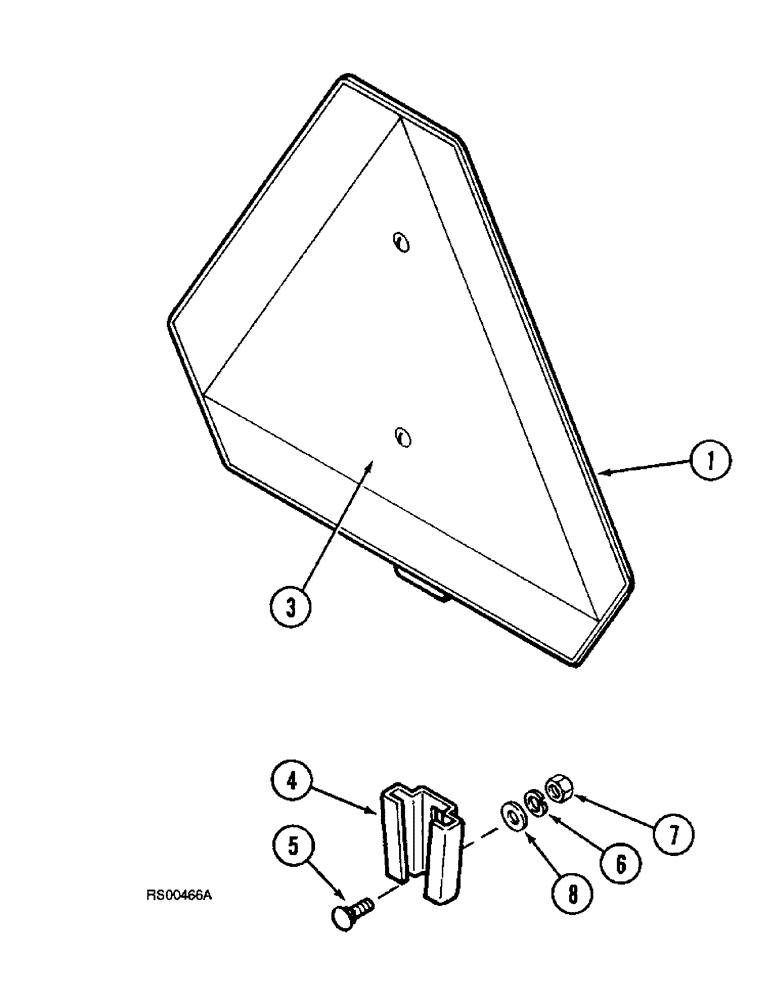

Запчасти Case IH 3800 (9-32) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1

202013C2

TRAFFIC SIGN

EMBLEM slow moving vehicle

1шт.

3

REF

INSTRUCTION

DECAL slow moving vehicle, see figure 9-32

1шт.

4

A59457

BRACKET

mounting

2шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

flat, 11/32 x 3/4 x 3/64 inch

2шт.
