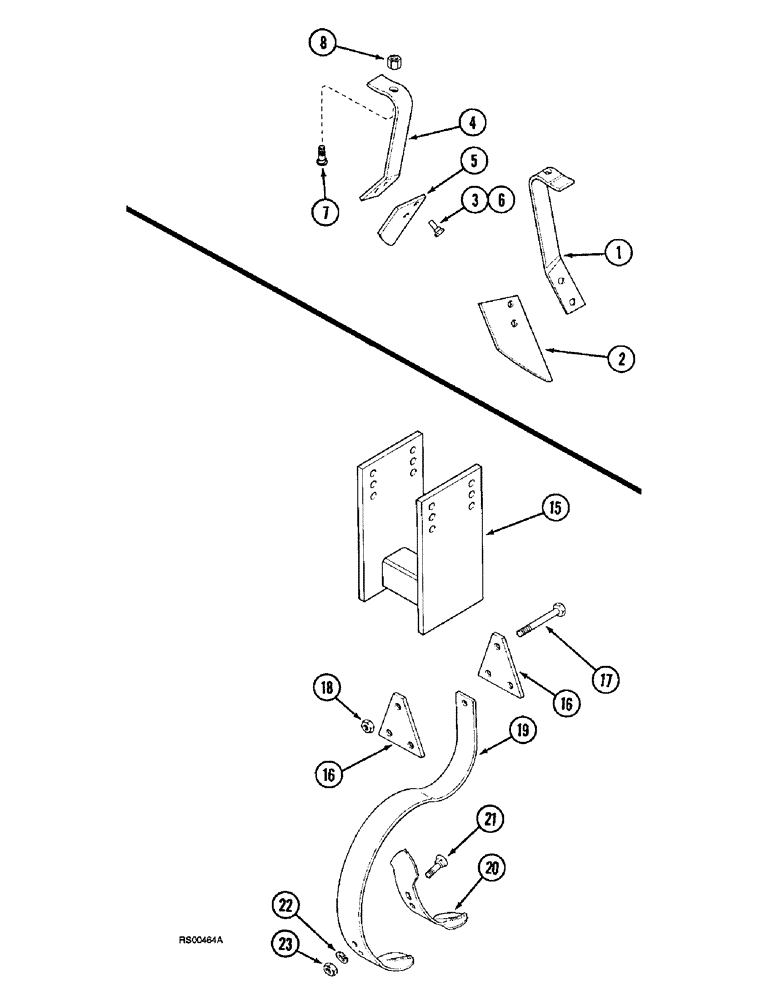

Запчасти Case IH 3800 (9-28) - DISC SCRAPER, CENTER TOOTH (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY, disk, right hand

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET scraper

1шт.

2

121118C1

BLADE

scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY, disk, left hand

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET scraper

1шт.

5

121118C1

BLADE

scraper

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT special

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

15

96005C1

MOUNTING PARTS

SUPPORT center tooth

1шт.

16

91256C1

LARGE PLATE

PLATE, LARGE clamp, center tooth

2шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch, center tooth

7шт.

18

230-4118

LOCK NUT,1/2"-13, GA

hex, self locking, 1/2 inch NC, center tooth

7шт.

19

97536C1

SPRING

tooth, 9/16 inch thick, center tooth

1шт.

20

547188R2

POINT

reversible spring, center tooth

1шт.

21

26538R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

BOLT plow, 3/8 NC x 1-1/2 inch, center tooth

2шт.

22

492-11038

LOCK WASHER,3/8"

Center tooth

2шт.

23

425-106

NUT,3/8"-16, Cl 5

Center tooth

2шт.
