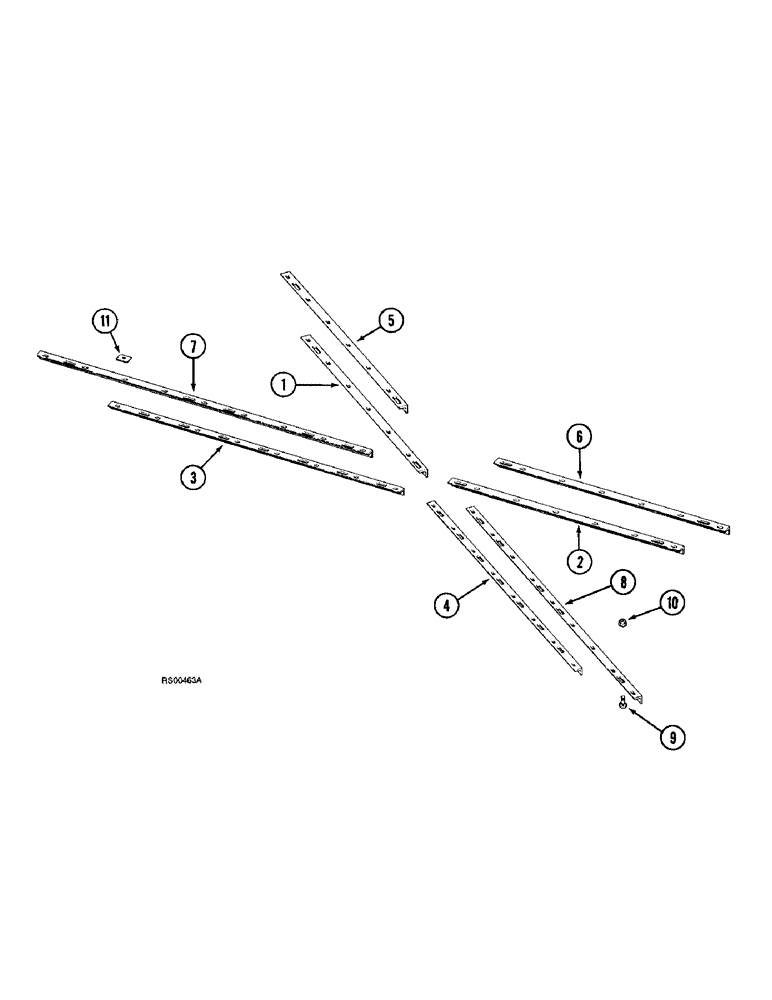

Запчасти Case IH 3800 (9-26) - SCRAPER SUPPORTS, FOLDING HARROW, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

121131C1

ANGLE

SUPPORT scraper, 66-7/16 inch long, left front, (Codes C, D, G, H, K, L)

1шт.

2

121130C1

ANGLE

SUPPORT scraper, 66-7/16 inch long, right front, (Codes C, D, G, H, K, L)

1шт.

3

121134C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, left rear, (Codes C, D, G, H, K, L)

1шт.

4

121135C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, right rear, (Codes C, D, G, H, K, L)

1шт.

5

121133C1

ANGLE

SUPPORT scraper, 25-1/4 inch long, left front, (Codes C, D)

1шт.

5

121125C1

ANGLE

SUPPORT scraper, 34-1/4 inch long, left front, (Codes G, H)

1шт.

5

129789C2

ANGLE

SUPPORT scraper, 48-13/16 inch long, left front, (Codes K, L)

1шт.

6

121132C1

ANGLE

SUPPORT scraper, 25-1/4 inch long, right front, (Codes C, D)

1шт.

6

121124C1

ANGLE

SUPPORT scraper, 34-1/4 inch long, right front, (Codes G, H)

1шт.

6

129788C2

ANGLE

SUPPORT scraper, 48-13/16 inch long, right front, (Codes K, L)

1шт.

7

1986259C1

ANGLE

SUPPORT scraper, 39-3/8 inch long, left rear, (Codes C, D)

1шт.

7

121163C2

ANGLE

SUPPORT scraper, 48-7/16 inch long, left rear, (Codes G, H)

1шт.

7

121165C3

ANGLE

SUPPORT scraper, 57-3/8 inch long, left rear, (Codes K, L)

1шт.

8

1986260C1

ANGLE

SUPPORT scraper, 39-3/8 inch long, right rear, (Codes C, D)

1шт.

8

121164C2

ANGLE

SUPPORT scraper, 48-7/16 inch long, right rear, (Codes G, H)

1шт.

8

121166C3

ANGLE

SUPPORT scraper, 57-3/8 inch long, right rear, (Codes K, L)

1шт.

9

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

16шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

16шт.

11

136222A1

SHIM

scraper support

1шт.
