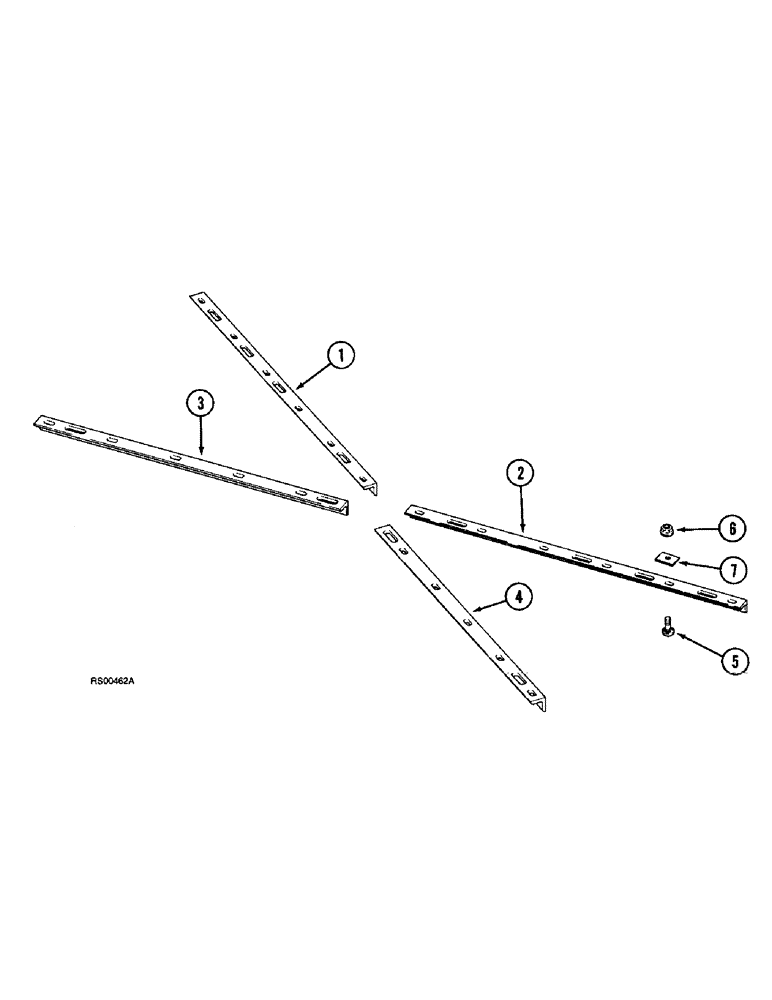

Запчасти Case IH 3800 (9-24) - SCRAPER SUPPORTS, NON-FOLDING HARROW, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

121164C2

ANGLE

SUPPORT scraper, 48-7/16 inch long, left front, (Codes E, F)

1шт.

1

121135C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, left front, (Codes I, J)

1шт.

1

121129C3

ANGLE

SUPPORT scraper, 70-5/16 inch long, left front, (Codes M, N)

1шт.

1

121160C2

ANGLE

SUPPORT scraper, 88-3/8 inch long, left front, (Codes S, T)

1шт.

2

121163C2

ANGLE

SUPPORT scraper, 48-7/16 inch long, right front, (Codes E, F)

1шт.

2

121134C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, right front, (Codes I, J)

1шт.

2

121128C3

ANGLE

SUPPORT scraper, 70-5/16 inch long, right front, (Codes M, N)

1шт.

2

121159C2

ANGLE

SUPPORT scraper, 88-3/8 inch long, right front, (Codes S, T)

1шт.

3

121134C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, left rear, (Codes E, F)

1шт.

3

121128C3

ANGLE

SUPPORT scraper, 70-5/16 inch long, left rear, (Codes I, J)

1шт.

3

1986255C1

ANGLE

SUPPORT scraper, 79-3/8 inch long, left rear, (Codes M, N)

1шт.

3

1986257C1

ANGLE

SUPPORT scraper, 97-3/8 inch long, left rear, (Codes S, T)

1шт.

4

121135C2

ANGLE

SUPPORT scraper, 61-1/4 inch long, right rear, (Codes E, F)

1шт.

4

121129C3

ANGLE

SUPPORT scraper, 70-5/16 inch long, right rear, (Codes I, J)

1шт.

4

1986256C1

ANGLE

SUPPORT scraper, 79-3/8 inch long, right rear, (Codes M, N)

1шт.

4

1986258C1

ANGLE

SUPPORT scraper, 97-3/8 inch long, right rear, (Codes S, T)

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

1шт.

6

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange

1шт.

7

136222A1

SHIM

scraper support

1шт.
