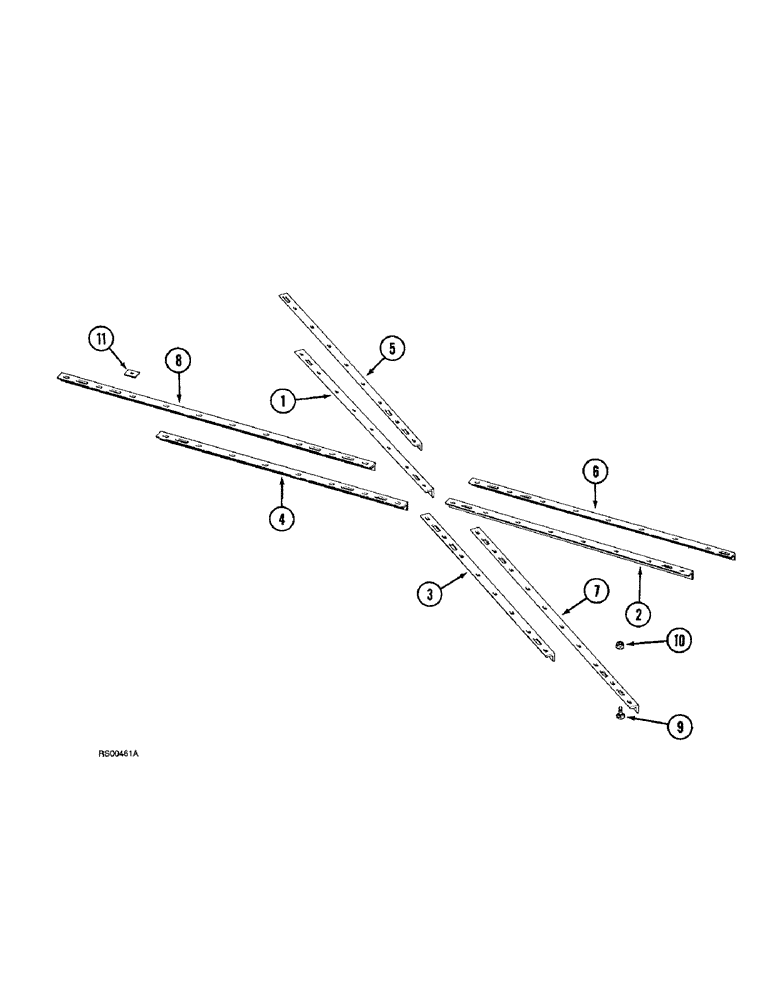

Запчасти Case IH 3800 (9-22) - SCRAPER SUPPORTS, FOLDING HARROW, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
121138C1
ANGLE
SUPPORT scraper, 63-1/2 inch long, left front, (Codes A, B, E, F, I, J, M, N)
1шт.
2
121138C1
ANGLE
SUPPORT scraper, 63-1/2 inch long, right front, (Codes A, B, E, F, I, J, M, N)
1шт.
3
121141C2
ANGLE
SUPPORT scraper, 59-13/16 inch long, right rear, (Codes A, B, E, F, I, J, M, N)
1шт.
4
121142C2
ANGLE
SUPPORT scraper, 59-13/16 inch long, left rear, (Codes A, B, E, F, I, J, M, N)
1шт.
5
121140C1
ANGLE
SUPPORT scraper, 29-3/4 inch long, left front, (Codes A, B)
1шт.
5
121145C1
ANGLE
SUPPORT scraper, 37-1/4 inch long, left front, (Codes E, F)
1шт.
5
129905C1
NUT
SUPPORT scraper, 44-13/16 inch long, left front, (Codes I, J)
1шт.
5
129814C2
ANGLE
SUPPORT scraper, 52-5/16 inch long, left front, (Codes M, N)
1шт.
6
121139C1
ANGLE
SUPPORT scraper, 29-3/4 inch long, right front, (Codes A, B)
1шт.
6
121144C1
ANGLE
SUPPORT scraper, 37-1/4 inch long, right front, (Codes E, F)
1шт.
6
129906C1
ANGLE
SUPPORT scraper, 44-13/16 inch long, right front, (Codes I, J)
1шт.
6
129813C2
ANGLE
SUPPORT scraper, 52-5/16 inch long, right front, (Codes M, N)
1шт.
7
121156C2
ANGLE
SUPPORT scraper, 40-7/8 inch long, right rear, (Codes A, B)
1шт.
7
121173C2
ANGLE
SUPPORT scraper, 48-7/16 inch long, right rear, (Codes E, F)
1шт.
7
1986254C1
ANGLE
SUPPORT scraper, 55-15/16 inch long, right rear, (Codes I, J)
1шт.
7
121138C1
ANGLE
SUPPORT scraper, 63-1/2 inch long, right rear, (Codes M, N)
1шт.
8
121156C2
ANGLE
SUPPORT scraper, 40-7/8 inch long, left rear, (Codes A, B)
1шт.
8
121173C2
ANGLE
SUPPORT scraper, 48-7/16 inch long, left rear, (Codes E, F)
1шт.
8
1986253C1
ANGLE
SUPPORT scraper, 55-15/16 inch long, left rear, (Codes I, J)
1шт.
8
121138C1
ANGLE
SUPPORT scraper, 63-1/2 inch long, left rear, (Codes M, N)
1шт.
9
433-1028
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5
5/8 NC x 1-3/4 inch
16шт.
10
232-51310
FLANGE NUT,Flg, USR, 5/8"-12
hex serrated flange, 5/8 inch NC, grade 8
16шт.
11
136222A1
SHIM
scraper support
1шт.
Выбрано товаров: 23
