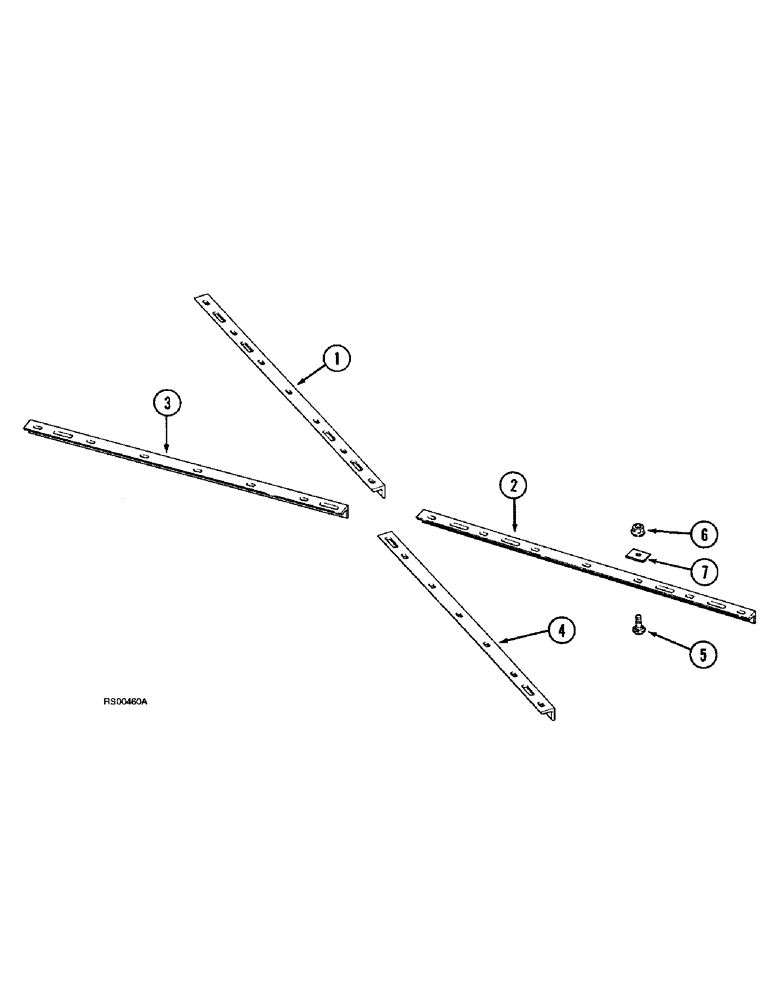

Запчасти Case IH 3800 (9-20) - SCRAPER SUPPORTS, NON-FOLDING HARROW, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

129905C1

NUT

SUPPORT scraper, 44-13/16 inch long, left front (Codes A, B)

1шт.

1

129814C2

ANGLE

SUPPORT scraper, 52-5/16 inch long, left front, (Codes C, D)

1шт.

1

121142C2

ANGLE

SUPPORT scraper, 59-13/16 inch long, left front, (Codes G, H)

1шт.

1

1986250C1

ANGLE

SUPPORT scraper, 67-5/15 inch long, left front, (Codes K, L)

1шт.

1

121149C2

ANGLE

SUPPORT scraper, 74-7/8 inch long, left front, (Codes O, P)

1шт.

1

121158C2

ANGLE

SUPPORT scraper, 89-15/16 inch long, left front, (Codes Q, R)

1шт.

2

129906C1

ANGLE

SUPPORT scraper, 44-13/16 inch long, right front (Codes A, B)

1шт.

2

129813C2

ANGLE

SUPPORT scraper, 52-5/16 inch long, right front, (Codes C, D)

1шт.

2

121141C2

ANGLE

SUPPORT scraper, 59-13/16 inch long, right front, (Codes G, H)

1шт.

2

1986249C1

ANGLE

SUPPORT scraper, 67-5/15 inch long, right front, (Codes K, L)

1шт.

2

121148C2

ANGLE

SUPPORT scraper, 74-7/8 inch long, right front, (Codes O, P)

1шт.

2

121157C2

ANGLE

SUPPORT scraper, 89-15/16 inch long, right front, (Codes Q, R)

1шт.

3

129813C2

ANGLE

SUPPORT scraper, 52-5/16 inch long, left rear, (Codes A, B)

1шт.

3

121141C2

ANGLE

SUPPORT scraper, 59-13/16 inch long, left rear, (Codes C, D)

1шт.

3

1986249C1

ANGLE

SUPPORT scraper, 67-5/16 inch long, left rear, (Codes G, H)

1шт.

3

121148C2

ANGLE

SUPPORT scraper, 74-7/8 inch long, left rear, (Codes K, L)

1шт.

3

1986251C1

ANGLE

SUPPORT scraper, 82-1/2 inch long, left rear, (Codes O, P)

1шт.

3

129818C1

ANGLE

SUPPORT scraper, 97-7/16 inch long, left rear, (Codes Q, R)

1шт.

4

129814C2

ANGLE

SUPPORT scraper, 52-5/16 inch long, right rear, (Codes A, B)

1шт.

4

121142C2

ANGLE

SUPPORT scraper, 59-13/16 inch long, right rear, (Codes C, D)

1шт.

4

1986250C1

ANGLE

SUPPORT scraper, 67-5/16 inch long, right rear, (Codes G, H)

1шт.

4

121149C2

ANGLE

SUPPORT scraper, 74-7/8 inch long, right rear, (Codes K, L)

1шт.

4

1986252C1

ANGLE

SUPPORT scraper, 82-1/2 inch long, right rear, (Codes O, P)

1шт.

4

129817C1

ANGLE

SUPPORT scraper, 97-7/16 inch long, right rear, (Codes Q, R)

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

1шт.

6

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

1шт.

7

136222A1

SHIM

scraper support

1шт.
