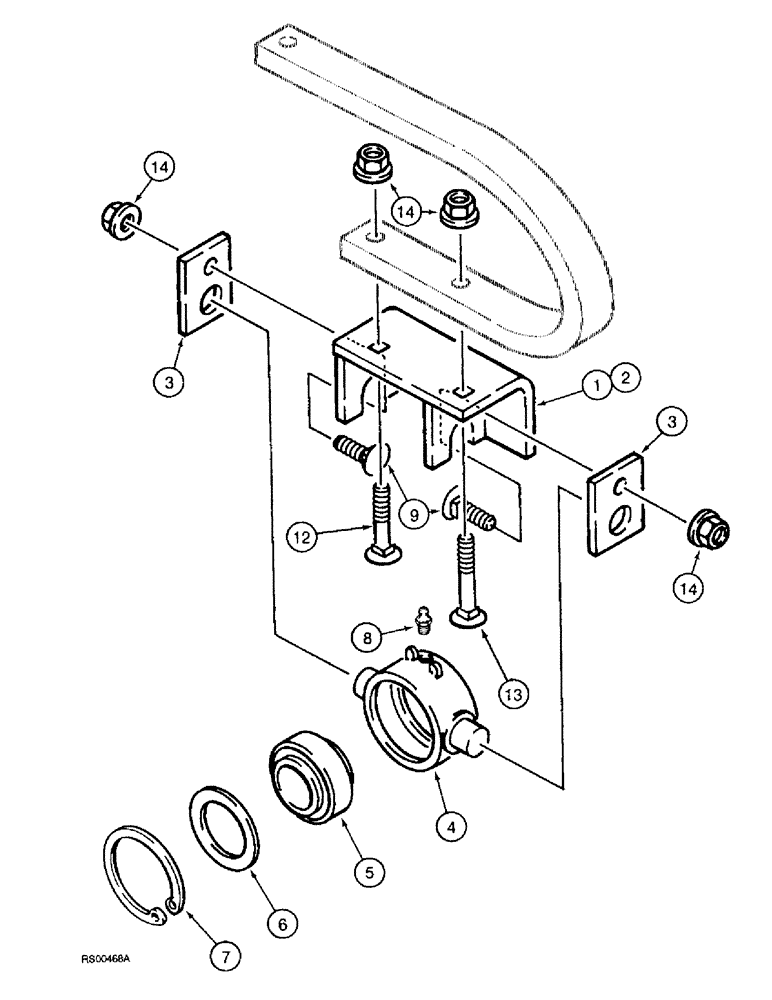

Запчасти Case IH 3800 (9-18) - TRUNNION BEARING RETROFIT COMPONENTS (09) - CHASSIS/ATTACHMENTS

116335A1

PACKAGE

KIT bearing conversion, right hand, see note

1шт.

116336A1

PACKAGE

KIT bearing conversion, left hand, see note

1шт.

1

111239A1

BRACKET

bearing, right hand, Included with 116335A1 kit

1шт.

2

111240A1

BRACKET

bearing, left hand, Included with 116336A1 kit

1шт.

3

111236A1

LARGE PLATE

PLATE, LARGE keeper trunnion

2шт.

100517A1

BALL BEARING,44.96mm ID x 57.53mm OD x 46.04mm W

TRUNNION ASSEMBLY

1шт.

4

NSS

NOT SOLD SEPARAT

TRUNNION bearing, Order 100517A1 assembly

1шт.

5

100519A1

BALL BEARING,44.96mm ID x 85mm OD x 42.85mm W

trunnion

1шт.

6

100724A1

WASHER,59mm ID x 84mm OD x 3mm Thk

retaining, bearing

1шт.

7

100-21334

SNAP RING,3.346", Int, #334

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

2шт.

12

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8 NC x 2-1/4 inch

1шт.

13

433-1044

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

carriage, 5/8 NC x 2-3/4 inch

1шт.

14

231-53410

FLANGE NUT,Flg, 5/8"-11

4шт.
