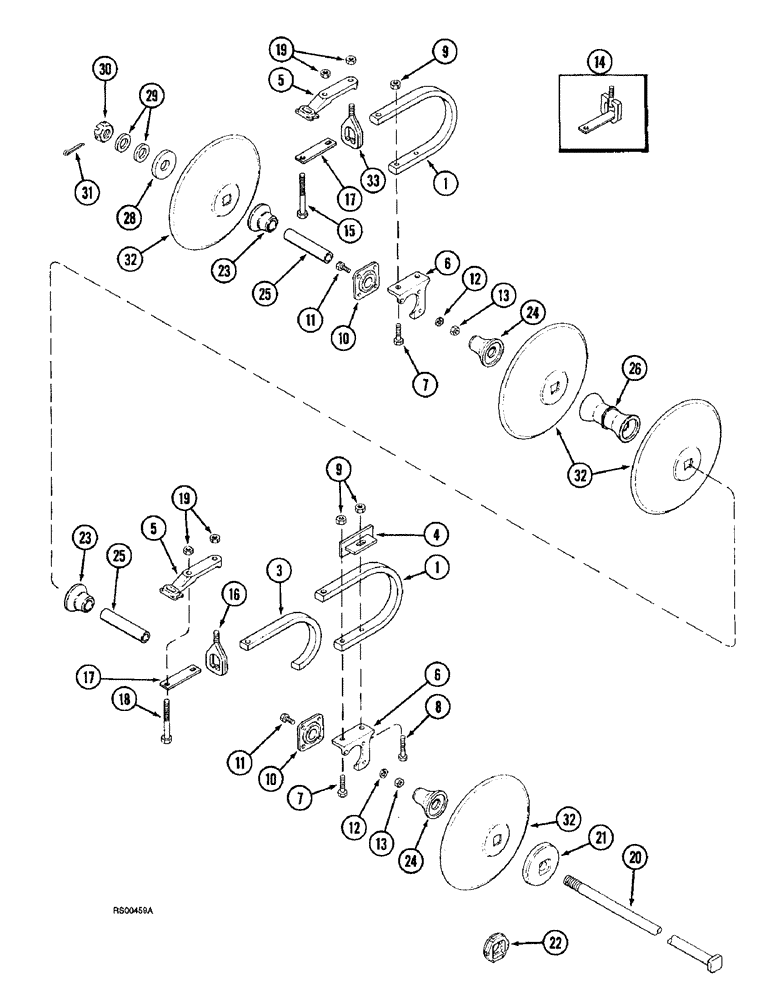

Запчасти Case IH 3800 (9-16) - CUSHION DISK GANG, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

147763C1

SPRING

SUPPORT bearing, left hand

1шт.

1

147764C1

SPRING

SUPPORT bearing, right hand

1шт.

3

1263531C1

SPRING

helper, left hand

1шт.

3

1263532C1

SPRING

helper, right hand

1шт.

4

1263626C2

ANGLE

BRACKET stiffener

2шт.

5

139583C5

SUPPORT

scraper angle

1шт.

6

147873C1

SUPPORT

RETAINER bearing, left hand

1шт.

6

147874C1

SUPPORT

RETAINER bearing, right hand

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

9

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

10

ST491A

BALL BEARING,45mm ID

flange

1шт.

10

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT spring eye, Order Ref. 17 and 33, UAR

1шт.

15

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

1шт.

16

1978953C1

BOLT

BOLT spring eye, front center main gang only

2шт.

17

1978954C1

LARGE PLATE

PLATE, LARGE BAR bolt retainer

1шт.

18

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

BOLT hex, 3/4 NC x 7 inch

2шт.

19

231-41112

LOCK NUT,3/4"-10, GB

1шт.

20

1284113C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 762mm

arbor, 30 inch (762 mm) long, 4 blade, 9 inch spacing

1шт.

20

1284114C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 994mm

arbor, 39-1/8 inch (994 mm) long, 5 blade, 9 inch spacing

1шт.

20

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

arbor, 48-11/32 inch (1228 mm) long, 6 blade, 9 inch spacing

1шт.

20

1263537C4

BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

arbor, 57-23/64 inch (1457 mm) long, 7 blade, 9 inch spacing

1шт.

20

1263538C4

BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

arbor, 66-1/2 inch (1689 mm) long, 8 blade, 9 inch spacing

1шт.

20

1263539C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

arbor, 75-5/8 inch (1921 mm) long, 9 blade, 9 inch spacing

1шт.

20

1263541C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

arbor, 93-3/4 inch (2381 mm) long, 11 blade, 9 inch spacing

1шт.

21

1344908C1

WASHER

bumper, front inner gang only

2шт.

22

139927C1

WASHER

WASHER head

1шт.

23

101190C1

SPOOL

bearing, 3 inch long

1шт.

24

101191C1

SPOOL

bearing, 4 inch long

1шт.

25

112410C1

TUBE

BUSHING support, 9 inch long

1шт.

26

139918C1

SPACER

SPOOL, 9 inch spacing

1шт.

28

139773C1

WASHER

WASHER end

1шт.

29

1284383C1

WASHER

arbor bolt

1шт.

30

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2 inch NC

1шт.

31

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

1шт.

32

31000R1

DISC

solid, 559 x 5 mm

1шт.

32

30999R1

DISC

solid, 508 x 5 mm

1шт.

32

31230R1

DISC

solid, 457 x 5 mm

1шт.

32

31217R2

DISC

solid, 559 x 6.5 mm

1шт.

32

31232R2

DISC

solid, 508 x 6.5 mm

1шт.

33

100514A1

BOLT

BOLT, EYE spring

1шт.

33

100514A2

BOLT

BOLT, EYE Spring, Replaces 100514A1

1шт.
