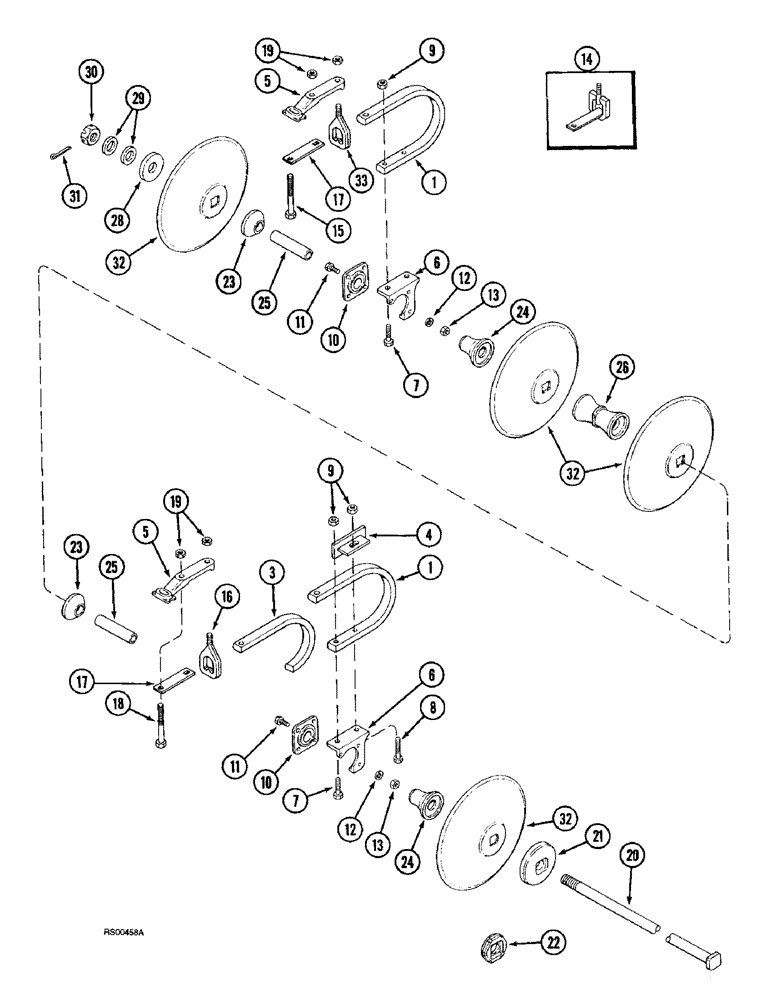

Запчасти Case IH 3800 (9-14) - CUSHION DISK GANG, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

147763C1

SPRING

SUPPORT bearing, left hand

1шт.

1

147764C1

SPRING

SUPPORT bearing, right hand

1шт.

3

1263531C1

SPRING

helper, left hand

1шт.

3

1263532C1

SPRING

helper, right hand

1шт.

4

1263626C2

ANGLE

BRACKET stiffener

2шт.

5

139583C5

SUPPORT

scraper angle

1шт.

6

147873C1

SUPPORT

RETAINER bearing, left hand

1шт.

6

147874C1

SUPPORT

RETAINER bearing, right hand

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

9

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

10

ST491A

BALL BEARING,45mm ID

flange

1шт.

10

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT spring eye, (Order Ref. 17 and 33) UAR

1шт.

15

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

1шт.

16

1978953C1

BOLT

spring eye, front center main gang only

2шт.

17

1978954C1

LARGE PLATE

PLATE, LARGE BAR bolt retainer

1шт.

18

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

BOLT hex, 3/4 NC x 7 inch

2шт.

19

231-41112

LOCK NUT,3/4"-10, GB

1шт.

20

1284115C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 845mm

arbor, 33-1/4 inch (845 mm) long, 5 blade, 7-1/2 inch spacing

1шт.

20

1284116C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 1052mm

arbor, 40-7/8 inch (1038 mm) long, 6 blade, 7-1/2 inch spacing

1шт.

20

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

arbor, 48-11/32 inch (1228 mm) long, 7 blade, 7-1/2 inch spacing

1шт.

20

1263612C3

BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

arbor, 59-9/64 inch (1426 mm) long, 8 blade, 7-1/2 inch spacing

1шт.

20

1263613C3

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

arbor, 63-3/4 inch (1619 mm) long, 9 blade, 7-1/2 inch spacing

1шт.

20

1986246C3

BOLT

arbor, 71-3/8 inch (1813 mm) long, 10 blade, 7-1/2 inch spacing

1шт.

20

1263614C3

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

arbor, 79-1/64 inch (2007 mm) long, 11 blade, 7-1/2 inch spacing

1шт.

20

1986247C3

SPECIAL BOLT,1 1/2" - 6 x 94.88"

arbor, 94-3/16 inch (2392 mm) long, 13 blade, 7-1/2 inch spacing

1шт.

21

1344908C1

WASHER

bumper, front inner gang only

2шт.

22

139927C1

WASHER

WASHER head

1шт.

23

1263636C1

SPOOL

bearing, 2.613 inch long

1шт.

23

101189C1

SPOOL

SPINDLE

1шт.

24

101191C1

SPOOL

bearing, 4 inch long

1шт.

25

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

support, 7-1/2 inch long

1шт.

26

1263631C1

SPOOL

spacing, 7-1/2 inch spacing

1шт.

28

139773C1

WASHER

WASHER end

1шт.

29

1284383C1

WASHER

arbor bolt

1шт.

30

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2 inch NC

1шт.

31

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

1шт.

32

31000R1

DISC

solid, 559 x 5 mm

1шт.

32

30999R1

DISC

solid, 508 x 5 mm

1шт.

32

31230R1

DISC

solid, 457 x 5mm

1шт.

32

31217R2

DISC

solid, 559 x 6.5 mm

1шт.

32

31232R2

DISC

solid, 508 x 6.5 mm

1шт.

33

100514A1

BOLT

BOLT, EYE spring

1шт.

33

100514A2

BOLT

BOLT, EYE Spring, replaces 100514A1

1шт.
