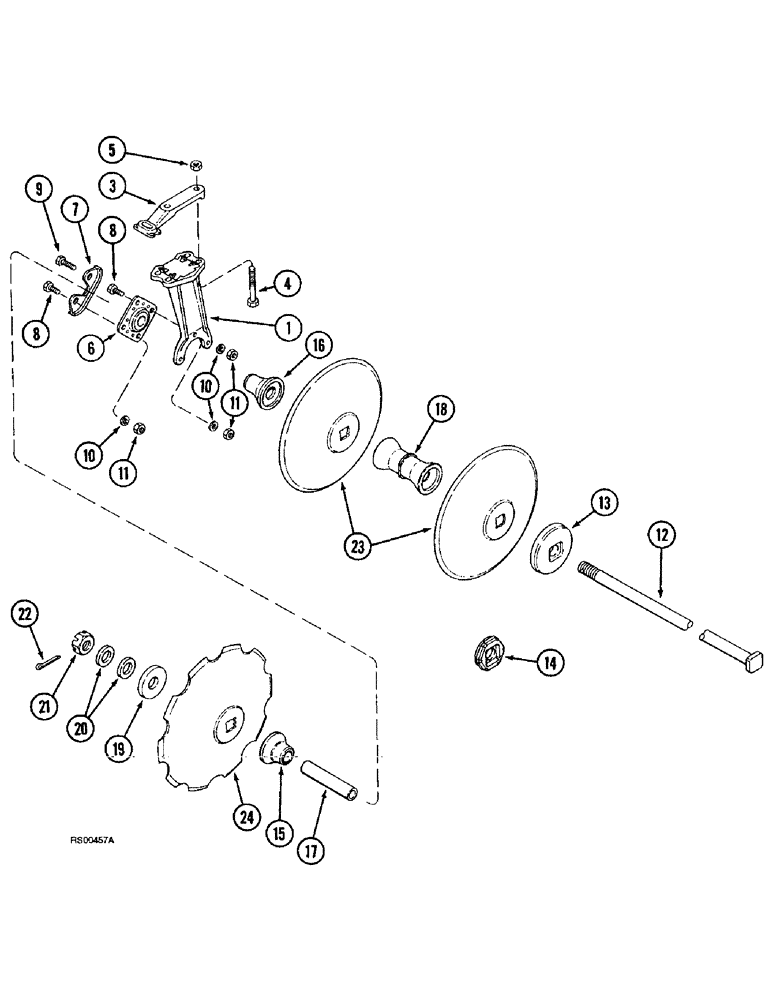

Запчасти Case IH 3800 (9-12) - RIGID DISK GANG, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

129532C2

HOLDER

SUPPORT bearing

1шт.

2

139583C5

SUPPORT

scraper angle

1шт.

4

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

BOLT hex, 3/4 NC x 5-1/4 inch

1шт.

5

231-41112

LOCK NUT,3/4"-10, GB

1шт.

6

ST491A

BALL BEARING,45mm ID

flange

1шт.

6

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

7

129753C1

BEARING COVER

bearing wear

2шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

1284113C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 762mm

arbor, 30 inch (762 mm) long, 4 blade, 9 inch spacing

1шт.

12

1284114C3

SPECIAL BOLT,Arbor, 1-1/2" - 6 x 994mm

arbor, 39-1/8 inch (994 mm) long, 5 blade, 9 inch spacing

1шт.

12

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

arbor, 48-11/32 inch (1228 mm) long, 6 blade, 9 inch spacing

1шт.

12

1263537C4

BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

arbor, 57-23/64 inch (1457 mm) long, 7 blade, 9 inch spacing

1шт.

12

1263538C4

BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

arbor, 66-1/2 inch (1689 mm) long, 8 blade 9 inch spacing

1шт.

12

1263539C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

arbor, 75-5/8 inch (1921 mm) long, 9 blade, 9 inch spacing

1шт.

12

1263541C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

arbor, 93-3/4 inch (2381 mm) long, 11 blade, 9 inch spacing

1шт.

13

1344908C1

WASHER

bumper, front inner gang only

2шт.

14

139927C1

WASHER

WASHER head

1шт.

15

101190C1

SPOOL

beaing, 3 inch long

1шт.

16

101191C1

SPOOL

bearing, 4 inch long

1шт.

17

112410C1

TUBE

BUSHING support, 9 inch long

1шт.

18

139918C1

SPACER

SPOOL, 9 inch spacing

1шт.

19

139773C1

WASHER

WASHER end

1шт.

20

1284383C1

WASHER

arbor bolt

1шт.

21

425-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2 inch NC

1шт.

22

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

1шт.

23

31390R1

DISK HARROW

solid, 559 x 4.5 mm

1шт.

23

31388R1

DISC

solid, 508 x 4.5 mm

1шт.

23

31392R1

DISK HARROW

solid, 457 x 4.5 mm

1шт.

23

31387R1

DISC

solid, 510 x 4 mm

1шт.

23

31391R1

DISK HARROW

solid, 455 x 4 mm

1шт.

24

31393R1

DISK HARROW

notched, 559 x 4.5 mm

1шт.

24

31389R1

DISK HARROW

notched, 508 x 4.5 mm

1шт.
