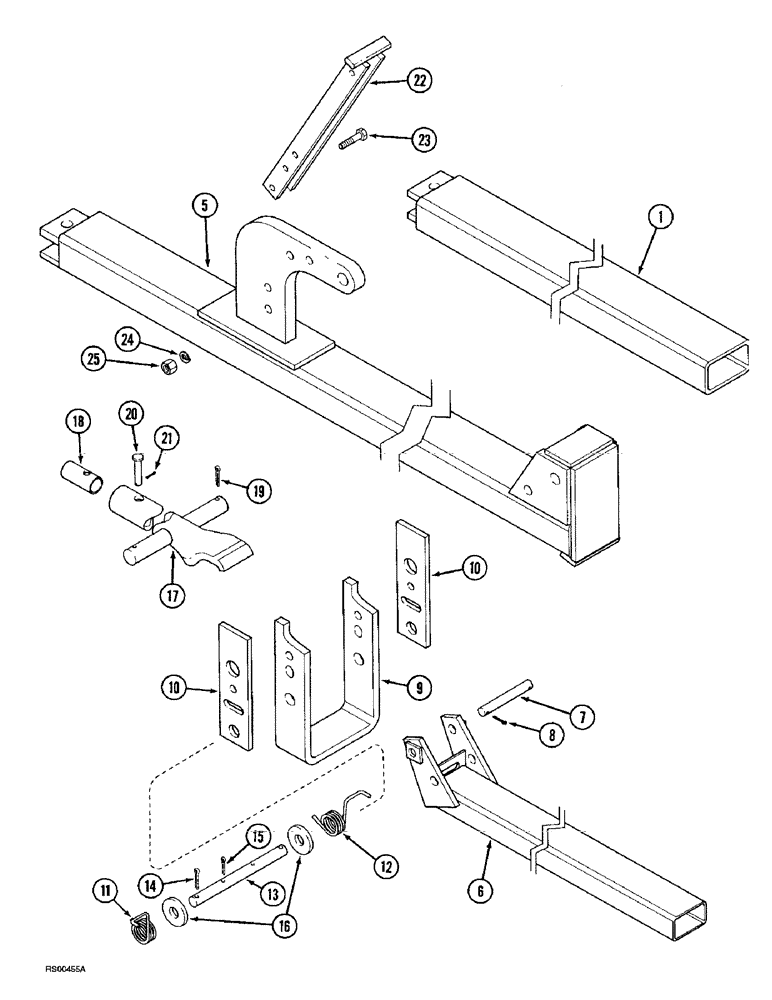

Запчасти Case IH 3800 (9-08) - GANG TUBE ASSEMBLY, NON-FOLDING HARROW, FOLDING HARROW (09) - CHASSIS/ATTACHMENTS

1

97634C1

TUBE ASSY.

FRAME gang, 56-1/8 inch (1425 mm) long (Codes A, B), non folding Harrow

4шт.

1

97634C1

TUBE ASSY.

FRAME gang, 56-1/8 inch (1425 mm) long (Codes C, D, E, F), non folding Harrow

2шт.

1

129936C2

TUBE,1626 mm Length

FRAME gang, 64 inch (1626 mm) long (Codes C, D, E, F, G, H), non folding Harrow

2шт.

1

129937C2

TUBE,1730 mm Length

FRAME gang, 68-1/8 inch (1730 mm) long (Codes G, H, I, J), non folding Harrow

2шт.

1

97635C1

TUBE ASSY.

FRAME gang, 72-7/8 inch (1850 mm) long (Codes I, J, K, L), non folding Harrow

2шт.

1

129938C2

TUBE,1965 mm Length

FRAME gang, 77-3/8 inch (1965 mm) long (Codes K, L, M, N), non folding Harrow

2шт.

1

129939C1

TUBE,2075 mm Length

FRAME gang, 81-5/8 inch (2075 mm) long (Codes O, P), non folding Harrow

4шт.

1

129939C1

TUBE,2075 mm Length

FRAME gang, 81-5/8 inch (2075 mm) long (Codes M, N), non folding Harrow

2шт.

1

129940C1

TUBE,2480 mm Length

FRAME gang, 97-5/8 inch (2480 mm) long (Codes Q, R, S, T), non folding Harrow

4шт.

5

97704C2

TUBE ASSY.

FRAME gang, 69-1/4 inch (1759 mm) long (Codes A, B, E, F, I, J, M, N), folding Harrow

2шт.

5

97706C2

TUBE ASSY.

FRAME gang, 72 inch (1828 mm) long (Codes A through N), folding Harrow

2шт.

5

97705C2

TUBE ASSY.

FRAME gang, 75-3/4 inch (1925 mm) long (Codes C, D, G, H, K, L), folding Harrow

2шт.

6

97643C1

TUBE ASSY.

FRAME gang, 33-7/8 inch (860 mm) long (Codes A, B, C, D), folding Harrow

4шт.

6

61996C2

TUBE ASSY.

FRAME gang, 39-3/8 inch (1000 mm) long (Codes E, F, G, H), folding Harrow

4шт.

6

62001C2

TUBE ASSY.

FRAME gang, 47-1/4 inch (1200 mm) long (Codes I, J, K, L), folding Harrow

4шт.

6

97538C1

TUBE ASSY.

FRAME gang, 55-1/8 inch (1400 mm) long (Codes M, N), folding Harrow

4шт.

7

62003C2

PIN

pivot, folding Harrow

4шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Folding harrow

4шт.

9

62004C1

BRACKET

lockout, folding Harrow

4шт.

10

62008C1

BAR

lockout, folding Harrow

8шт.

11

62006C1

SPRING

lockout bracket pin, left, folding Harrow

4шт.

12

62007C1

SPRING

lockout bracket pin, right, folding Harrow

4шт.

13

62005C1

PIN

lockout bracket, folding Harrow

4шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Folding harrow

8шт.

15

432-1224

COTTER PIN,3/16" x 1-1/2"

Folding harrow

8шт.

16

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch, folding Harrow

8шт.

17

62013C1

EXTENSION

cylinder, folding Harrow

4шт.

18

62016C1

TUBE,1.062" ID, 1.375" OD, 2.8" Length

filler, folding Harrow

4шт.

19

432-2032

COTTER PIN,5/16" x 2"

folding harrow 5/16" x 2"

8шт.

20

439-5838

HEADED PIN,1/2" x 2 3/8"

headed, 1/2 x 2-3/8 inch, folding Harrow

4шт.

21

432-1216

COTTER PIN,3/16" x 1"

Folding Harrow

4шт.

22

100853C1

STAND

BRACKET wing support, folding Harrow

4шт.

23

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

hex, 1/2 NC x 2-3/4 inch, grade 2, folding Harrow

8шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

Folding harrow

8шт.

25

425-108

NUT,1/2" - 13, Gr 5

Folding Harrow

8шт.
