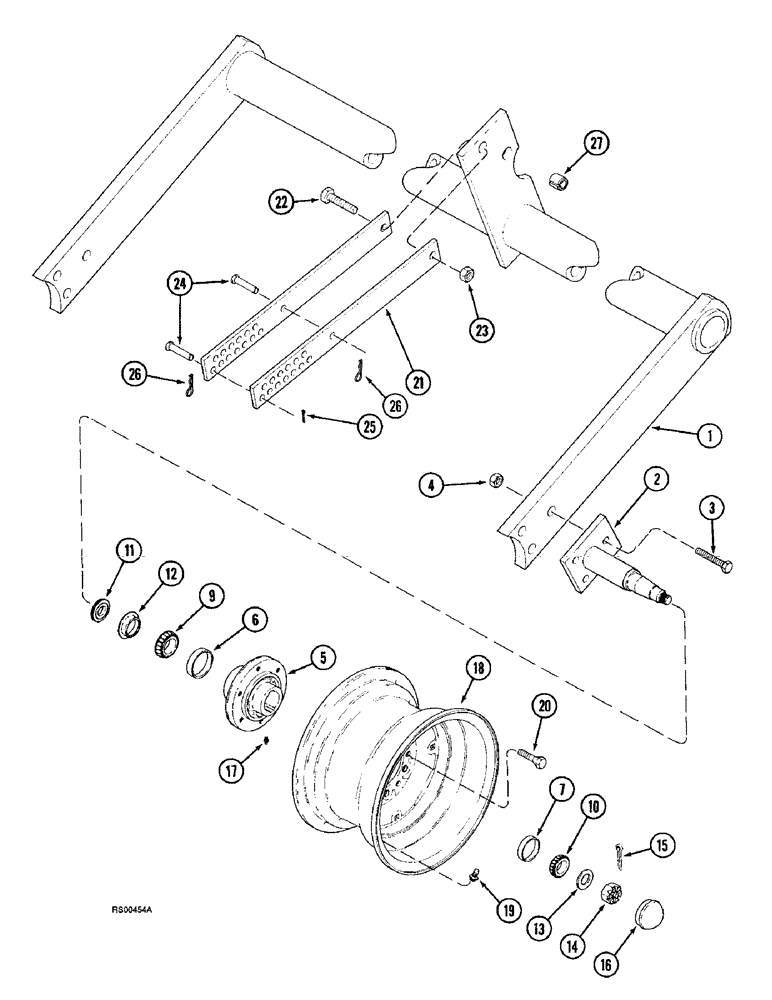

Запчасти Case IH 3800 (9-06) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

95800C2

CENTER AXLE

ASSEMBLY wheel, Includes: Ref. 27

1шт.

2

95803C1

4WD AXLE ASSY

SPINDLE wheel

1шт.

3

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

BOLT hex, 5/8 NC x 2-3/4 inch single wheel

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Dual wheel

1шт.

4

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

606468R21

HUB

ASSEMBLY wheel

1шт.

5

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY wheel

1шт.

6

663558R1

BEARING CUP

tapered roller, 2-57/64 inch OD

1шт.

Part of kit, part number 123096A1

1шт.

7

651817R1

BEARING CUP

CUP tapered roller

1шт.

Part of kit, part number 123096A1

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID

1шт.

Part of kit, part number 123096A1

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

1шт.

Part of kit, part number 123096A1

1шт.

11

606556R91

OIL SEAL

oil, with sleeve

1шт.

Part of kit, part number 123096A1

1шт.

12

606470R1

SLEEVE

Wear, oil seal

1шт.

Part of kit, part number 123096A1

1шт.

13

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened

1шт.

14

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

1шт.

15

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

16

224066C1

HUB CAP

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18

481344R91

WHEEL

14 (356) x 8 inch (203 mm)

1шт.

19

810768C1

VALVE

inflation

1шт.

20

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch

1шт.

If dealer says his hub uses studs and not bolts, check the 3950 book.

1шт.

21

95955C1

BAR

transport

2шт.

22

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

BOLT hex, 7/8 NC x 3 inch

1шт.

23

231-41114

LOCK NUT,7/8"-9, GB

hex lock, 7/8 inch NC

1шт.

24

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

headed, 3/4 x 2-1/4 inch

2шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

26

1978738C1

HAIR PIN COTTER

2шт.

27

64601C1

BUSHING

tension

1шт.

123096A1

WHEEL BEARING KIT

wheel bearing, Includes: Refs. 6, 7, and 9 through 12.

1шт.
