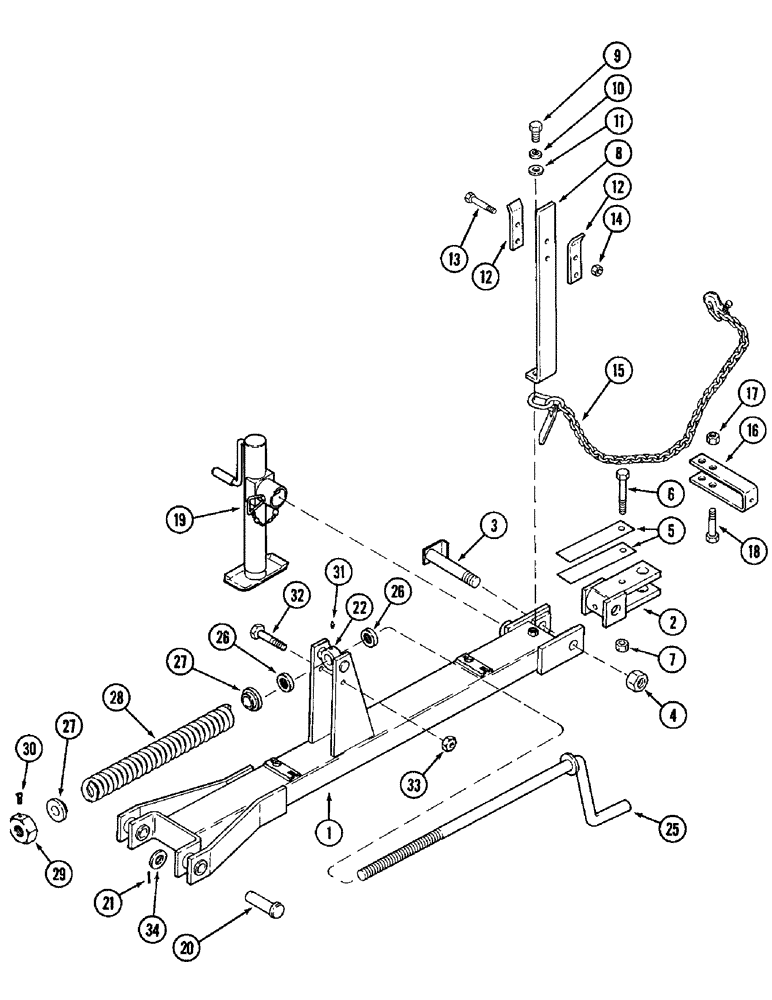

Запчасти Case IH 3800 (9-04) - HITCH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
95759C2
TRAILER HITCH
disk harrow, standard, 64-3/8 inch (1635 mm) long, Inc. 22
1шт.
1
120953A1
TRAILER HITCH
disk harrow, extended, 75-1/2 inch (1916 mm) long, Inc. 22
1шт.
2
56976C3
CLEVIS
hitch
1шт.
3
95755C1
PIN ASSY.
clevis
1шт.
4
28748R1
LOCK NUT,1 1/4"-7, G5
hex, self locking, 1-1/4 inch NC
1шт.
5
540475R1
SPRING
clevis
2шт.
6
413-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
hex, 5/8 NC x 4 inch
1шт.
7
232-41110
NUT,5/8"-11, GC
1шт.
8
58643C1
SUPPORT
hydraulic hose
1шт.
9
413-1220
BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5
BOLT hex, 3/4 NC x 1-1/4 inch
1шт.
10
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
11
495-81042
WASHER,25/32" x 1 1/2" x .120"
flat, 25/32 x 1-1/2 x 7/64 inch
1шт.
12
58644C1
HOLDER
hydraulic hose
1шт.
13
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
14
231-4118
LOCK NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
2шт.
15
700705598
CHAIN (CE)
5/16 link x 59-1/4 inch long
1шт.
16
1279163C1
CLEVIS COUPLING
CHAIN
1шт.
17
232-41110
NUT,5/8"-11, GC
1шт.
18
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
1шт.
19
119354C1
JACK
side crank (Alternate with 135061C91)
1шт.
20
439-52088
HEADED PIN,31.75mm OD x 139.7mm L
headed, 1-1/4 x 5-1/2 inch
2шт.
21
432-2032
COTTER PIN,5/16" x 2"
5/16" x 2"
2шт.
22
60134C2
TRUNNION
hitch crank
1шт.
25
96030C1
CRANK
leveling
1шт.
26
21076D
BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W
thrust
2шт.
27
60516C1
BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L
spring
2шт.
28
56973C1
SPRING
hitch crank
1шт.
29
60149C2
LOCK NUT
hex, special, 1-1/4 inch NC
1шт.
30
485-1318
SET SCREW,Sq Hd, 5/16"-18 x 1/2"
set, square head, 5/16 NC x 1/2 inch, cup point
1шт.
31
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
32
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
hex, 1/2 NC x 5 inch
1шт.
33
231-4118
LOCK NUT,1/2"-13, GB
hex, self locking, 1/2 inch NC
1шт.
34
495-21138
WASHER,1 1/4"
flat, 1-3/8 x 3 x 5/32 inch
2шт.
Выбрано товаров: 33
