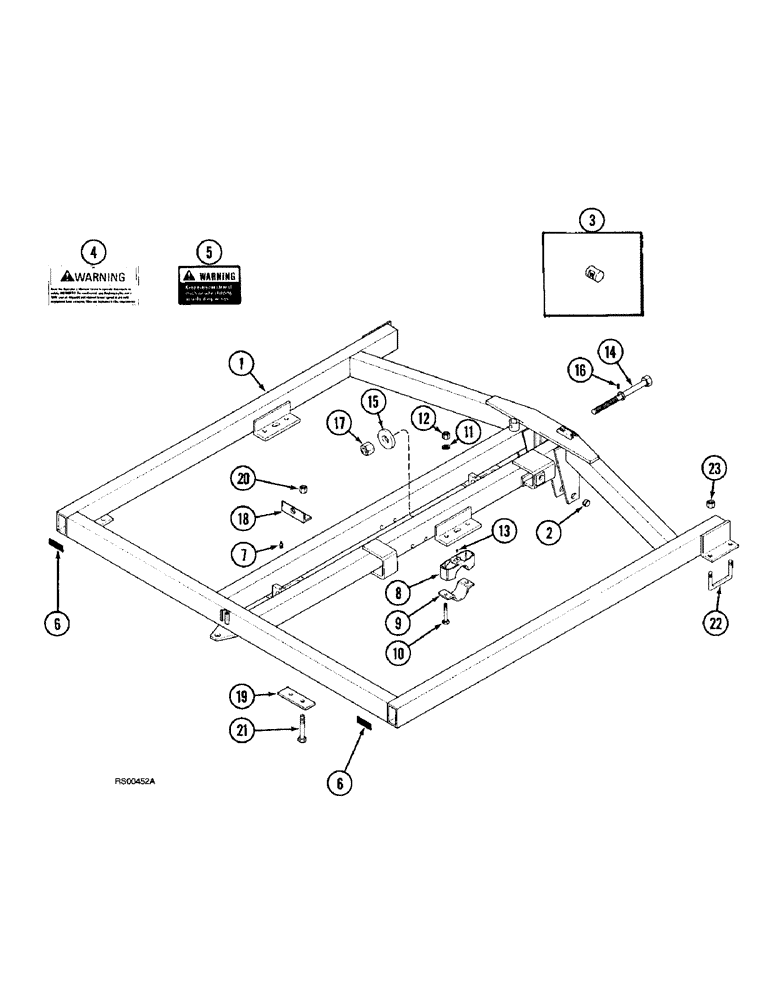

Запчасти Case IH 3800 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

1986179C3

FRAME

ASSEMBLY main

1шт.

2

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

pivot

4шт.

3

60147C2

LINK

SWIVEL crank

1шт.

4

220321A1

WARNING DECAL

warning, read the operators manual

1шт.

5

59051C2

PRODUCT GRAPHIC

DECAL warning, keep everyone clear of machine when folding or unfolding wings

1шт.

6

1284374C1

REFLECTOR,Reflector Red

red

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

1263593C1

SUPPORT

BEARING axle

3шт.

9

540979R1

BEARING CAP,3"

bearing

3шт.

10

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

6шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

12

425-1012

NUT,3/4"-10, G5

6шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

14

95857C2

ROD

gang

2шт.

15

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

flat, 1-9/32 x 2 inch x 13/64 inch

4шт.

16

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

17

1980751C1

NUT

hex, 1-1/4 inch

2шт.

18

97726C1

ANGLE

upper

2шт.

19

97725C1

PLATE

lower

2шт.

20

231-41112

LOCK NUT,3/4"-10, GB

4шт.

21

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

BOLT hex, 3/4 NC x 5-1/4 inch

4шт.

22

97763C1

U-BOLT

BOLT "U" gang mounting

4шт.

23

231-41112

LOCK NUT,3/4"-10, GB

8шт.
