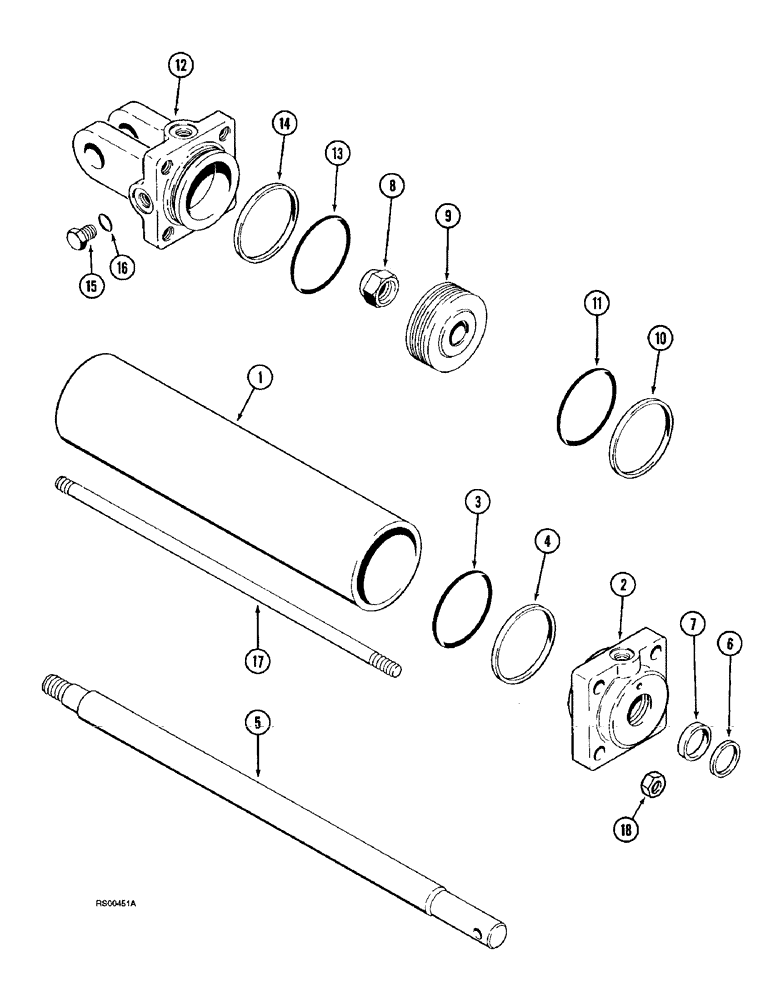

Запчасти Case IH 3800 (8-8) - HYDRAULIC FOLD CYLINDER, 3 INCH BORE X 12 INCH STROKE (08) - HYDRAULICS

1282321C91

CYLINDER

ASSEMBLY, 3 (76) ID x 12 inch (305 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272762C1

HEAD

GLAND cylinder

1шт.

3

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit 79976C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part of seal kit 79976C2

1шт.

5

1255249C1

ROD

piston

1шт.

6

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit 79976C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 79976C2

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

1шт.

9

145225C2

PISTON

cylinder

1шт.

10

387373R1

RING

SEAL piston

1шт.

Part of seal kit 79976C2

1шт.

11

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

Part of seal kit 79976C2

1шт.

12

1272761C1

HEAD

cylinder

1шт.

13

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit 79976C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part of seal kit 79976C2

1шт.

15

214389

PLUG,3/4" - 16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 79976C2

1шт.

17

1255272C1

TIE-ROD,7/16" - 14 x 425mm

BOLT tie cylinder

4шт.

18

425-107

NUT,7/16"-14, G5

Not shown

4шт.

79976C2

SEAL KIT

KIT, includes Refs. 3, 4, 6, 7, 10, 11, 13, 14 and 16

1шт.
