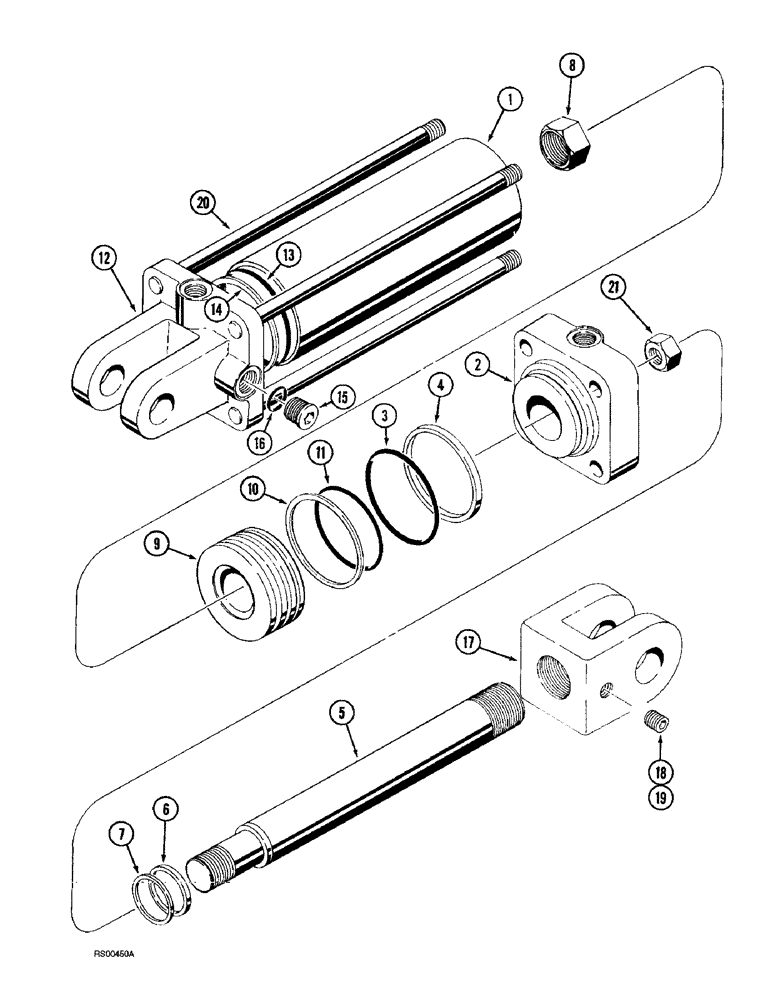

Запчасти Case IH 3800 (8-6) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH (08) - HYDRAULICS

1272147C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272826C1

HEAD

GLAND cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 ID x 3-1/2 O.D. inch, gland

1шт.

Part of seal kit 84919C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part of seal kit 84919C2

1шт.

5

145231C1

PISTON ROD

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of seal kit 84919C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of seal kit 84919C2

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

1шт.

9

145422C2

PISTON

cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, 3 ID x 3-3/16 inch inch

1шт.

Part of seal kit 84919C2

1шт.

12

1272825C1

HEAD

cylinder, two ports rear

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 ID x 3-1/2 inch O.D.

1шт.

Part of seal kit 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part of seal kit 84919C2

1шт.

15

214389

PLUG,3/4" - 16 ORB

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of seal kit 84919C2

1шт.

17

145233C1

CLEVIS,1/4" - 12

rod end

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

20

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD BOLT tie, cylinder

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

4шт.

84919C2

GASKET KIT

seal, includes Refs. 3, 4, 6, 7, 10, 11, 13, 14 and 16

1шт.
