(8-4) - HYDRAULIC FOLD SYSTEM

Запчасти Case IH 3800 (8-4) - HYDRAULIC FOLD SYSTEM (08) - HYDRAULICS

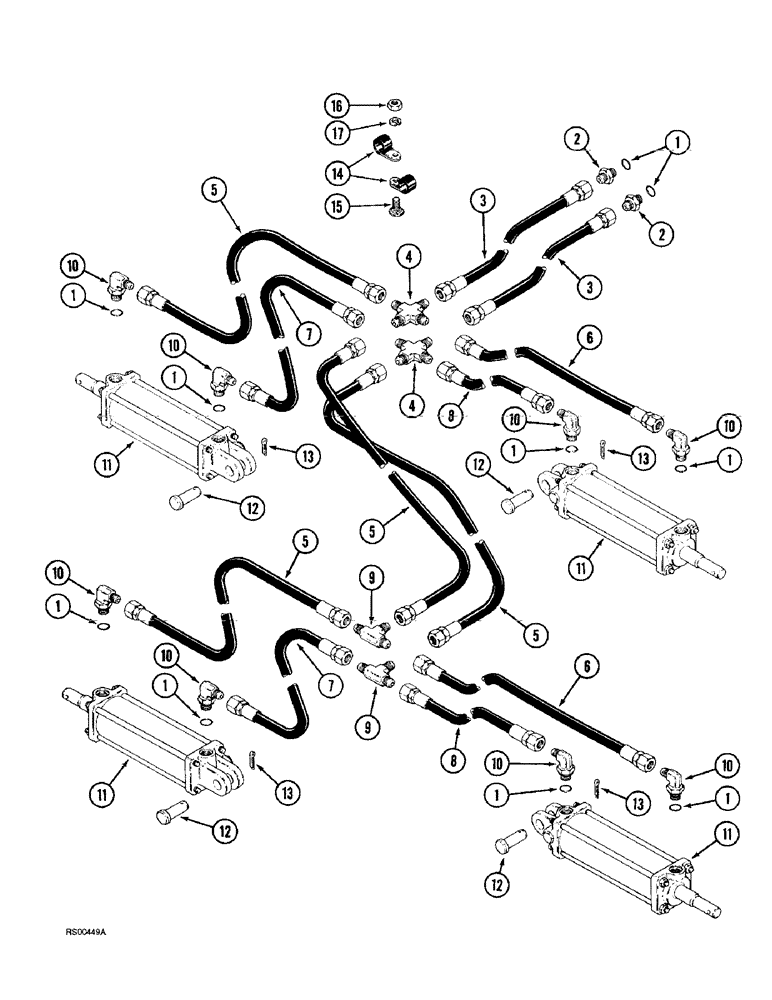

Схема запчастей Case IH 3800 - (8-4) - HYDRAULIC FOLD SYSTEM (08) - HYDRAULICS
13
13
10
8
1
1
8
5
2
15
3
5
11
4
10
11
6
1
10
1
1
1
16
1
11
2
12
4
10
10
12
10
7
14
9
1
11
1
13
9
13
17
5
12
3
10
10
7
12
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

2

1337104C1

FITTING

CONNECTOR orifice, 0.097 inch

2шт.

3

129782C2

HYDRAULIC HOSE

165 inch (4191 mm) long

2шт.

4

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

hydraulic, 9/16 - 18 flare

2шт.

5

147878C1

HOSE

65 inch (1650 mm) long

4шт.

6

129908C1

HYDRAULIC HOSE

55 inch (1397 mm) long

2шт.

7

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

2шт.

8

1254527C2

HYDRAULIC HOSE

37 inch (940 mm) long

2шт.

9

218-593

TEE,9/16"-18, 37 Degree

9/16 - 18 inch flare branch x flare x flare

2шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

8шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY hydraulic fold, see Figure 8-8

4шт.

12

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

clevis, hardened, 1 x 3-1/4 inch

4шт.

Should use a 5/32" cotter pin

1шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

6шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

16

425-106

NUT,3/8"-16, Cl 5

3шт.

17

492-11038

LOCK WASHER,3/8"

3шт.
