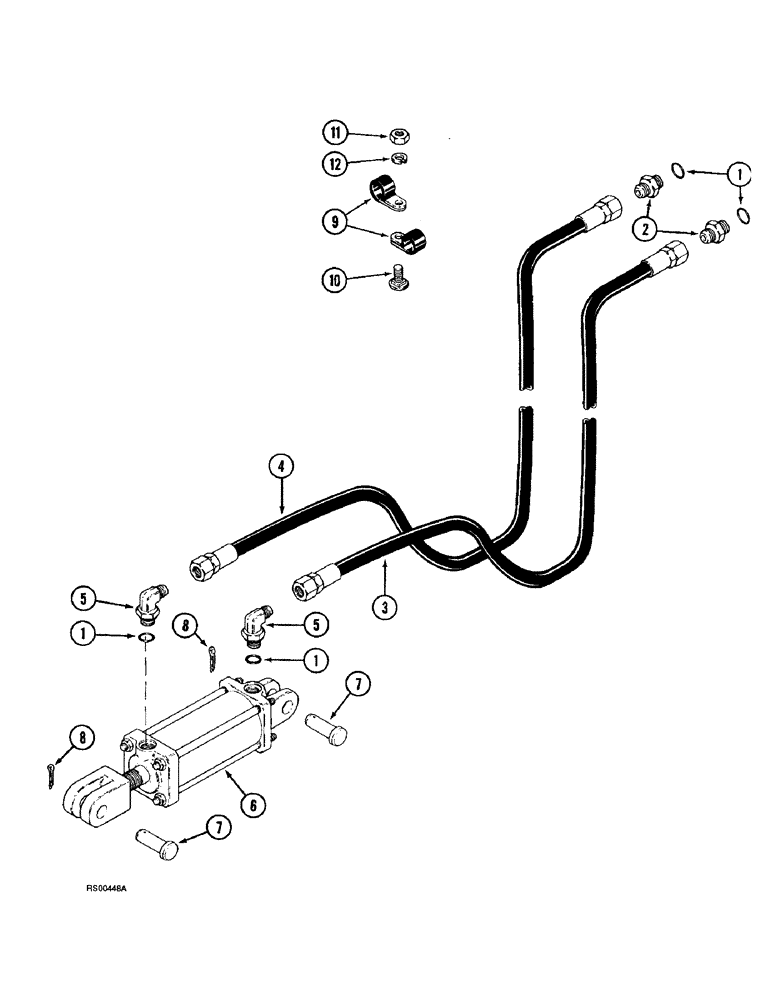

Запчасти Case IH 3800 (8-2) - HYDRAULIC TRANSPORT SYSTEM (08) - HYDRAULICS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight 9/16 - 18 flare x 3/4 - 16 inch O-ring boss

2шт.

3

129782C2

HYDRAULIC HOSE

165 inch (4191 mm) long

1шт.

4

139655C2

HYDRAULIC HOSE

155 inch (3937 mm) long

1шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

2шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY hydraulic transport (see Figure 8-6)

1шт.

7

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

clevis, hardened, 1 x 3-1/4 inch

2шт.

Should use a 5/32" cotter pin

1шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

6шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

11

425-106

NUT,3/8"-16, Cl 5

3шт.

12

492-11038

LOCK WASHER,3/8"

3шт.
