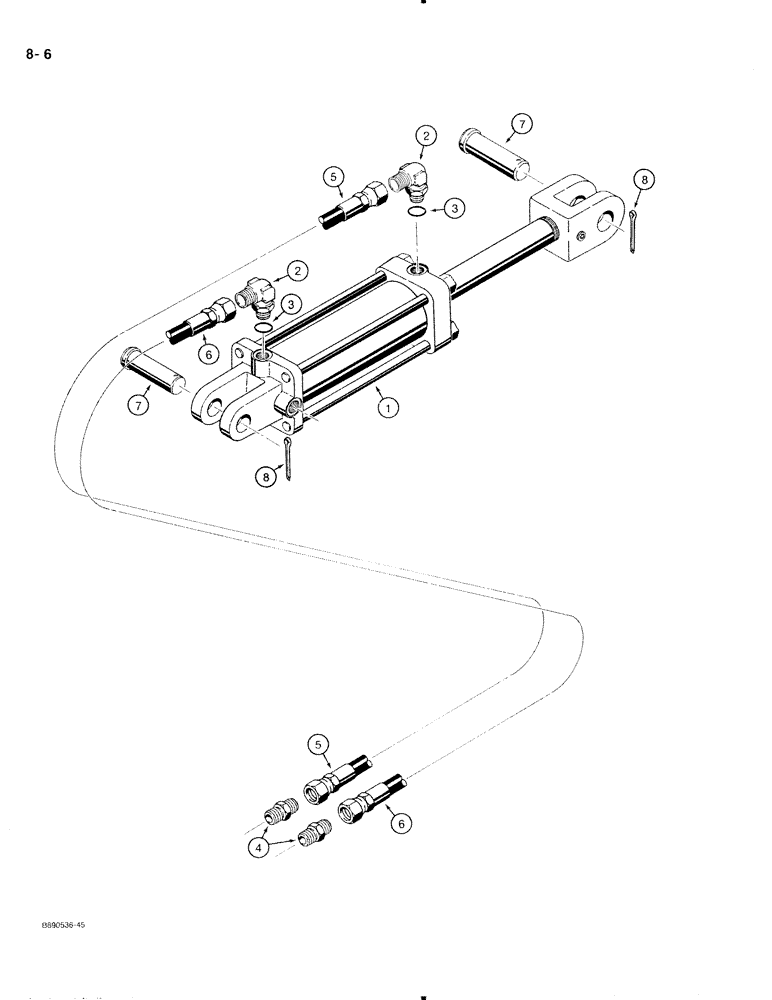

Запчасти Case IH 370 (8-06) - TRANSPORT LIFT HYDRAULIC CIRCUIT WITH 3/8 INCH ID HOSES (08) - HYDRAULICS

1

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4 inch O-ring boss ports, transport lift, Figure 8-16

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

1301350C2

HYDRAULIC HOSE

HOSE - 120 inch long, transport lift cylinder, rod end

1шт.

6

812381C2

HYDRAULIC HOSE

HOSE - 115 inch long, transport lift cylinder, closed end

1шт.

7

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

8

132-341

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.
