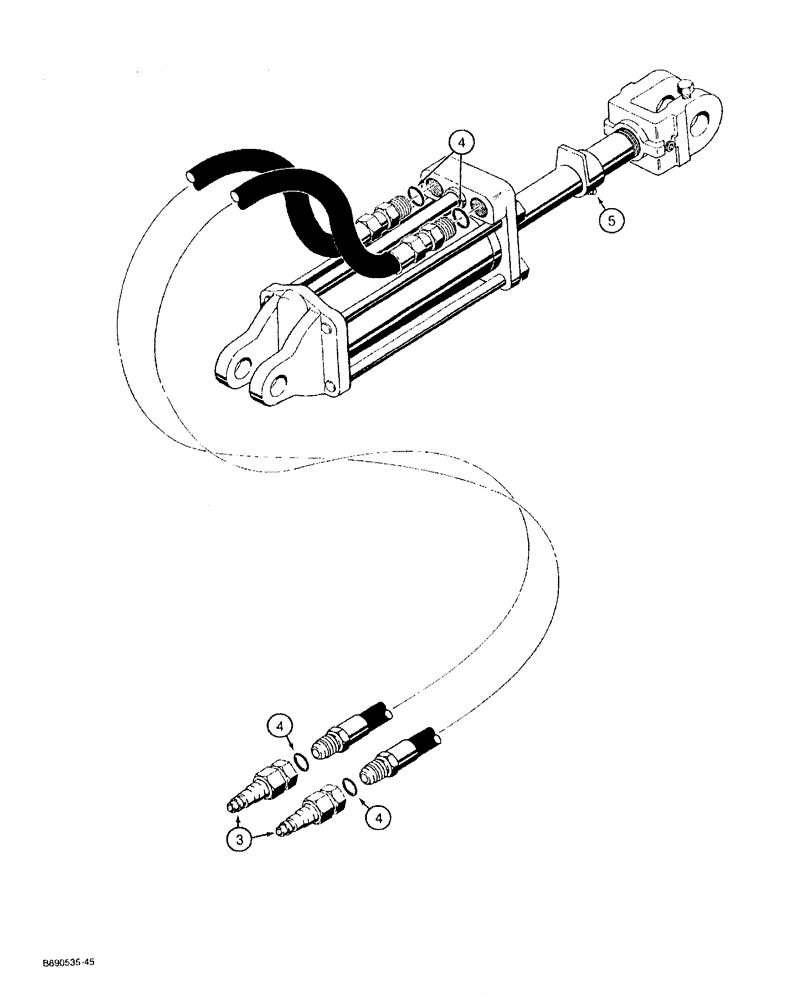

Запчасти Case IH 370 (8-04) - TRANSPORT LIFT HYDRAULIC CIRCUIT WITH 1/2 INCH ID HOSES (08) - HYDRAULICS

3

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread poppet type

1шт.

The Male Couplers and Reducers are Available to Match Female Couplers on the Tractor

1шт.

3

544787R91

COUPLING, BREAK AWAY

COUPLER - male, 7/8-14 inch thread self sealing type

1шт.

The Male Couplers and Reducers are Available to Match Female Couplers on the Tractor

1шт.

3

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread self sealing (ISO Standard)

1шт.

The Male Couplers and Reducers are Available to Match Female Couplers on the Tractor

1шт.

3

1285718C2

QUICK MALE COUPLING

COUPLER - male, 3/4-16 inch thread self sealing (ISO Standard)

1шт.

The Male Couplers and Reducers are Available to Match Female Couplers on the Tractor

1шт.

3

407045R1

FITTING

REDUCER - 3/4-16 x 7/8-14 inch thread

1шт.

3

407545R1

FITTING

REDUCER - 7/8-14 x 3/4-16 inch thread

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

643260R91

PACKAGE

STOP - 1-1/2 inch, cylinder stops

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch, cylinder stops

2шт.

5

643259R91

STOP

STOP - 3/4 inch, cylinder stops

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch, cylinder stops

2шт.

5

479849R91

PACKAGE

STOP - cylinder stops

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch, cylinder stops

2шт.

5

479850R91

PACKAGE

STOP - cylinder stops

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch, cylinder stops

2шт.
