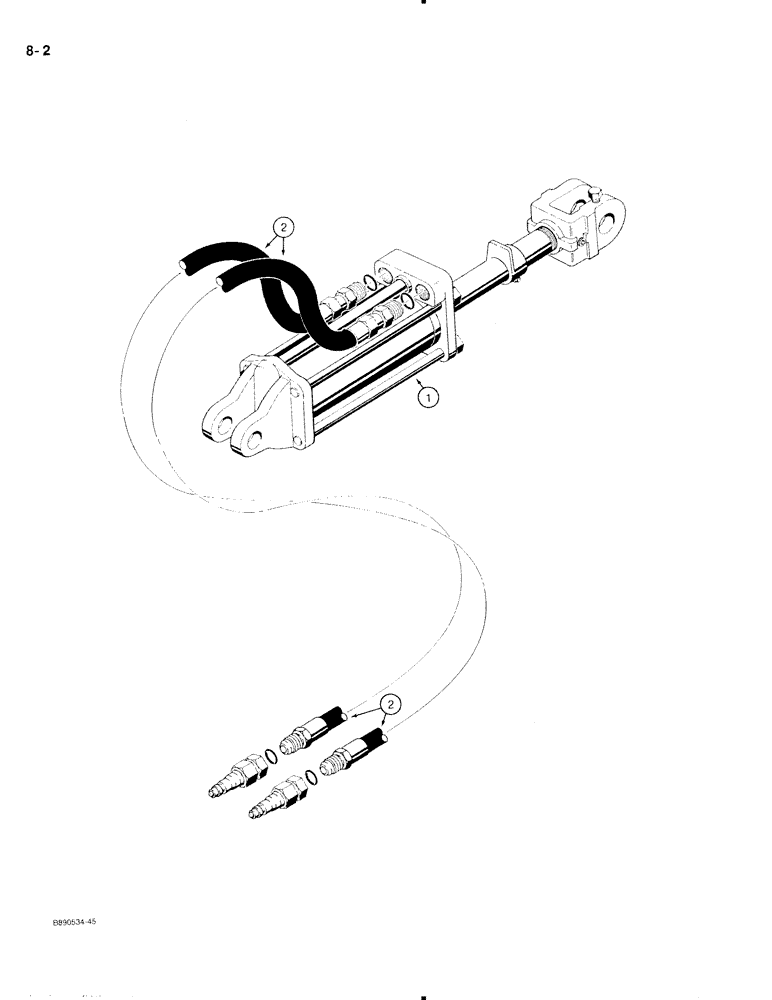

Запчасти Case IH 370 (8-02) - TRANSPORT LIFT HYDRAULIC CIRCUIT WITH 1/2 INCH ID HOSES (08) - HYDRAULICS

1

360997R95

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 1/2 inch PT ports, transport lift, Figure 8-8, no longer available, for service order 1263474C91 cylinder assembly, page 8-11, (two) 1260900C1 adapters and (two) 237-6008 O-rings

1шт.

1

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4 inch O-ring boss ports, transport lift, Figure 8-10

1шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 PT x 3/4 inch O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

1

403842R94

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 7/8 inch O-ring boss ports, transport lift, Figure 8-12, no longer available, for service order 1263474C91 cylinder assembly, page 8-11, (two) 1252129C1 adapters and (two) 237-6008 O-rings

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 7/8 female O-ring boss x 3/4 inch O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

1

61105C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 7/8 inch O-ring boss ports, transport lift, Figure 8-14, no longer available, for service order 1272147C91 cylinder assembly, page 8-11, (two) 1252129C1 adapters and (two) 237-6008 O-rings

1шт.

1

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4 inch O-ring boss ports, transport lift, Figure 8-16

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 7/8 female O-ring boss x 3/4 inch O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

2

357962R91

HOSE

- 96 inch long, transport lift, if used

2шт.

2

372437R91

HOSE

- 112 inch long, transport lift, if used

2шт.
