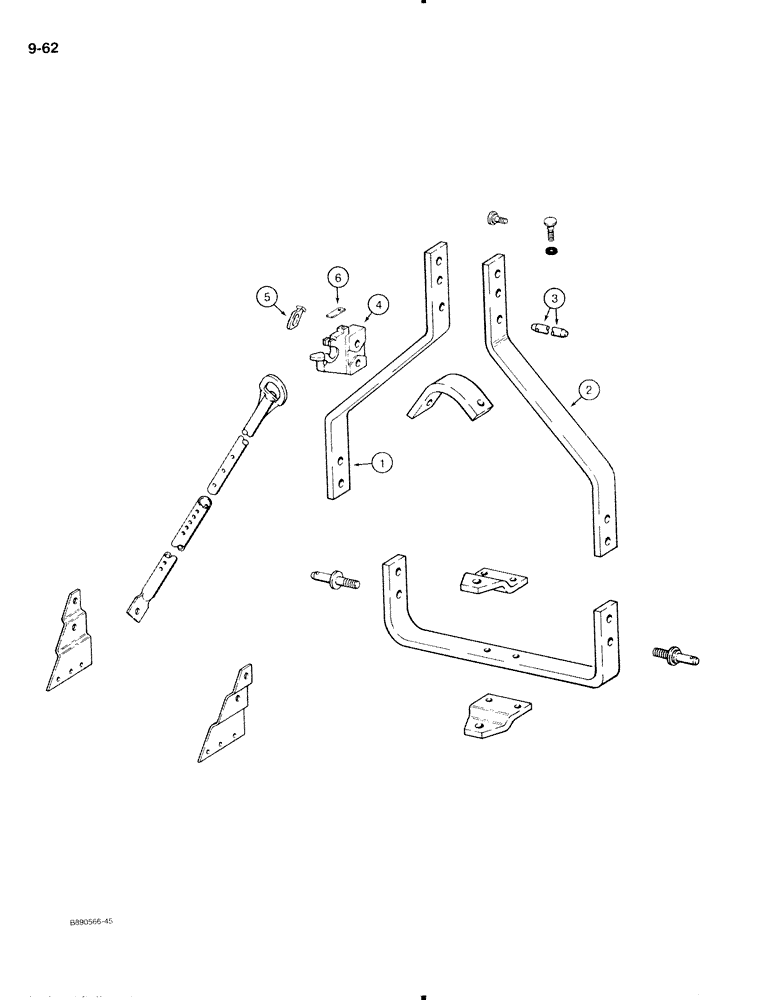

Запчасти Case IH 370 (9-62) - HITCH WEIGHT TRANSFER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

540449R1

SUPPORT - bracket, left-hand (Used with 706, 756, 806, 826, 856 or 1026 series tractors)

1шт.

1

540451R1

SUPPORT - bracket, left-hand (Used with 1206, 1256, or 1456 series tractors)

1шт.

1

540447R1

SUPPORT - bracket, left-hand (Used with 504, 544, 606, or 656 series tractors)

1шт.

1

540455R1

SUPPORT - bracket, left-hand (Used with 404, 424, or 444 series tractors)

1шт.

2

540450R1

SUPPORT - bracket, right-hand (Used with 706, 756, 806, 826, 856 or 1026 series tractors)

1шт.

2

540452R1

SUPPORT - bracket, right-hand (Used with 1206, 1256, or 1456 series tractors)

1шт.

2

540448R1

SUPPORT - bracket, right-hand (Used with 504, 544, 606, or 656 series tractors)

1шт.

2

540456R1

SUPPORT - bracket, right-hand (Used with 404, 424, or 444 series tractors)

1шт.

3

374132R1

PIN

- upper link, implement (Used with 504, 544, 606, 656, 706, 756, 806, 826, 856, or 1026 series tractors)

1шт.

3

540474R1

PIN - upper link, implement (Used with 404, 424, or 444 series tractors)

1шт.

517758R91

SPLIT PIN/SAFETY PIN

PIN - retaining, upper link pin

2шт.

4

528242R1

BLOCK - release latch

1шт.

5

528241R1

LATCH - release

1шт.

6

540435R1

SPRING - release latch

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

271827

SEAL KIT

- hex, 7/8 NC x 5 inch, if used

2шт.

271826

BEARING ASSY

- hex, 7/8 NC x 4-3/4 inch, if used

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

129-109

NUT,7/8"-9, G5

2шт.
