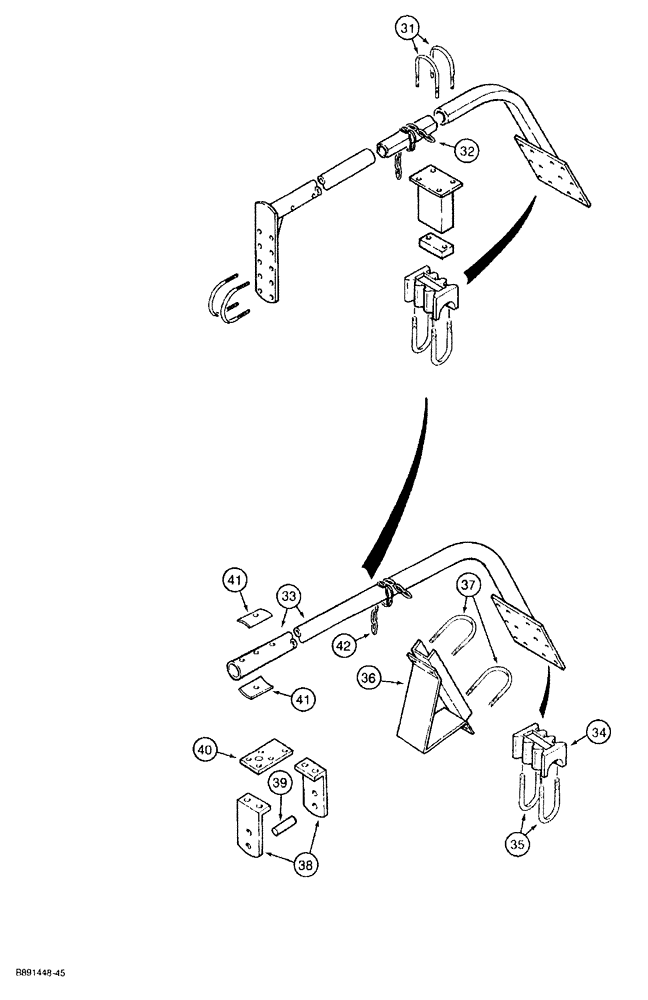

Запчасти Case IH 370 (9-58) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

31

487753R1

SPARE PART U-BOLT - arm mounting

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

425-108

NUT,1/2" - 13, Gr 5

8шт.

32

487754R1

SPARE PART CHAIN - sway, 175 links, if used

1шт.

32

487723R1

SPARE PART CHAIN - sway, 40 links, if used

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

178374R1

WASHER

WASHER - flat, 17/32 x 1-1/4 x 1/16 inch

8шт.

472144R1

NUT

NUT - hex, self-locking, 3/8 inch NC

4шт.

33

490686R1

SPARE PART ARM - mounting, one piece, carrier arm and mounting parts (disk harrows coded a, b, p, q, and r)

2шт.

34

490687R1

CLAMP

CLAMP - bar, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

4шт.

35

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - bar clamp, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

Carrier arm and mounting parts (Disk harrow coded a, b, p, q and r)

16шт.

425-108

NUT,1/2" - 13, Gr 5

Carrier arm and mounting parts (Disk harrow coded A, B, P, Q and R)

16шт.

36

490692R1

SPARE PART SUPPORT - mounting arm, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

37

490693R1

SPARE PART U-BOLT - support, carrier arm and mounting parts (disk harrows coded a, b, p, q and r)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

Carrier arm and mounting parts (Disk harrows coded a, b, p, q and r)

8шт.

425-108

NUT,1/2" - 13, Gr 5

Carrier arm and mounting parts (Disk harrows coded A, B, P, Q and R)

8шт.

38

490689R1

SPARE PART BRACKET - mounting arm, carrier arm and mounting parts (disk harrows coded a, b, p, q and r)

4шт.

39

877892R1

SPACER - bracket, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

40

490690R1

SPARE PART PLATE - mounting arm and chain, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

BOLT - hex, 7/16 NC x 1-1/2 inch, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

8шт.

25846R1

WASHER

WASHER - flat, 15/32 x 59/64 x 3/32 inch, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

8шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

8шт.

18832R1

BOLT

BOLT - hex, 5/8 NC x 6 inch, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

478684R1

SPARE PART NUT - hex, self-locking, 5/8 inch NC, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

41

490691R1

SPARE PART CLAMP - arm to plate, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

4шт.

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Carrier arm and mounting parts (Disk harrow coded a, b, p, q and r)

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

2шт.

42

490694R1

SPARE PART CHAIN - sway, 125 links, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

BOLT - hex, 3/8 NC x 1-1/2 inch, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

4шт.

178372R1

WASHER

WASHER - flat, 13/32 x 1-1/4 x 3/64 inch, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

8шт.

472144R1

NUT

NUT - hex, self-locking, 3/8 inch NC, carrier arm and mounting parts (disk harrow coded a, b, p, q and r)

4шт.
