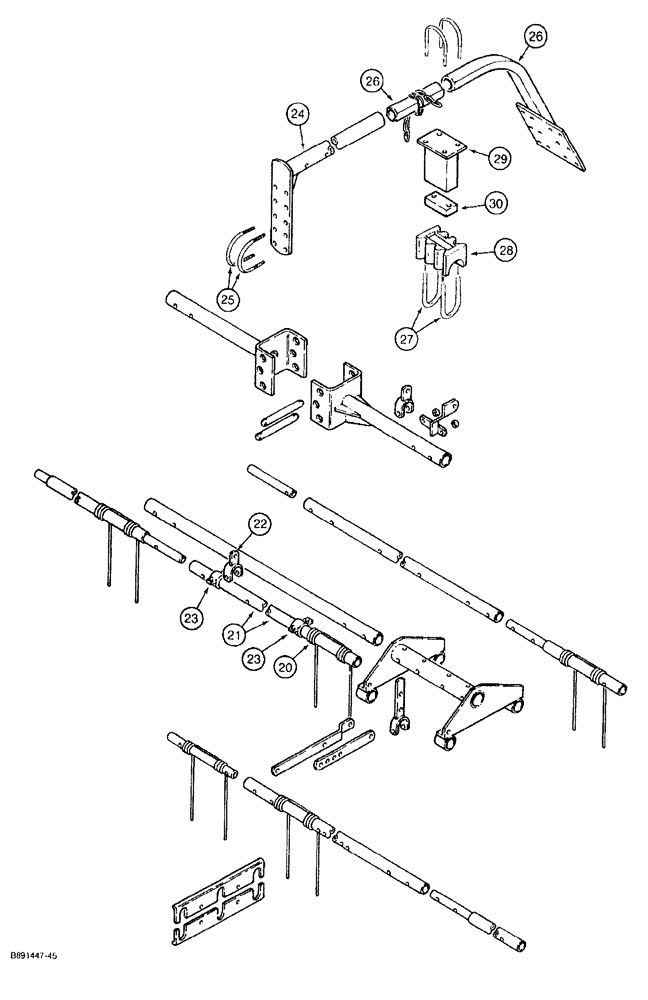

Запчасти Case IH 370 (9-56) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

20

72901C1

TOOTH

TOOTH - bar (4 used per bar 485604R1, item 21)

1шт.

20

72901C1

TOOTH

TOOTH - bar (5 used per frame 485605R1, item 21)

1шт.

20

72901C1

TOOTH

TOOTH - bar (6 used per frame 490552R1, item 21)

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

BOLT - shoulder (2 used per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)

1шт.

21

485604R1

TUBE

BAR - second tooth (Disk Harrow coded A and B)

2шт.

21

485604R1

TUBE

BAR - second tooth (Disk Harrow coded C through G, S and T)

1шт.

21

485605R1

TUBE

BAR - second tooth (Disk Harrow coded F, G and H through N)

2шт.

21

485605R1

TUBE

BAR - second tooth (Disk Harrow coded C, D, H, K and L)

1шт.

21

490552R1

TUBE

BAR - second tooth (Disk Harrow coded M, N and W)

2шт.

21

490552R1

TUBE

BAR - second tooth (Disk Harrow coded A, B, H, J, K, L, P, Q, R and V)

1шт.

137313

PIN,1/4" x 2 3/4"

3 used per bar

1шт.

22

485601R1

ARM

POST - center, second tooth (1 used per bar)

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - clevis, 7/16 x 1-1/2 inch

1шт.

120169

COTTER PIN,5/32" x 1"

1шт.

NLS

NO LONGER SERVICED

- hex, 7/16 NC x 2-3/4 inch

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

23

485603R1

BUSHING

BUSHING - center bar, second tooth (2 used per bar)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

24

487716R1

SPARE PART ARM - mounting, upper, carrier arm and mounting parts (disk harrows coded c through n, u, v and w)

2шт.

424-1060

BOLT - hex, 5/8 NC x 3-3/4 inch carrier arm and mounting parts (disk harrows coded c through n, u, v, and w)

4шт.

478684R1

SPARE PART NUT - hex, self-locking, 5/8 inch NC, carrier arm and mounting parts (disk harrows coded c through n, u, v and w)

4шт.

25

487717R1

SPARE PART U-BOLT - upper arm mounting, carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

4шт.

129-107

NUT,5/8"-11, G5

Carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

8шт.

478684R1

SPARE PART NUT - hex self-locking, 5/8 inch NC , carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

8шт.

492-11062

BEARING WASHER,5/8"

Carrier arm and mounting parts (Disk harrows coded c through n, u, v and w)

16шт.

26

487718R1

SPARE PART ARM - mounting, lower, carrier arm and mounting parts (disk harrows coded c through n, u, v and w)

2шт.

27

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT - lower arm mounting, carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

Carrier arm and mounting parts (Disk harrow coded c through n, u, v and w)

16шт.

425-108

NUT,1/2" - 13, Gr 5

Carrier arm and mounting parts (Disk harrow coded C through N, U, V and W)

16шт.

28

490687R1

CLAMP

CLAMP - bar, carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

4шт.

29

487721R1

SPARE PART BRACKET - mounting, rubber pad, carrier arm and mounting parts ( disk harrow coded c through n, u, v and w)

2шт.

30

487722R1

SPARE PART PAD - rubber, carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

BOLT - carriage, 5/16 NC x 1-3/4 inch, carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Carrier arm and mounting parts (Disk harrow coded C through N, U, V and W)

4шт.

9635082

NUT,5/16" - 18, Gr 5

Carrier arm and mounting parts (disk harrow coded c through n, u, v and w)

4шт.
