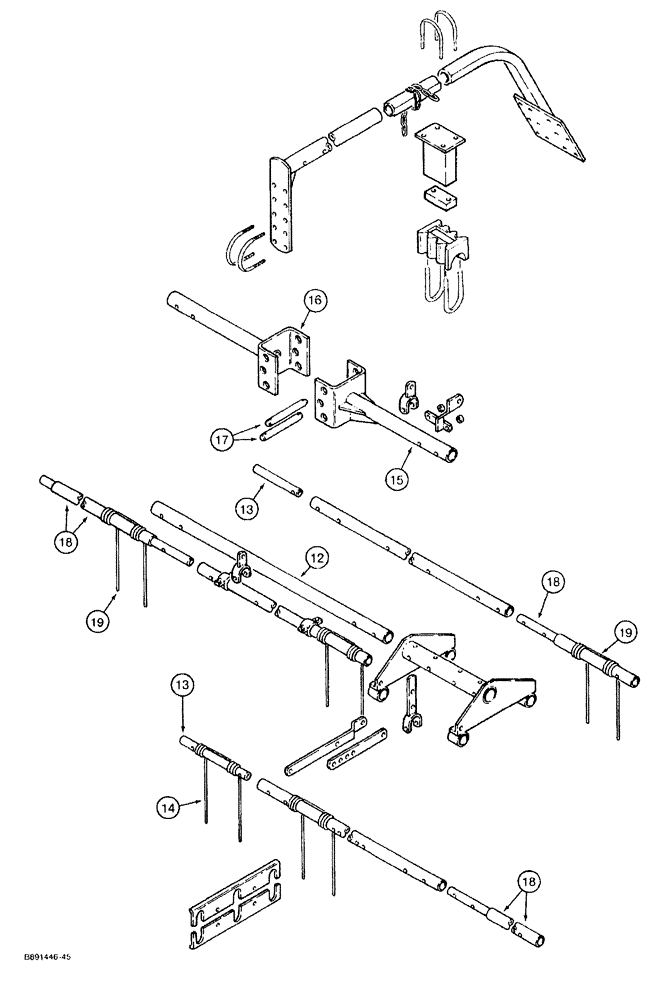

Запчасти Case IH 370 (9-54) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

12

548393R1

TUBE

SPARE PART TUBE - spanner, short (Disk Harrow coded C through N, U, V and W)

1шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

13

487726R1

TUBE

CONNECTOR - tooth bar (Disk Harrow coded C through N, U, V and W)

2шт.

14

72901C1

TOOTH

TOOTH - connector bar (Disk Harrow coded C through N, U, V and W)

2шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

BOLT - shoulder

4шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

15

487729R1

SPARE PART HINGE - outside (Disk Harrow coded C through N and S through W)

1шт.

16

487727R1

SUPPORT

SPARE PART HINGE - inside (Disk Harrow coded C through N and S through W)

1шт.

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

129-108

NUT,3/4"-10, G5

1шт.

17

487728R1

SPARE PART PIN - hinge (Disk Harrow coded C through N and S through W)

2шт.

668752R1

WASHER

WASHER - flat, 29/32 x 1-1/4 x 1/16 inch

2шт.

132-154

COTTER PIN,1/4" x 2"

PIN - cotter, 1/4 x 1-3/4 inch

2шт.

520177R11

PIN

PIN - hair

2шт.

18

487777R1

TUBE

BAR - tooth extension (Disk Harrow coded A, B, P, Q and R)

4шт.

19

485613R1

TOOTH

SPARE PART TOOTH - extension bar

4шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

BOLT - shoulder (2 used per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)

1шт.
