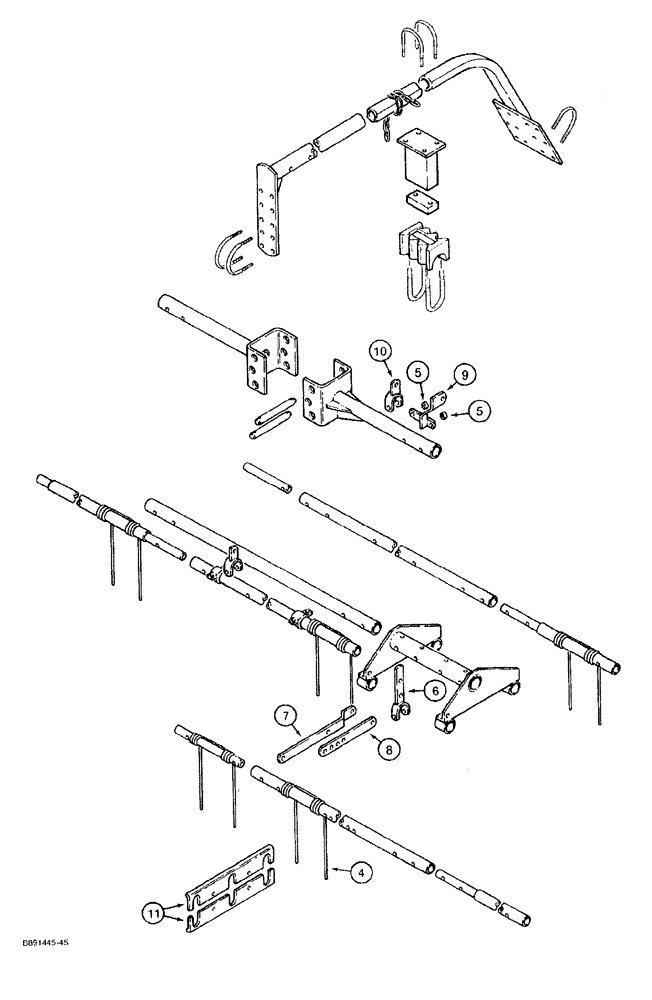

Запчасти Case IH 370 (9-52) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

4

72901C1

TOOTH

TOOTH - first and third bar (Used with 485615R2 frame, item 1 on Figure 9-50)

8шт.

4

72901C1

TOOTH

TOOTH - first and third bar (Used with 485616R2 frame, item 1 on Figure 9-50)

10шт.

4

72901C1

TOOTH

TOOTH - first and third bar (Used with 490549R1 frame, item 1 on Figure 9-50)

12шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

BOLT - shoulder (2 used per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)

1шт.

5

485591R1

SPACER

BUSHING - tooth (Used with 42 inch mulcher section)

2шт.

6

485592R1

ARM

HANDLE - bar (1 used per frame)

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

BOLT - hex, 7/16 NC x 2-3/4 inch

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

2шт.

7

485593R1

SUPPORT

EXTENSION - handle, long (1 used per handle)

1шт.

8

485594R1

BAR

EXTENSION - handle, short (1 used per handle)

1шт.

21685R1

RIVET,Tr Hd, 3/8" x 1"

PIN - clevis, 7/16 x 1 inch

4шт.

25846R1

WASHER

WASHER - flat, 15/32 x 59/64 x 3/32 inch

3шт.

120169

COTTER PIN,5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

1шт.

9

485595R1

SUPPORT

POST - front (Used with 42 inch mulcher section)

2шт.

10

485601R1

ARM

POST - front (1 used per frame)

1шт.

11

485598R1

SUPPORT

RAIL - center (2 used per post)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
