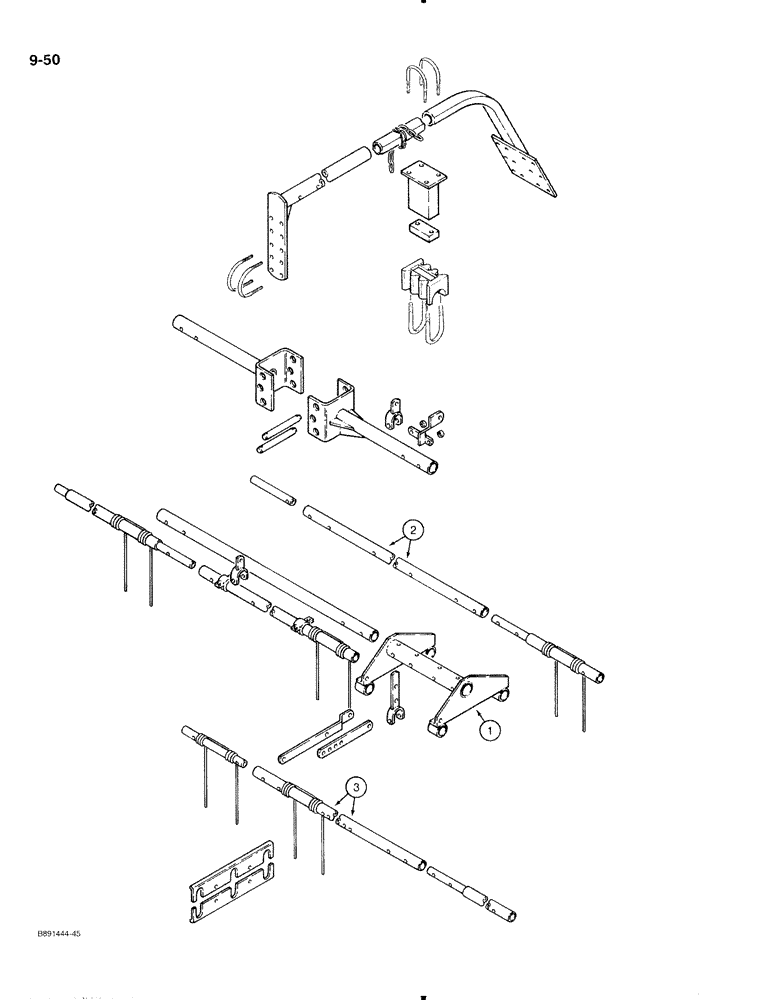

Запчасти Case IH 370 (9-50) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

1

485615R2

FRAME

- tooth bar, 30 inches wide (Disk Harrow coded A and B)

2шт.

1

485615R2

FRAME

- tooth bar, 30 inches wide (Disk Harrow coded E)

1шт.

1

485615R2

FRAME

- tooth bar, 30 inches wide (Disk Harrow coded C, D, F and G)

1шт.

1

485615R2

FRAME

- tooth bar, 30 inches wide (Disk Harrow coded S and T)

1шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide (Disk Harrow coded C and D)

1шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide (Disk Harrow coded F and G)

2шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide (Disk Harrow coded E)

1шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide (Disk Harrow coded H through N)

2шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide (Disk Harrow coded H, K and L)

1шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded A and B)

1шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded H, K and L)

1шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded J)

1шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded M)

2шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded N)

2шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded P, Q, R and V)

1шт.

1

490549R1

FRAME

- tooth bar, 60 inches wide (Disk Harrow coded W)

2шт.

2

485596R1

TUBE

BAR - first tooth (Used with 485615R2 frame, item 1)

1шт.

2

485599R1

TUBE

BAR - first tooth (Used with 485616R2 frame, item 1)

1шт.

2

490550R1

TUBE

BAR - first tooth (Used with 490549R1 frame, item 1)

1шт.

3

485597R1

TUBE

BAR - third tooth (Used with 485615R2 frame, item 1)

1шт.

3

485600R1

TUBE

BAR - third tooth (Used with 485616R2 frame, item 1)

1шт.

3

490551R1

TUBE

BAR - third tooth (Used with 490549R1 frame, item 1)

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 4 used per bar 1/4" x 2 3/4"

1шт.
