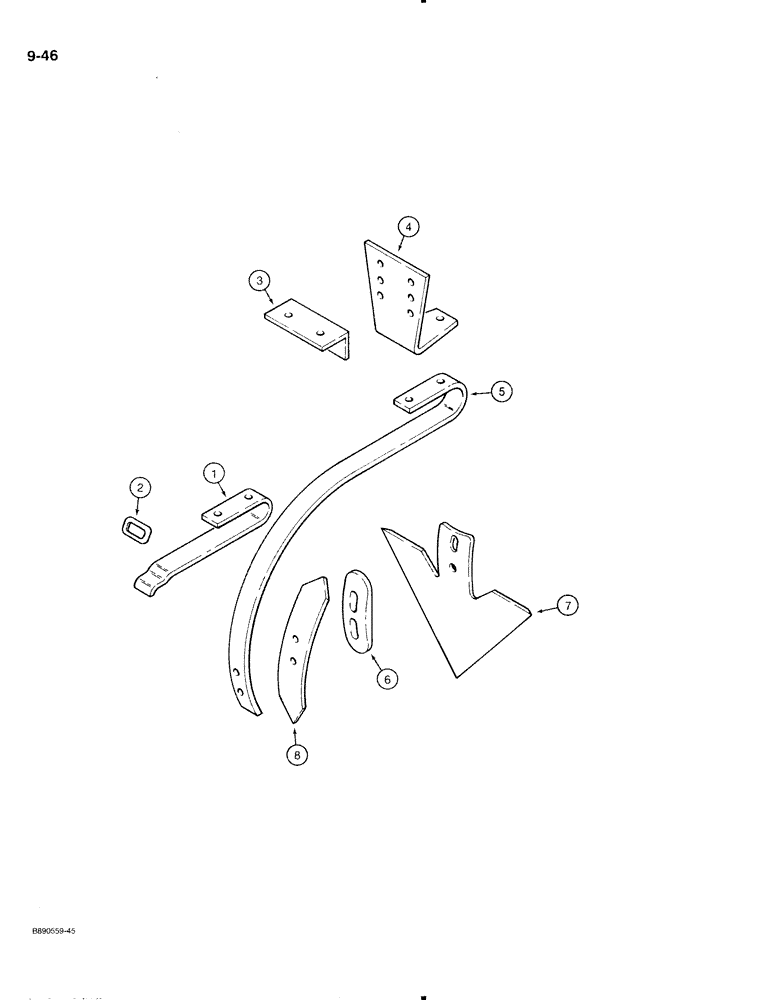

Запчасти Case IH 370 (9-46) - CENTER SHANK ATTACHMENT STANDARD BOLT RETAINED SUPPORT BRACKET (09) - CHASSIS/ATTACHMENTS

1

14032

REINFORCEMENT

BRACKET - reinforcement, shank

1шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

- hex, 7/16 NC x 1-3/4 inch, 2 used per bracket

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , 2 used per bracket 7/16"

1шт.

271501

SOCKET

NUT - hex, 7/16 inch NC, 2 used per bracket

1шт.

2

P4163

LINK

KEEPER - reinforcement bracket

1шт.

3

466947R1

ANGLE

BRACKET - support mounting

1шт.

4

466946R1

SUPPORT - shank

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch, 2 used per support

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch, 2 used per support

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 used per support 5/8"

1шт.

129-107

NUT,5/8"-11, G5

4 used per support 5/8"-11, G5

1шт.

5

PA24783

SPRING

SHANK - center

1шт.

6

466868R1

WEDGE

- sweep adjusting

1шт.

7

479005R2

SWEEP

- 6 inch, universal

1шт.

25548BA

BOLT - plow, 7/16 NC x 1-1/2, 1 used per sweep

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT - carriage, 7/16 NC x 1-1/2, 1 used per sweep

1шт.

NLS

NO LONGER SERVICED

NUT - hex, 7/16 inch NC, 2 used per sweep

1шт.

8

5886

POINT

- reversible chisel

1шт.

21195R1

BOLT

- plow, 3/8 NC x 1-1/8, 2 used per point

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 2 used per point 3/8"-16, G5

1шт.
