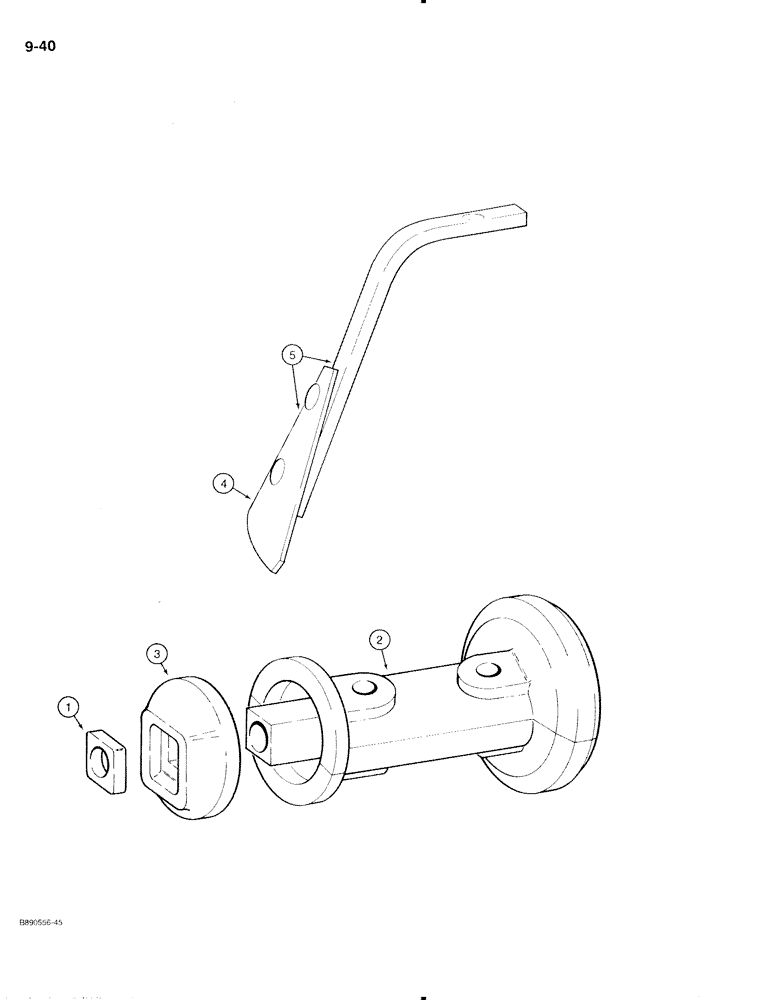

Запчасти Case IH 370 (9-40) - FURROW FILLER AND FURROW FILLER DISK SCRAPER (09) - CHASSIS/ATTACHMENTS

1

466986R1

BLOCK

SPACER - arbor bolt head washer

2шт.

2

482970R2

SPOOL

- furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

- hex, 3/4 NC x 2-1/2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

3

P4165A

WASHER

- arbor bolt head

2шт.

4

465062R1

BLADE

- scraper, standard

2шт.

4

540465R1

BLADE - scraper, heavy duty

2шт.

Heavy duty scrapers are packaged in quantities of five and are used as required.

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

- truss head, 3/8 x 1

4шт.

5

465060R92

SCRAPER

- left-hand

1шт.

5

465061R92

SCRAPER

- right-hand

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
