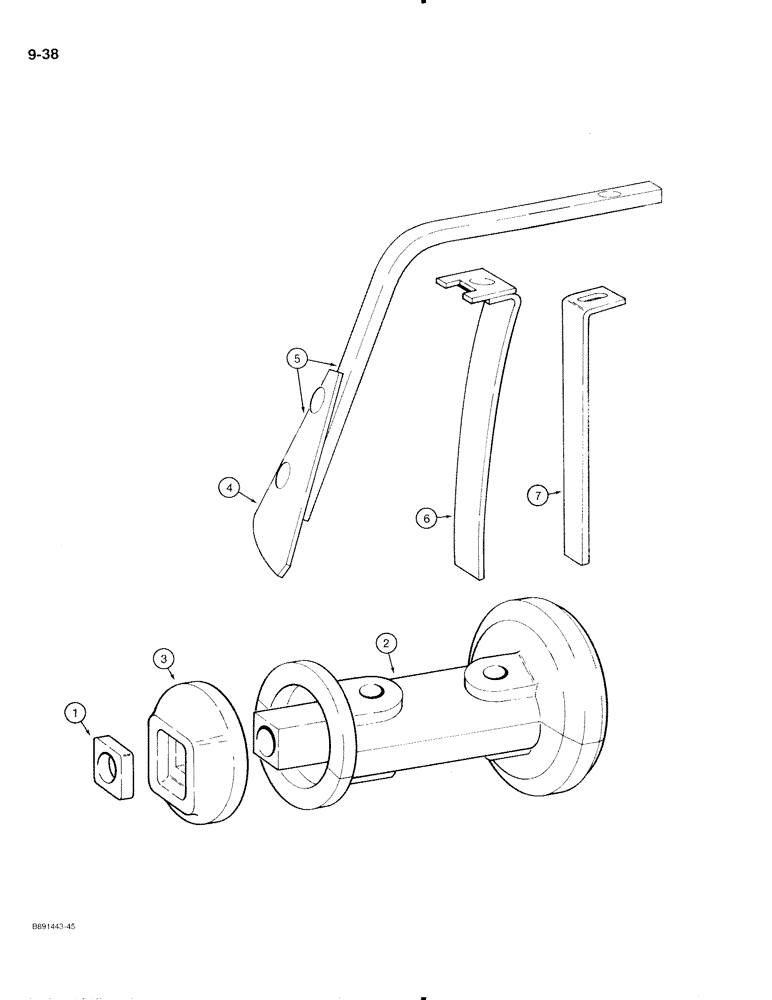

Запчасти Case IH 370 (9-38) - DISK BACK SCRAPER, FURROW FILLER AND FURROW FILLER DISK SCRAPER (09) - CHASSIS/ATTACHMENTS

1

466986R1

BLOCK

SPACER - arbor bolt head washer

2шт.

2

482970R2

SPOOL

- furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

- hex, 3/4 NC x 2-1/2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

3

P4165A

WASHER

- arbor bolt head

2шт.

4

465062R1

BLADE

- scraper, standard

2шт.

106931

RIVET - truss head, 3/8 x 1-1/8 inch

4шт.

5

466952R91

BLADE

SCRAPER - left-hand filler disk, inner surface

1шт.

5

466953R91

BLADE

SCRAPER - right-hand filler disk, inner surface

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

466956R11

SCRAPER - left-hand filler disk, outer surface

1шт.

6

466957R11

SCRAPER - right-hand filler disk, outer surface

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

652390R11

BAR - trash, left-hand disk

1шт.

7

652391R11

BAR - trash, right-hand disk

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
