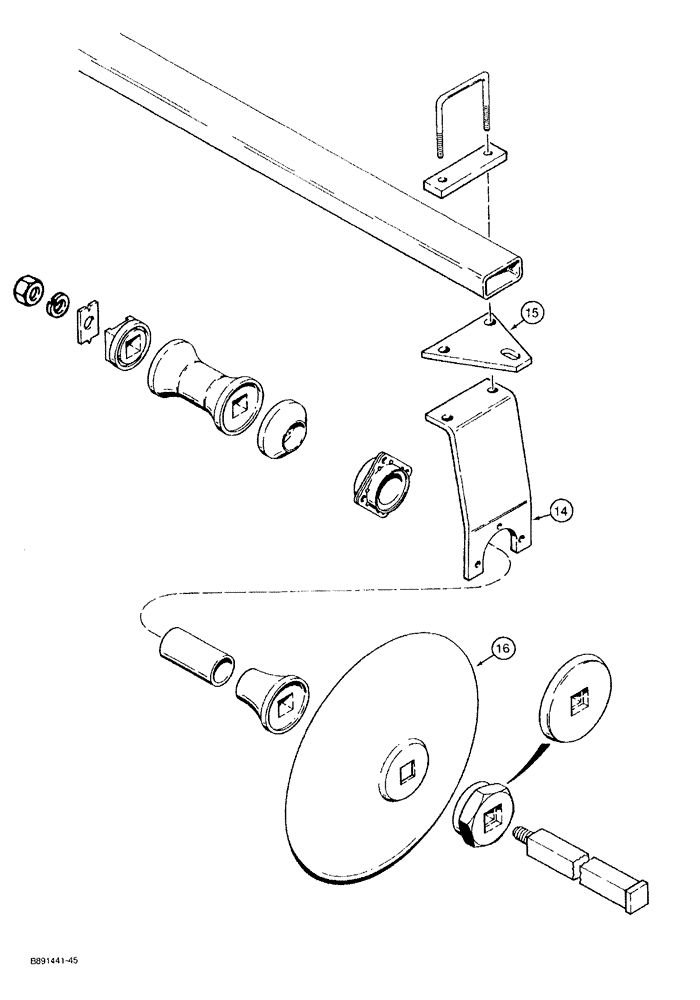

Запчасти Case IH 370 (9-34) - FRONT AND REAR GANGS AND GANG BARS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
14
485751R1
SUPPORT ASSY.
BRACKET - inside bearing of front gangs (Disk Harrow coded P, R, T, U, V and W)
2шт.
14
543102R1
SUPPORT ASSY.
BRACKET - inside bearing of front gangs (Disk Harrow coded B, E, J, M, Q and S)
2шт.
14
485750R1
SUPPORT ASSY.
BRACKET - inside bearing of front gangs (Disk Harrow coded A, C, D, F, G, H, K, L and N)
2шт.
15
478835R1
SPARE PART PLATE - at bearing bracket (Disk Harrow with 7 inch spacing)
2шт.
15
543103R1
STRIP
PLATE - at bearing bracket (Disk Harrow with 7-1/2 inch spacing)
2шт.
15
478837R1
BAR
PLATE - at bearing bracket (Disk Harrow with 9 inch spacing)
2шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
31020R1
DISK HARROW
BLADE - 16 inch x 0.118 inch (3 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
31021R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded B and P)
24шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded Q)
26шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded R)
30шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded H and V)
40шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded L and W)
44шт.
16
31022R1
DISC
BLADE - 16 inch x 0.118 inch (3 mm) thick, notched disk, if used (Disk Harrow coded N)
48шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded B and P)
24шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded Q)
26шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded R)
30шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded H and V)
40шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded L and W)
44шт.
16
31023R1
DISC
BLADE - 18 inch x 0.138 inch (3.5 mm) thick, notched disk, if used (Disk Harrow coded N)
48шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
472217R1
DISK HARROW
BLADE - 20 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
482973R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded B and P)
24шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded Q)
26шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded R)
30шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded H and V)
40шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded L and W)
44шт.
16
482974R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded N)
48шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
482986R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded B and P)
24шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded Q)
26шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded R)
30шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded H and V)
40шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded L and W)
44шт.
16
482987R2
DISK HARROW
BLADE - 18 inch x 0.157 inch (4 mm) thick, notched disk, if used (Disk Harrow coded N)
48шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded B and P)
24шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded Q)
26шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded R)
30шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded H and V)
40шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded L and W)
44шт.
16
651197R1
DISK HARROW
BLADE - 16 inch x 0.138 inch (3.5 mm) thick, solid disk, if used (Disk Harrow coded N)
48шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded B and P)
24шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded Q)
26шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded A, D, E and R)
28шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded R)
30шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded C, G, J and T)
32шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded F, K, M, and U)
36шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded H and V)
40шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded L and W)
44шт.
16
489241R1
DISC
BLADE - 20 inch x 0.177 inch (4.5 mm) thick, notched disk, if used (Disk Harrow coded N)
48шт.
Выбрано товаров: 105
