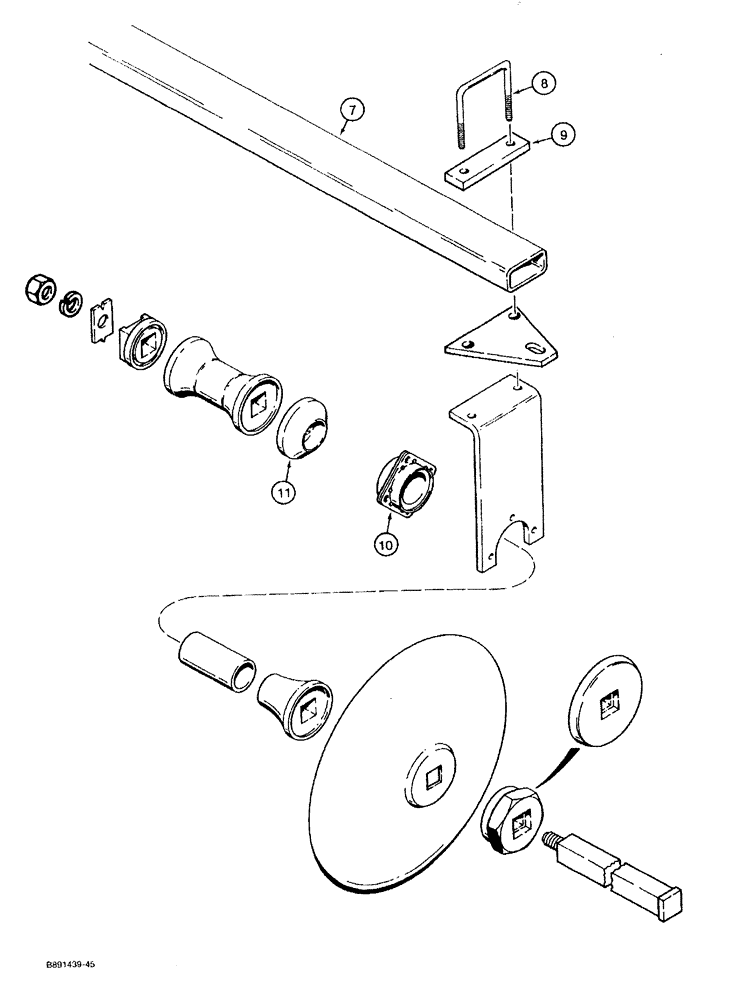

Запчасти Case IH 370 (9-30) - FRONT AND REAR GANGS AND GANG BARS (09) - CHASSIS/ATTACHMENTS

7

653724R93

SPARE PART BAR - rear gang (Disk Harrow coded A, B, P, Q and T)

2шт.

7

653724R93

SPARE PART BAR - rear gang (Disk Harrow coded R)

4шт.

7

653725R93

SPARE PART BAR - rear gang (Disk Harrow coded C, E, S and T)

2шт.

7

653726R93

SPARE PART BAR - rear gang (Disk Harrow coded D, G and F)

2шт.

7

653727R94

BAR

BAR - rear gang (Disk Harrow coded U)

2шт.

7

470968R93

SPARE PART BAR - rear gang (Disk Harrow coded V)

2шт.

7

653729R92

SPARE PART BAR - rear gang (Disk Harrow coded N)

2шт.

7

653730R93

SPARE PART BAR - rear gang (Disk Harrow coded H through M)

2шт.

7

470970R93

TUBE

BAR - rear gang (Disk Harrow coded N with 80 inch axle and Disk Harrow coded W)

2шт.

8

652356R3

BOLT,Wheel, 3/4" - 10 x 4 13/32"

U-BOLT - bearing bracket, if used, see item 9 (2 used per gang)

1шт.

8

652356R3

BOLT,Wheel, 3/4" - 10 x 4 13/32"

U-BOLT - bearing bracket, if used, see item 9 (3 used on units with third bearing attachment)

1шт.

9

139599C1

BAR

BAR - bearing bracket, if used, see item 8 (2 used per gang)

1шт.

9

139599C1

BAR

BAR - bearing bracket, if used, see item 8 (3 used on units with third bearing attachment)

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

BOLT - hex, 3/4 NC x 5 inch, used with item 9 only (2 used per bearing bracket bar) , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

(2 used per bearing bracket bar or U-bolt)

1шт.

280954

NUT,3/4"-10, G5

(2 used per bearing bracket bar or U-bolt)

1шт.

10

ST491A

BALL BEARING,45mm ID

BEARING - ball, with grease fitting (2 used per gang)

1шт.

10

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

10

ST491A

BALL BEARING,45mm ID

BEARING - ball, with grease fitting (3 used on units with third bearing attachment)

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

BOLT - hex, 1/2 x 1-1/2 inch (3 used per ball bearing)

1шт.

25710R1

WASHER

WASHER - flat, 17/32 x 1-1/16 x 5/64 inch (3 used per ball bearing)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

(3 used per ball bearing)

1шт.

425-108

NUT,1/2" - 13, Gr 5

(3 used per ball bearing)

1шт.

11

472592R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded D, G, Q and S)

4шт.

11

472592R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded K)

6шт.

11

472592R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded A C, F, P, R, T and U)

8шт.

11

472592R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded F with third bearing attachment)

10шт.

11

472592R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded H, L, N, V and W)

12шт.

11

472593R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded B and E)

8шт.

11

472593R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded J and M)

12шт.

11

472593R3

SPOOL

SPOOL - bearing, short (Disk Harrow coded Q and S)

4шт.
