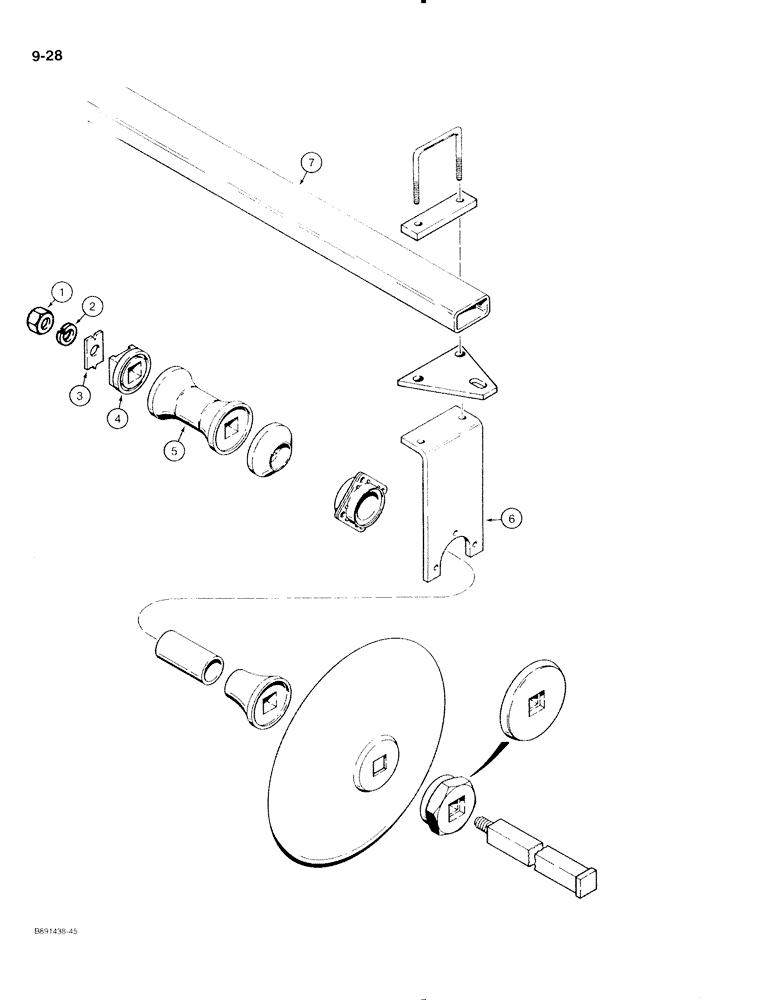

Запчасти Case IH 370 (9-28) - FRONT AND REAR GANGS AND GANG BARS (09) - CHASSIS/ATTACHMENTS

1

220094

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

4шт.

2

492-11112

LOCK WASHER,1 1/8"

- lock, 1-1/8 inch

4шт.

3

489292R1

SUPPORT ASSY.

LOCK - arbor bolt washer

4шт.

4

PA4167

WASHER

- arbor bolt (Disk Harrow coded A through E and G)

4шт.

4

481611R1

WASHER

- arbor bolt (Disk Harrow coded F, H through N, U, V and W)

4шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded D)

10шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded G)

12шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded K)

14шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded A)

16шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded C)

20шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded F and H)

24шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded L)

28шт.

5

481415R1

SPOOL

- spacing, 7 inch (Disk Harrow coded N)

32шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded P)

12шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded Q)

8шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded R)

16шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded S)

10шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded T)

20шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded U and V)

24шт.

5

481416R1

SPOOL

- spacing, 7-1/2 inch (Disk Harrow coded W)

28шт.

5

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded D and Q)

6шт.

5

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded G, K and S)

8шт.

5

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded B)

12шт.

5

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded E and J)

16шт.

5

481417R1

SPOOL

- spacing, 9 inch (Disk Harrow coded M)

20шт.

6

485748R1

SUPPORT ASSY.

BRACKET - bearing (Disk Harrow coded A through G and P through U)

6шт.

6

485748R1

SUPPORT ASSY.

BRACKET - bearing (Disk Harrow coded F with third bearing attachment)

8шт.

6

485748R1

SUPPORT ASSY.

BRACKET - bearing (Disk Harrow coded H through N, V and W)

10шт.

7

653723R93

BAR - front gang (Disk Harrow coded A through E, G, P, Q and S)

2шт.

7

653724R93

BAR - front gang (Disk Harrow coded F)

2шт.

7

653727R94

BAR

- front gang (Disk Harrow coded H through M, U and V)

2шт.

7

653728R92

BAR - front gang (Disk Harrow coded N)

2шт.

7

470968R93

BAR - front gang (Disk Harrow coded N with 80 inch axle)

2шт.

7

470968R93

BAR - front gang (Disk Harrow coded J and W)

2шт.
