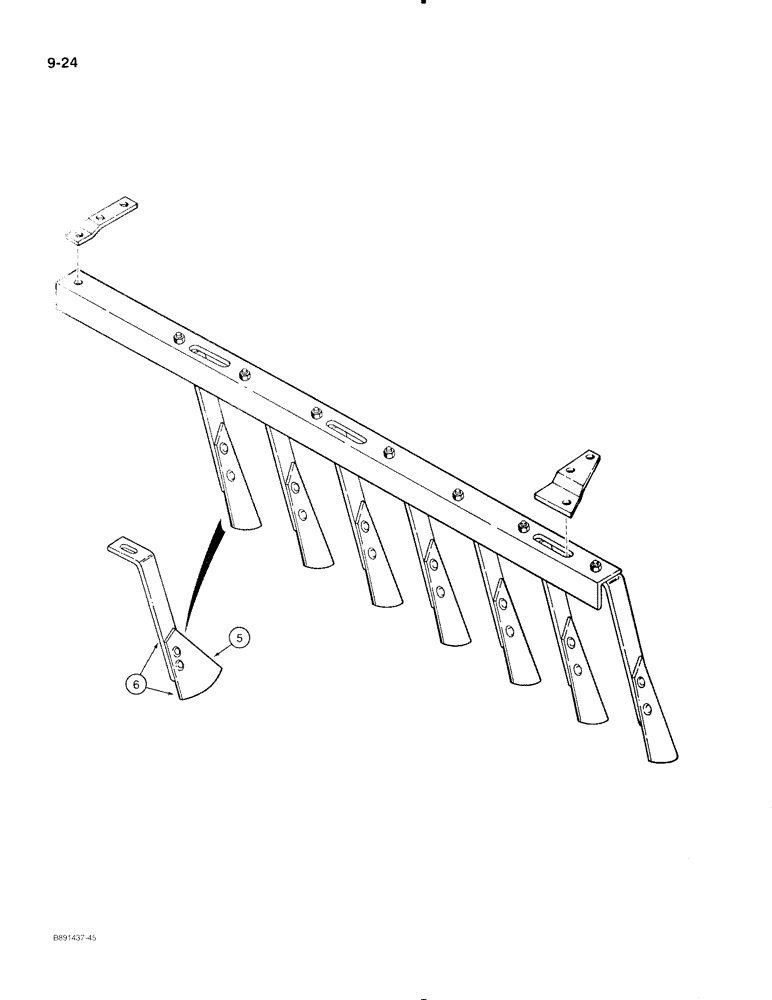

Запчасти Case IH 370 (9-24) - SCRAPERS AND SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

5

543999R1

BLADE

- scraper (1 used per blade scraper)

1шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded B and P)

10шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded Q)

11шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded A, D, E and R)

12шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded S)

13шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded C, G, J and T)

14шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded F, K, M and U)

16шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded H and V)

18шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded L and W)

20шт.

6

465060R93

SCRAPER

- left-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded N)

22шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded B and P)

10шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded Q)

11шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded A, D, E and R)

12шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded S)

13шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded C, G, J and T)

14шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded F, K, M and U)

16шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded H and V)

18шт.

6

465061R93

BLADE

SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper (Disk Harrow coded L and W)

20шт.

6

465061R93

BLADE

(SCRAPER - right-hand, standard, see page 9-26 for heavy duty scraper Disk Harrow coded N)

22шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch (1 used per blade scraper)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (1 used per blade scraper) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (1 used per blade scraper) 1/2"

1шт.
