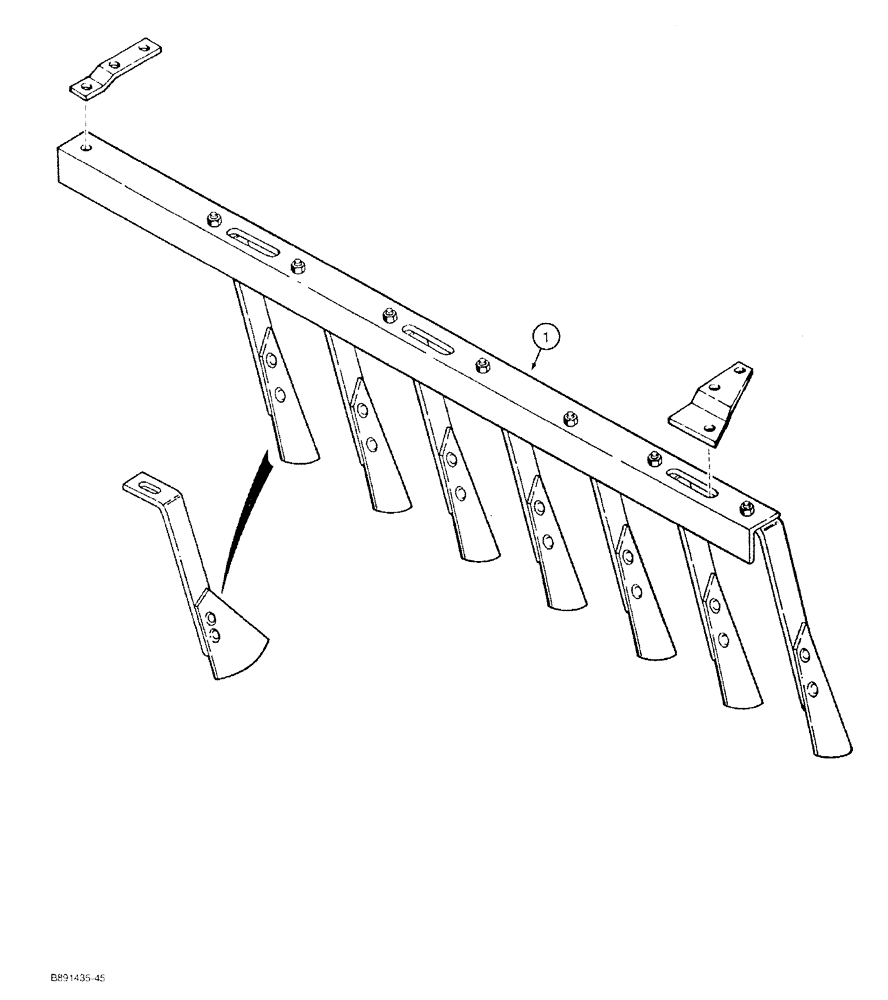

Запчасти Case IH 370 (9-20) - SCRAPERS AND SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

1

465064R2

ANGLE - front and rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded A)

4шт.

1

465068R2

ANGLE - rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded D, P and R)

2шт.

1

465068R2

ANGLE - front and rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded C)

4шт.

1

465072R2

ANGLE - scraper bar, left-hand front and right-hand rear

1шт.

(Disk Harrow coded F)

2шт.

1

465072R2

ANGLE - scraper bar, left-hand front (Disk Harrow coded G)

1шт.

1

465073R2

ANGLE - scraper bar, left-hand rear and right-hand front

1шт.

(Disk Harrow coded F)

2шт.

1

465073R2

ANGLE - scraper bar, right-hand front

1шт.

(Disk Harrow coded G)

1шт.

1

465074R2

ANGLE - front and rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded H)

4шт.

1

465074R2

ANGLE - rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded K)

2шт.

1

465086R2

ANGLE - scraper bar, left-hand front and right-hand rear

1шт.

(Disk Harrow coded L)

2шт.

1

465087R2

ANGLE - scraper bar, left-hand rear and right-hand front

1шт.

(Disk Harrow coded L)

2шт.

1

470972R2

ANGLE - scraper bar, left-hand front and right-hand rear

1шт.

(Disk Harrow coded N)

2шт.

1

470973R2

ANGLE - scraper bar, left-hand rear and right-hand front

1шт.

(Disk Harrow coded N)

2шт.

1

474429R2

ANGLE

- scraper bar, left-hand front

1шт.

(Disk Harrow coded B,D and Q)

1шт.

1

479299R2

BAR

ANGLE - scraper bar, right-hand rear

1шт.

(Disk Harrow coded B, E, G and S)

1шт.

1

479300R2

BAR

ANGLE - scraper bar, left-hand rear

1шт.

(Disk Harrow coded B, E, G and S)

1шт.

1

474428R2

ANGLE

- scraper bar, right-hand front

1шт.

(Disk Harrow coded B, D and Q)

1шт.

1

479292R3

ANGLE

- scraper bar, left-hand front

1шт.

(Disk Harrow coded E, J and K)

1шт.

1

479291R3

ANGLE

- scraper bar, right-hand front

1шт.

(Disk Harrow coded E, J and K)

1шт.

1

479304R3

ANGLE

- scraper bar, left-hand rear

1шт.

(Disk Harrow coded J)

1шт.

1

479304R3

ANGLE

- scraper bar, right-hand front

1шт.

(Disk Harrow coded M)

1шт.

1

479305R3

ANGLE - scraper bar, right-hand rear

1шт.

(Disk Harrow coded J)

1шт.

1

479305R3

ANGLE - scraper bar, left-hand front

1шт.

(Disk Harrow coded M)

1шт.

1

479306R3

ANGLE

- scraper bar, left-hand rear

1шт.

(Disk Harrow coded M)

1шт.

1

479307R3

ANGLE - scraper bar, right-hand rear

1шт.

(Disk Harrow coded M)

1шт.

1

474414R2

ANGLE

- scraper bar

1шт.

(Disk Harrow coded P)

2шт.

1

468560R2

BAR

ANGLE - scraper bar

1шт.

(Disk Harrow coded P and R)

1шт.

1

479297R2

BAR

ANGLE - scraper bar

1шт.

(Disk Harrow coded Q, R and T)

2шт.

1

479301R3

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded S and T)

2шт.

1

479301R3

ANGLE

- front scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded U)

2шт.

1

472570R3

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded U)

2шт.

1

472570R3

ANGLE

- front scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded V)

2шт.

1

472572R2

ANGLE

- rear scraper bar, right-hand

1шт.

(Disk Harrow coded V)

1шт.

1

472572R2

ANGLE

- front scraper bar, right-hand

1шт.

(Disk Harrow coded W)

1шт.

1

472573R2

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded V)

1шт.

1

472573R2

ANGLE

- front scraper bar, left-hand

1шт.

(Disk Harrow coded W)

1шт.

1

472574R2

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded W)

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

608595R1

NUT

- hex, self-locking, 5/8 inch NC (Disk Harrow coded A through U)

1шт.

(2 used per angle) (Disk Harrow coded V and W)

1шт.

(3 used per angle)

1шт.

2

481116R1

SUPPORT

BRACKET - scraper bar angle, front inner, left-hand

1шт.

2

481117R1

BRACKET

- scraper bar angle, front inner, right-hand

1шт.

(Disk Harrow coded B, D, E, G, J, M, K, Q and S)

1шт.

3

465568R1

SPACER - scraper, front inner scraper only, not shown

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

465101R1

SUPPORT

BRACKET - front and rear scraper bar, inner and outer

1шт.

(Disk Harrow coded B, D, E, G, Q and Sd)

6шт.

(Disk Harrow coded A, C, F, P, R, T and U)

8шт.

(Disk Harrow coded F with third bearing attachment)

10шт.

(Disk Harrow coded J, K and M)

10шт.

(Disk Harrow coded H, L, N, V and W)

12шт.
