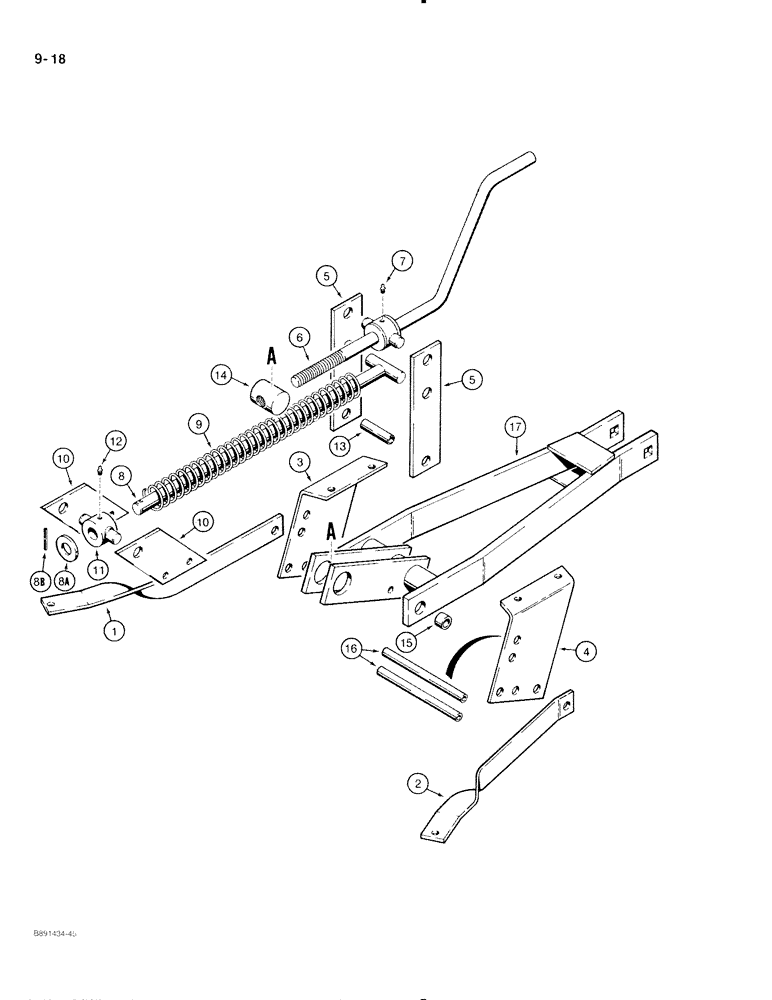

Запчасти Case IH 370 (9-18) - SPRING CUSHIONED HITCH (09) - CHASSIS/ATTACHMENTS

1

478056R1

SUPPORT

BRACE - diagonal, left-hand

1шт.

2

478057R1

BRACE

- diagonal, right-hand

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

3

478054R1

SUPPORT

PLATE - hitch, left-hand

1шт.

4

478055R1

PLATE

- hitch, right-hand

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

478821R1

BOLT,Hex, 3/4" - 10 x 2", Drilled

- special, drilled, 3/4 NC x 2 inch

2шт.

21211R1

WASHER

- flat, 25/32 x 1-1/2 x 3/16 inch

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT - hex, slotted, 3/4 inch NC

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

5

478058R1

BAR

PLATE - adjusting crank

2шт.

6

478048R91

CRANK

- hitch adjusting

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

478051R91

ROD

- spring support

1шт.

8a

21213R1

WASHER

- flat, 1-1/32 x 2 x 1/8 inch

1шт.

8b

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

9

468536R1

SPRING

- hitch cushion

1шт.

10

478059R2

BRACKET

- spring retaining

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 x 1-1/2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

11

651894R3

PIVOT

TRUNNION - spring support rod

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

13

478061R1

SPACER,1/2" X-Strng Pipe x 3 1/16"

- adjusting crank plate

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

- hex, 1/2 NC x 4 inch

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 1/8 inch

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

14

478062R1

PIVOT

SWIVEL - adjusting, Serial Range: crank-hitch

1шт.

15

472547R1

BUSHING

- hitch pivot

2шт.

16

478060R1

PIPE

SPACER - hitch plate, 9-3/8 inch long

2шт.

20494R1

BOLT,Hex, 3/4"-10 x 11", G2

- hex, 3/4 NC x 11 inch

1шт.

413-12184

BOLT,Hex, 3/4" - 10 x 11-1/2", Gr 5

- hex, 3/4 NC x 11-1/2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

17

478044R91

TRAILER HITCH

HITCH - drawbar, spring cushioned

1шт.
