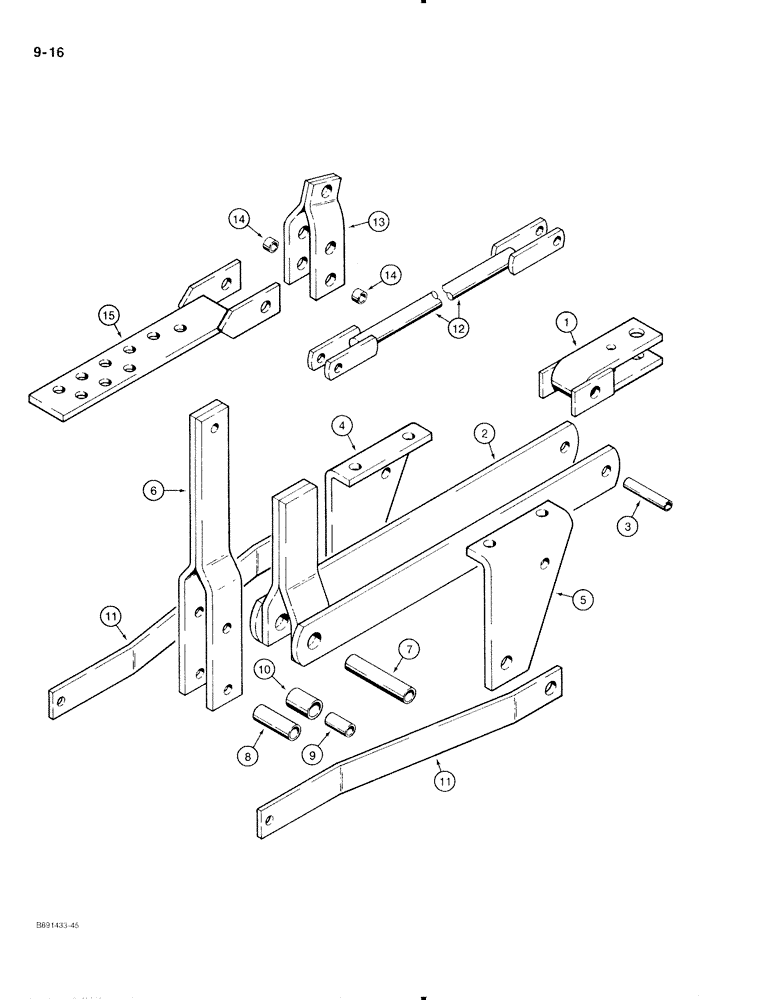

Запчасти Case IH 370 (9-16) - FREE FLOATING HITCH (09) - CHASSIS/ATTACHMENTS

1

1333760C1

CLEVIS

- hitch, see page 9-15 for standard hitch parts

1шт.

2

652746R91

ARM - hitch

1шт.

652543R1

BOLT - hex, 3/4 NC x 5-1/4 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

3

466713R1

SPACER

BUSHING -, Serial Range: clevis-arm

1шт.

4

652744R1

SUPPORT - hitch, right-hand

1шт.

5

652743R1

SUPPORT - hitch, left-hand

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

6

652406R91

BAR - hitch leveling

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

- hex, 5/8 NC x 3-1/2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

- hex, 3/4 NC x 4-1/2 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

7

652740R1

SPACER

- hitch arm

1шт.

8

652415R1

SPACER

BUSHING - leveling bar

1шт.

9

652403R1

SPACER - hitch bar roller

1шт.

10

652405R1

SPACER,1" Pipe x 1 11/16"

ROLLER - hitch bar

1шт.

11

652741R1

BRACE - hitch support

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

21209R1

BOLT - hex, 7/8 NC x 7-3/4 inch

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

12

652407R91

ROD - hitch leveling

1шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN - clevis, 5/8 x 2-1/8 inch

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4" 3/16" x 1 1/4"

2шт.

129-109

NUT,7/8"-9, G5

2шт.

13

462278R91

ARM - cylinder lever

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

14

652416R1

SPACER - gauging strap

2шт.

15

462276R91

STRAP - gauging

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

- hex, 5/8 NC x 2-3/4 inch

1шт.

608595R1

NUT

- hex lock, 5/8 inch NC

1шт.
