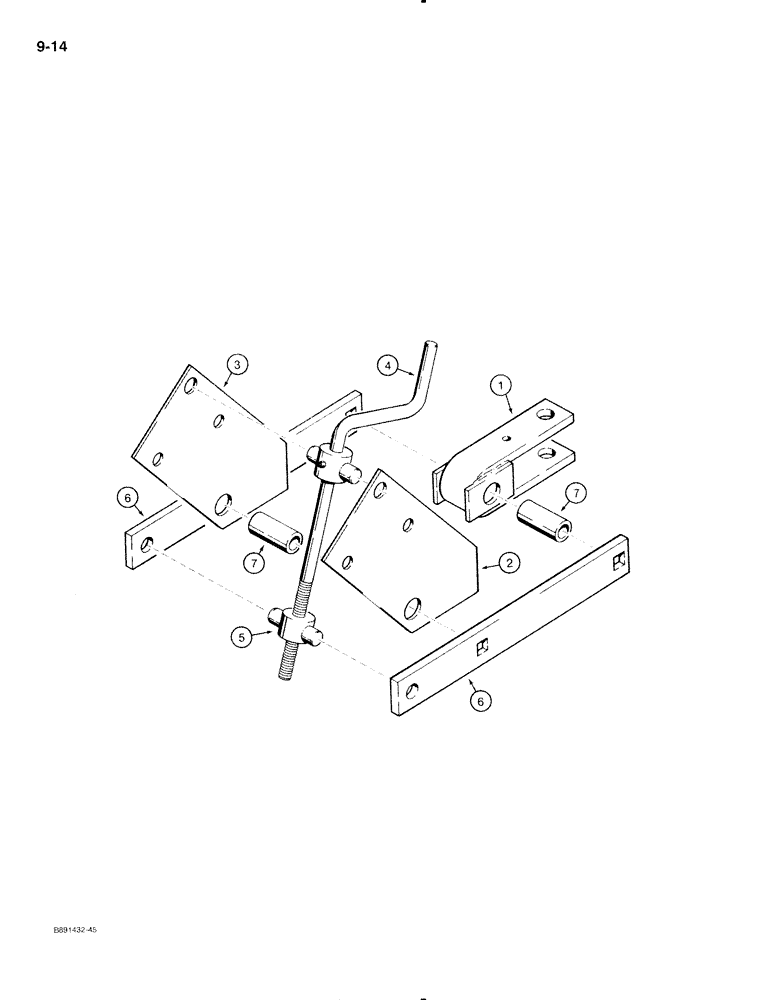

Запчасти Case IH 370 (9-14) - STANDARD HITCH PARTS (09) - CHASSIS/ATTACHMENTS

1

1333760C1

CLEVIS

- hitch, replaces 468546R11

1шт.

2

466711R11

SUPPORT

PLATE - hitch, right-hand

1шт.

3

466711R1

SUPPORT

PLATE - hitch, left-hand

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

- hex, 3/4 NC x 4-1/2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

4

651964R91

SCREW

CRANK - hitch

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

651893R1

TRUNNION

- hitch, Serial Range: crank-arms

1шт.

6

466714R1

BAR

ARM - hitch, Serial Range: clevis-plate

2шт.

466715R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 5 1/4", Gr 5

BOLT - carriage, 3/4 NC x 5-1/4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

7

466713R1

SPACER

BUSHING - hitch arm

2шт.
