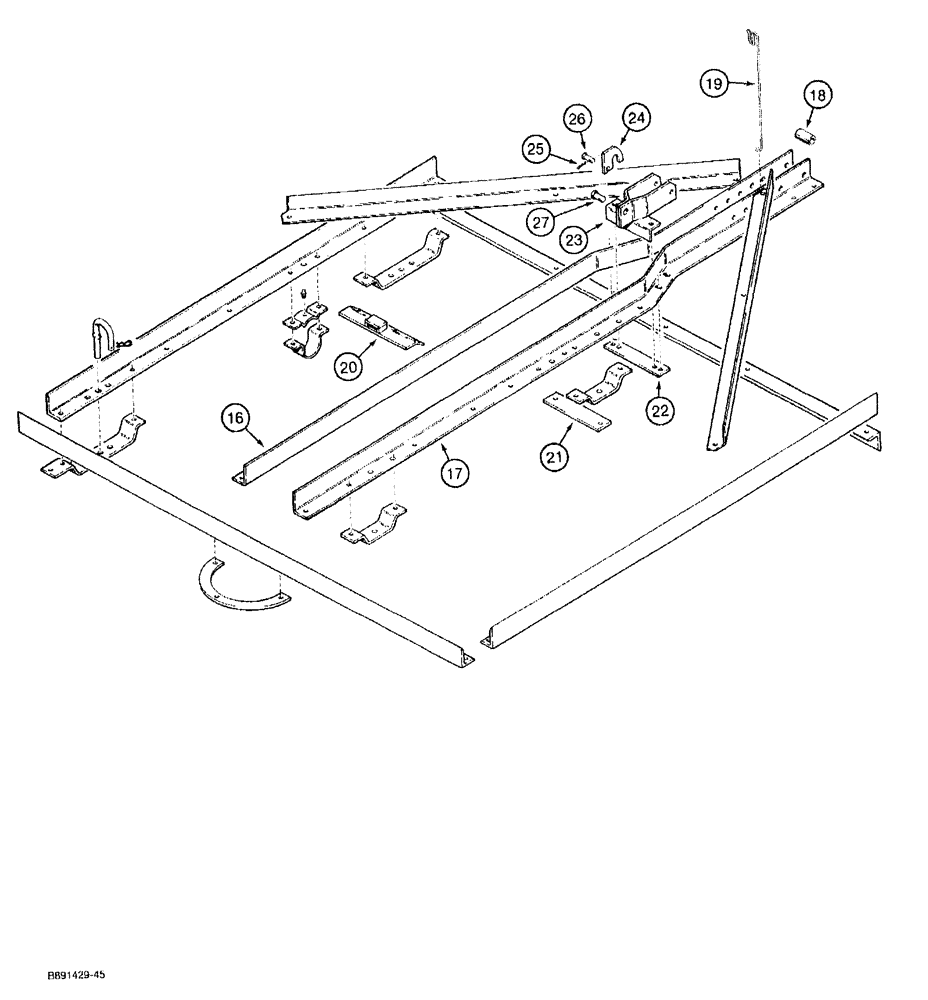

Запчасти Case IH 370 (9-04) - MAIN FRAME (Jul 19 2006 11:23AM) (09) - CHASSIS/ATTACHMENTS

16

653685R2

SPARE PART ANGLE - inner frame, left-hand (Disk Harrow coded A through G and P through T)

1шт.

16

653687R3

ANGLE

ANGLE - inner frame, left-hand (Disk Harrow coded H through M and U, V and W)

1шт.

16

653687R3

ANGLE

ANGLE - inner frame, left-hand (Disk Harrow coded N with 80 inch axle)

1шт.

16

653689R2

SPARE PART ANGLE - inner frame, left-hand (Disk Harrow coded N)

1шт.

17

653686R2

SPARE PART ANGLE - inner frame, right-hand (Disk Harrow coded A through G and P through T)

1шт.

17

653688R3

SPARE PART ANGLE - inner frame, right-hand (Disk Harrow coded H through M and U, V and W)

1шт.

17

653688R3

SPARE PART ANGLE - inner frame, right-hand (Disk Harrow coded N with 80 inch axle)

1шт.

17

653690R2

SPARE PART ANGLE - inner frame, right-hand (Disk Harrow coded N)

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

SPARE PART BOLT - hex, 5/8 NC x 1-1/2 inch

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

18

651958R1

SPACER,3/4" Pipe x 2 1/4"

SPACER - inner frame angle

2шт.

19

651793R2

SUPPORT

SUPPORT - hose

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

SPARE PART BOLT - hex, 5/8 NC x 2 inch

1шт.

464623R1

WASHER

WASHER - 21/32 x 1-1/2 x 9/64 inch

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

20

461751R92

SUPPORT

ANGLE - transport

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

SPARE PART BOLT - hex, 5/8 NC x 1-1/2 inch

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

21

653676R1

BAR

SPARE PART STRAP - support, if used

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

SPARE PART BOLT - hex, 5/8 NC x 2 inch

1шт.

PO28185

BLOCK

WASHER - special, square

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

22

653715R1

SPARE PART SUPPORT - cylinder anchor (Disk harrow coded H through M and U, V and W)

1шт.

23

653738R91

SUPPORT

ANCHOR - cylinder, replaced by 139605C1 anchor

1шт.

23

139605C1

ANCHOR

ANCHOR - cylinder

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

SPARE PART BOLT - hex, 5/8 NC x 1-1/2 inch

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

SPARE PART BOLT - hex, 5/8 NC x 1-3/4 inch

2шт.

464623R1

WASHER

WASHER - 21/32 x 1-1/2 x 9/64 inch

2шт.

492-11062

BEARING WASHER,5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

24

653673R2

LATCH

LATCH - cylinder mounting

1шт.

25

520175R1

CLIP

PIN - hair, at cylinder support braces

1шт.

26

21809R1

HEADED PIN,3/8" x 1 5/16"

PIN - clevis, 3/8 x 1-5/16 inch

1шт.

27

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN - clevis, 1/2 x 1-3/8 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

2шт.
