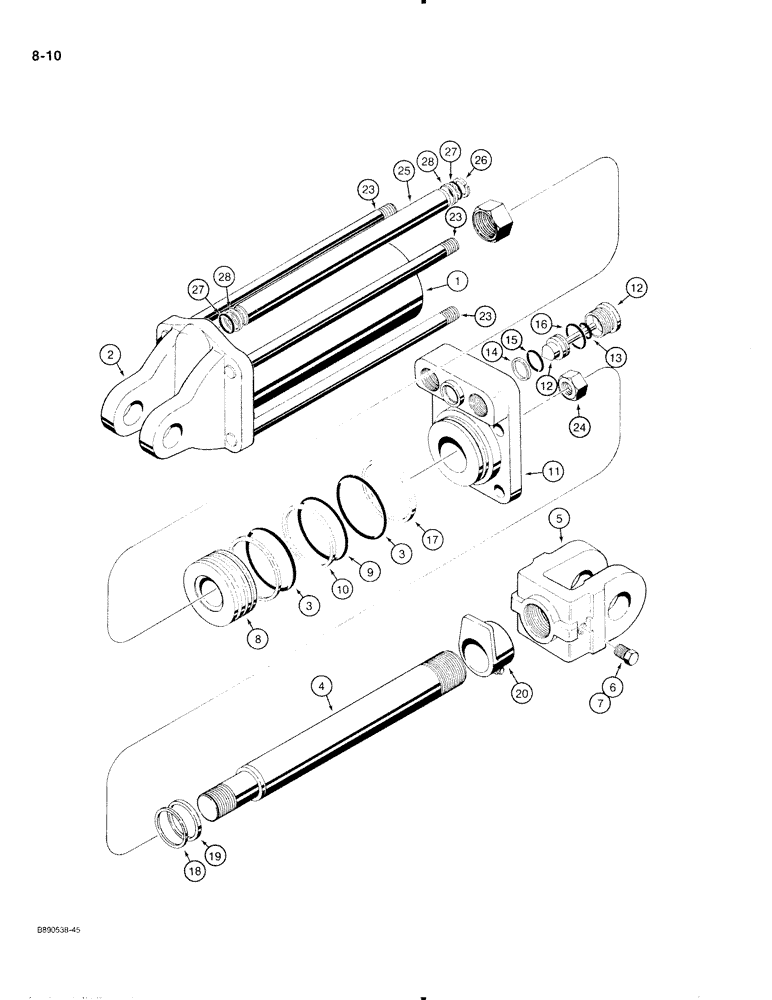

Запчасти Case IH 370 (8-10) - TRANSPORT LIFT CYLINDER,1263474C91 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1263474C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, transport lift, 3/4 inch O-ring boss ports
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
145354C1
HEAD
CAP - end, cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - end cap and gland
2шт.
4
145231C1
PISTON ROD
ROD - piston
1шт.
5
1282366C1
RAM FORK
CLEVIS - piston rod
1шт.
6
25496R1
BOLT,Hex, 3/8" - 16 x 7/8", Gr 8
- hex, 3/8 NC x 7/8 inch
1шт.
7
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - clevis, nylon
1шт.
8
145422C1
PISTON
- cylinder
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
11
1272826C1
HEAD
GLAND - cylinder
1шт.
1260968C91
VALVE
ASSEMBLY - stop limiting
1шт.
12
NSS
NOT SOLD SEPARAT
VALVE - stop limiting
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - valve, 3/16 inch ID
1шт.
14
NSS
NOT SOLD SEPARAT
RING - backup, O-ring
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - valve, 11/16 inch ID
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - valve, Serial Range: head-gland
1шт.
17
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
18
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
19
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
20
224581C2
ARM
STOP - depth, cylinder
1шт.
1263435C91
ADJUSTMENT SCREW
LEVER ASSEMBLY - cylinder adjusting
2шт.
21
NSS
NOT SOLD SEPARAT
LEVER - cylinder adjusting, not shown
1шт.
22
425-145
JAM NUT,Jam, 5/16"-18, G5
- hex jam, 5/16 inch NC, not shown
1шт.
23
145250C1
BOLT,5/8" - 11 x 345mm
- tie, cylinder
4шт.
24
425-1010
NUT,5/8"-11, G5
4шт.
25
371211R2
TUBE,0.573" ID, 0.748" OD, 10.963" Length
- return
1шт.
26
110730
LOCK WASHER
WASHER - lock, 3/8 inch
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING - return tube
2шт.
28
NSS
NOT SOLD SEPARAT
RING - backup, return tube O-ring
2шт.
79978C2
SEAL KIT
KIT - seal and O-ring, includes Ref. 3, 9, 10, 17, 18 & 19
1шт.
1272597C91
KIT
- valve and transfer tube, includes Ref. 12, 13, 14, 15, 16, 26, 27 & 28
1шт.
Выбрано товаров: 33
