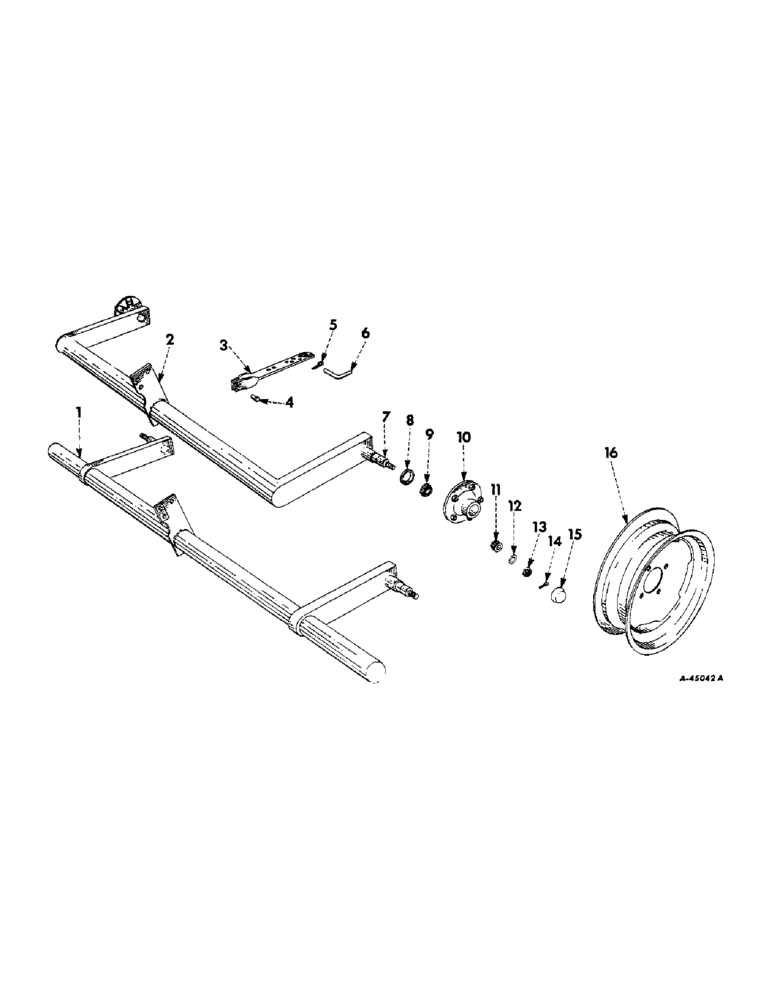

Запчасти Case IH 37 (D-10) - WHEEL SHAFT, HUB AND WHEEL

1

653650R92

SHAFT ASSY, wheel, for 12 ft., 12 ft. 1 in. 14 ft 80 in. wheel tread, 1962, 1 used units H, I, J, K and L

1шт.

1

472291R91

AXLE W/NUTS, cotter pins and washer, for 12 ft. 12 ft. 11 in. 14 ft 80 in wheel tread, 1963 and since, 1 used units H, I, J, K and L

1шт.

2

653637R92

SHAFT ASSY, wheel, will work for 652756R91, 1955 to 1962, 1 used units A, B, C, and D

1шт.

2

472281R91

AXLE

W/NUTS, cotter pins and washers, 1963 and since, 1 used units A, B, C, and D

1шт.

2

653638R92

SHAFT ASSY, wheel, will work for 652191R91, 1955 to 1962, 1 used units E, F, and G

1шт.

2

472283R91

AXLE W/NUTS, cotter pins and washer, 1963 and since, 1 used units E, F and G

1шт.

2

653639R92

SHAFT ASSY, wheel, will work for 652192R91, 1957 to 1962, 1 used units H, I, J, K, L and M

1шт.

2

472285R91

AXLE

W/NUTS, cotter pins and washers, 1963 and since, 1 used units H, I, J, K, L and M

1шт.

2

653640R92

SHAFT ASSY, wheel, will work for 652193R91, 1955 to 1962, 1 used unit N

1шт.

2

472287R91

AXLE W NUTS, cotter pins and washers, 1963 and since, 1 used unit N

1шт.

.

69442D

NUT

3/4 slotted

2шт.

.

PIN, 1/8 x 1-1/4 cotter

2шт.

.

615168R1

WASHER

1-5/16 x 25/32 x 11 ga, 2 used all units

1шт.

3

651965R91

STRAP

ASSY, gaging, 1 used all units

1шт.

4

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/2 dld std hd, 1 used all units

1шт.

5

520175R1

CLIP

PIN, quick-attachable cotter, 1 used all units

1шт.

6

651896R1

ROD

PIN, gaging, 1 used all units

1шт.

7

653636R91

SPINDLE ASSY, service, 1955 to 1962, 2 used all units

1шт.

7

472289R91

SPINDLE

ASSY, service, 1963 and since, 2 used all units

1шт.

8

653632R91

SEAL

grease, 1957 to 1962, 2 used all units

1шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

OIL SEAL, wheel hub, for 472220R11 hub, 2 used all units

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, inner bearing, 2 used all units

1шт.

9

651817R1

BEARING CUP

CUP, bearing, not illustrated, 2 used all units

1шт.

9

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

10

652381R91

HUB

W/BUSHING, cup bolts and nuts, 4 bolt wheel, order 461892R31, 2 used all units

1шт.

.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, 1/2-UNF x 1-1/2 wheel hub, 4 used all units

1шт.

.

453770R1

WHEEL NUT

1/2-UNF wheel hub, 4 used all units

1шт.

10

461892R31

HUB W/BOLTS AND NUTS, 1962, 2 used all units

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2-UNF x 1-5/8 press fit, 4 used all units

1шт.

10

472220R11

HUB

W/SET SCREW ASSY, 1963 and since, 2 used all units

1шт.

443804

SCREW, 1/4-UNF x 1/4 C-Z hdls-slt-set, 2 used all units

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

special wheel hub, 4 used all units 1/2 x 20 x 15/16

1шт.

.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 straight lub, 2 used all units

1шт.

.

472224R1

SLEEVE

oil seal, not illustrated, 1963 and since, for 472220R11 hub, 2 used for all units

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing, 2 used all units

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

651814R1

BEARING CUP

CUP, outer bearing, not illustrated, 2 used all units

1шт.

12

495-21063

WASHER,9/16"

rd-hole, 2 used all units

1шт.

13

69442D

NUT

3/4-16-UNF slt, 2 used all units

1шт.

14

PIN, 3/16 x 1-1/4 cotter, 2 used all units

1шт.

15

651194R1

CAP

hub, 2 used all units

1шт.

16

455169R92

WHEEL

disc, 4 bolt, 15 in., 2 used all units

1шт.

16

463036R1

WHEEL (STEERING)

WHEEL, disc, 14 in., 2 used all units

1шт.
