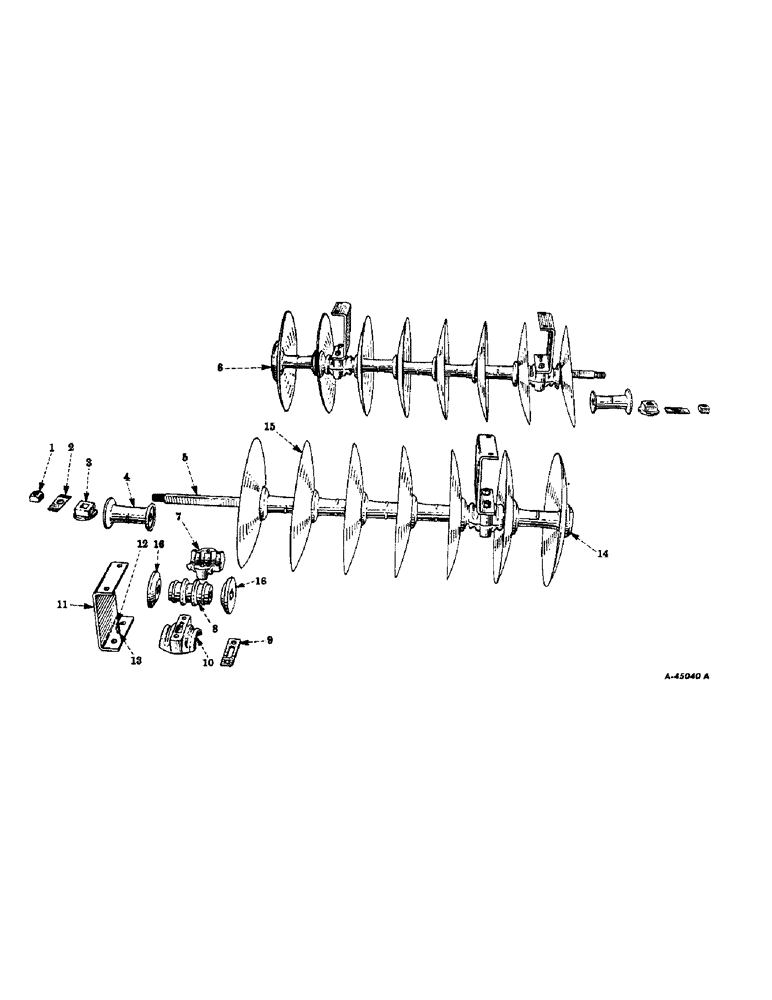

Запчасти Case IH 37 (D-04) - FRONT AND REAR GANGS, 1955 TO 1961

1

218557

GEAR

arbor bolt, 1955 to 1960, 4 used for all units

1шт.

1

22089

NUT, arbor bolt, 1960 and since, 4 used for all units

1шт.

2

P34101

LOCK

arbor bolt nut (per arbor bolt)

1шт.

3

PA4167

WASHER

arbor bolt (per arbor bolt), units A thru E & G

1шт.

3

481611R1

WASHER

arbor bolt (per arbor bolt), unit F & H thru N

1шт.

4

481415R1

SPOOL

spacing, will work for 651033R2, 10 for unit D, 12 for unit G, 14 for units J & L, 16 for unit A, 20 for unit C, 24 for units F & H, 28 for unit K, 32 for unit N

1шт.

4

481417R1

SPOOL

spacing, will work for PC3058, 6 for units C & G, 8 for unit J, 10 for unit L, 12 for unit 8, 14 for unit E, 16 for unit I, 20 for unit M

1шт.

5

651920R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 45.6"

arbor, 4 used with unit A

1шт.

5

651921R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 52.6"

arbor, 2 used unit D, 4 used unit C

1шт.

5

651922R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 60.4"

arbor, 2 for unit G, 4 for unit F

1шт.

5

651923R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 74.4"

arbor, 2 for unit L, 4 for unit K

1шт.

5

652359R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 81.4"

arbor, 4 for unit N

1шт.

5

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 2 used unit D, 4 used unit B

1шт.

5

471015R1

BOLT,1 1/8"-7 x 57.8"

arbor, 2 used unit G, 4 used unit E

1шт.

5

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

arbor, 67.4 inch, 4 for units H, I, and J

1шт.

5

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 2 for unit L, 4 for unit M

1шт.

6

468584R2

SQ HOLE WASHER

bumper, 2 used all units

1шт.

7

P3091

SUPPORT

BEARING, lower, 1961, 8 used units, A, B, C, D, E, F, G, 12 used units H, I, J, K, L, M, N

1шт.

7

P3120

CAP

BEARING, lower, 1955 to 1961, 4 used units D and G, 6 used units J and L, 8 used units B and E, 12 used units I and M

1шт.

8

651035R3

SPOOL

bearing, 4 used units D, E, and G, 6 used units J and L, 8 used units A, C, and F, 12 used units H, K, and N

1шт.

8

652780R1

SPOOL

center bearing, 1961, 4 used units D and G, 6 used units J and L, 8 used units B and E and 12 used units I and M

1шт.

8

PD3118

SPOOL

bearing, 1955 to 1961, 4 used units D and G, 6 used units J and L, 8 used units B and E, 12 used units I and M

1шт.

9

650171R2

STRUT

GASKET, bearing, 8 used units, A, B, C, D, E, F and G, 12 used units, H, I, J, K, L, M and N

1шт.

10

PB3089

BEARING

upper, 1961 and since, 8 used units A, B, C, D, E, F, and G, 12 used units, H, I, J, K, L, M, and N

1шт.

10

PC3119

CAP

BEARING, upper, 1955 to 1961, 4 used units D and G, 6 used units J and L, 8 used units B and E, 12 used units, I and M

1шт.

11

652786R2

CHANNEL

STANDARD, bearing, 8 used units A, B, C, D, E, F, and G, 12 used units H, I, J, K, L, M and N

1шт.

BOLT W/NUT, 5/8 x 5-1/4 crg, 16 used units A, B, C, D, E, F and G, 24 used units H, I, J, K, L, M and N

1шт.

WASHER, 5/8 lock, 16 used units A, B, C, D, E, F, and G, 24 used units H, I, J, K, L, M and N

1шт.

12

652944R91

FITTING

1/4-45 deg elbow lug

1шт.

12

109350

FITTING, 1/8-67-1/2 deg elbow lub, 1955 to 1956, 8 used units A, B, C, D, E, F and G, 12 used units H, I, J, K, L, M and N

1шт.

13

651116R1

PIPE, 1/4 oil, 1955 to 1956, 8 used units, A, B, C, D, E, F, and G, 12 used units H, I, J, K, L, M and N

1шт.

14

P4165

WASHER, head, 2 used all units

1шт.

15

140551/2

DISK, 16 in, 11 ga. solid

1шт.

15

140561/2

DISC

DISK, 18 in. 10 ga. solid

1шт.

15

143811/2

DISC

DISK, 20 in. 9 ga. solid

1шт.

15

143511/2

DISK, 16 in. 11 ga. notched

1шт.

15

143521/2

NOTCHED DISK

DISK, 18 in. 10 ga. notched

1шт.

15

143531/2

NOTCHED DISK

DISK, 20 in. 9 ga. notched

1шт.

15

651197R1

DISK HARROW

DISK, 16 in. 10 ga. solid

1шт.

15

651199R1

DISC

DISK, 18 in. 9 ga. solid

1шт.

16

651198R1

DISC

DISK, 16 in. 10 ga. notched

1шт.

15

651200R1

DISK HARROW

DISK, 18 in. 9 ga. notched

1шт.

15

652761R1

DISK HARROW

DISK, 16 in. 10 ga. solid alloy steel

1шт.

15

652762R1

DISC

DISK, 16 in. 9 ga. notched alloy steel

1шт.

15

652763R1

DISC

DISK, 18 in. 9 ga. solid alloy steel

1шт.

15

652764R1

DISC

DISK, 18 in 8 ga. notched alloy steel, order 482987R1

1шт.

15

482987R2

DISK HARROW

DISK, 18 in. 8 ga. notched heavy duty

1шт.

15

652765R1

DISC

DISK, 20 in. 8 ga. solid alloy steel

1шт.

15

652766R1

DISC

DISK, 20 in. 8 ga. notched alloy steel, 24 for unit B, 28 for unit A, D and E, 32 for units C, G & I, 36 for units F, J & M, 40 for units H & L, 44 for unit K, 48 for unit N

1шт.

16

652779R1

SPOOL

END, long bearing spool, 1961, 4 used on units D and G, 6 used on units J and L, 8 used on units B and E, 12 used on units I and M

1шт.
