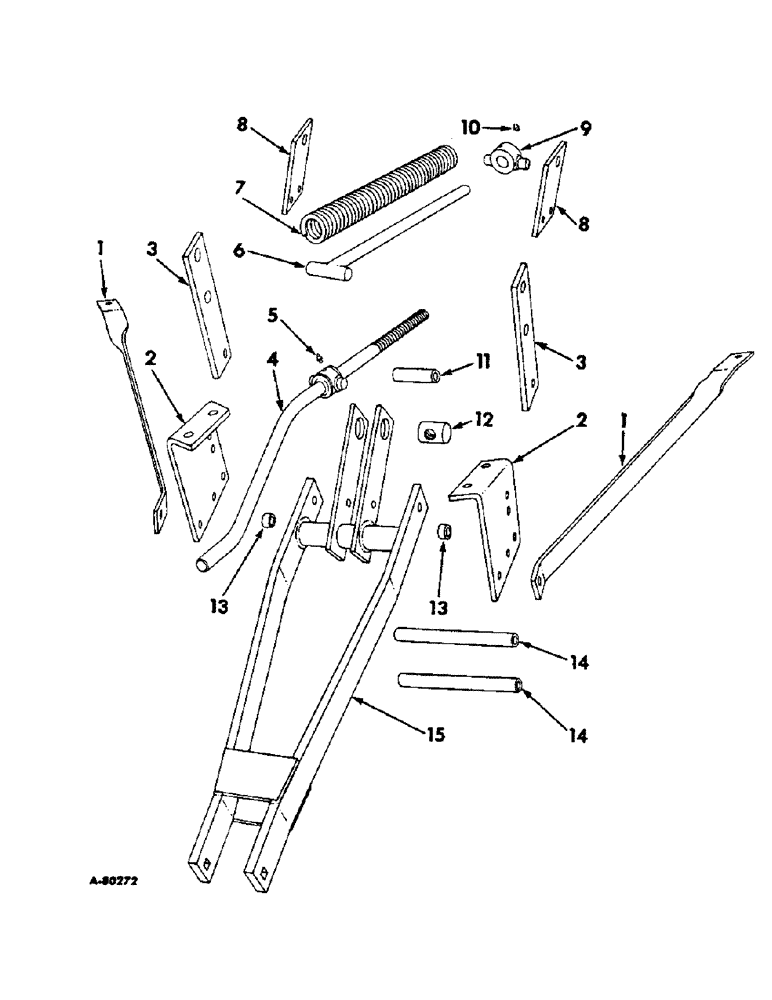

Запчасти Case IH 37 (D-24) - SPRING CUSHIONED HITCH ATTACHMENT

1

478056R1

SUPPORT

BRACE, diagonal LH

1шт.

1

478057R1

BRACE

diagonal RH

1шт.

BOLT, 5/8 x 2 hed-hd mach

2шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

2

478054R1

SUPPORT

PLATE, hitch LH

1шт.

2

478055R1

PLATE

hitch RH

1шт.

BOLT, 5/8 x 1-1/2 mach

4шт.

NUT, 5/8

4шт.

NUT, 3/4

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 hex. sltd

2шт.

PIN, 1/8 x 1-1/2 cotter

2шт.

478821R1

BOLT,Hex, 3/4" - 10 x 2", Drilled

SCREW, 3/4 x 2 dld-hex-hd cap

2шт.

SCREW, 3/4 x 2-1/4 hex-hd cap

1шт.

WASHER, 5/8 lock

4шт.

WASHER, 3/4 lock

1шт.

23471S

WASHER

25/32 x 1-1/2 x 7 ga

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

3

478058R1

BAR

crank adjusting

2шт.

4

478048R91

CRANK

ASSY

1шт.

5

16964R91

FITTING

1/4-28 x 90 deg lub

1шт.

6

478051R91

ROD

ASSY, spring

1шт.

657196R1

PIN

1/4 x 2 roll

1шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

1шт.

7

468536R1

SPRING

hitch

1шт.

8

478059R1

BRACKET

spring retainer

2шт.

BOLT, 5/8 x 1-1/2 hex-hd mach

4шт.

NUT, 5/8

4шт.

WASHER, 5/8 lock

4шт.

9

651894R3

PIVOT

SWIVEL

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 straight lub

1шт.

11

478061R1

SPACER,1/2" X-Strng Pipe x 3 1/16"

crank adjusting

1шт.

BOLT, 1/2 x 4 hex-hd mach

1шт.

455388R1

NUT

1/2 lock

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

12

478062R1

PIVOT

SWIVEL, hitch adjusting bar

1шт.

13

472547R1

BUSHING

hitch pivot

2шт.

14

478060R1

PIPE

SPACER, 3/4 x 9.35 in. long pipe

2шт.

18048R1

BOLT, 3/4 x 11 hex-hd mach

1шт.

20488R1

BOLT

3/4 x 11-1/2 hex-hd mach

1шт.

NUT, 3/4

2шт.

WASHER, 3/4 lock

2шт.

15

478044R91

TRAILER HITCH

HITCH ASSY

1шт.
