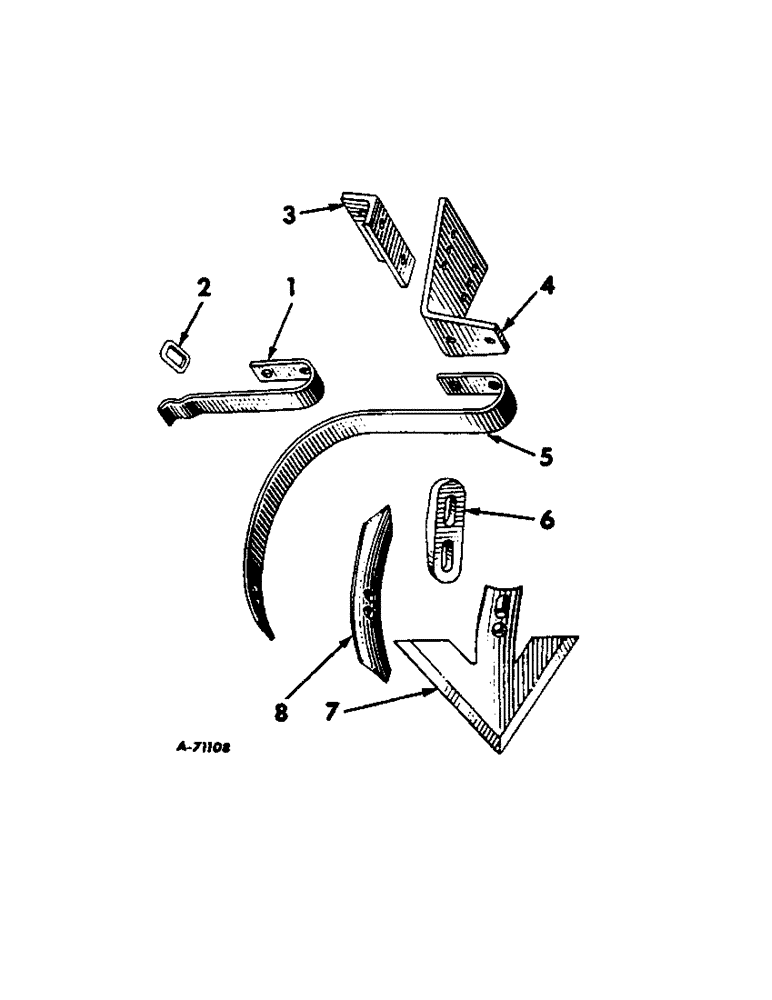

Запчасти Case IH 37 (D-23) - CENTER TOOTH ATTACHMENT

1

14032

REINFORCEMENT

center tooth

1шт.

BOLT W/NUT, 7/16 x 1-3/4 mach

2шт.

WASHER, 7/16 lock

2шт.

2

P4163

LINK

KEEPER, reinforcement

1шт.

3

466947R1

ANGLE

BRACKET, support

1шт.

BOLT W/NUT, 5/8 x 1-1/2 mach

2шт.

BOLT W/NUT, 5/8 x 1-3/4 mach

2шт.

WASHER, 5/8 lock

4шт.

4

466946R1

SUPPORT, center spring tooth

1шт.

5

PA24783

SPRING

TOOTH, center spring

1шт.

6

466868R1

WEDGE

sweep adjusting

1шт.

7

479005R2

SWEEP

6 in. universal, will work for 519043R1

1шт.

BOLT W/NUT, 7/16 x 1-1/2 crg

1шт.

NUT, 7/16 C-Z

1шт.

25548BA

BOLT, 7/16 x 1-1/2 secial oval-hd C-Z pltd plow

1шт.

8

5886

POINT

spring tooth double

1шт.

BOLT W/NUT, 3/8 x 1-1/8 no. 3 hd plow

2шт.
