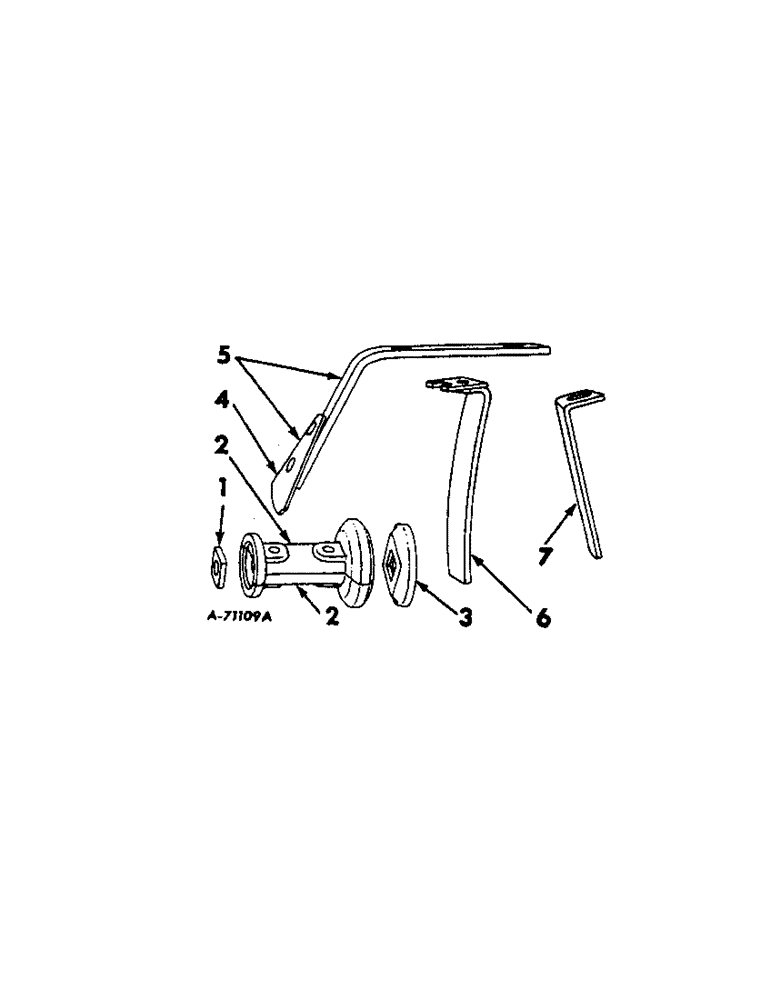

Запчасти Case IH 37 (D-23[A]) - DISK BACK SCRAPER, FILLER DISK SCRAPER FURROW FILLER AND TRASH BAR ATTACHMENTS

1

466986R1

BLOCK

SPACER, arbor hd-washer

2шт.

2

482970R1

SPOOL

furrow filler, will work for 466949R1

4шт.

17579

BRACKET

BOLT, 3/4-10 x 2 C-Z hex-hd mach

2шт.

218443

NUT

3/8 jam

2шт.

NUT, 3/4 sq

2шт.

BOLT W/NUT, 1/2 x 3-1/4 mach

4шт.

WASHER, 1/2 lock

4шт.

WASHER, 3/4 lock

2шт.

3

466950R2

WASHER

arbor bolt-hd, 1962 and since

2шт.

3

P4165

WASHER, arbor bold-hd, Serial Range: 1955-1961

2шт.

4

465062R1

BLADE

scraper

2шт.

RIVET, 3/8 x 1-1/8 tr-hd

4шт.

5

466952R91

BLADE

SCRAPER ASSY, filler disk LH

1шт.

5

466953R91

BLADE

SCRAPER ASSY, filler disk RH

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 7/16 x 2 crg

2шт.

6

466956R11

SCRAPER ASSY, disk back LH

1шт.

6

466957R11

SCRAPER ASSY, disk back RH

1шт.

BOLT, 1/2 x 1-3/4 crg

2шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

7

652390R11

BAR W/BOLT ASSY, trash LH

1шт.

7

652391R11

BAR W/BOLT ASSY, trash RH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 crg

2шт.

WASHER, 1/2 lock

2шт.
