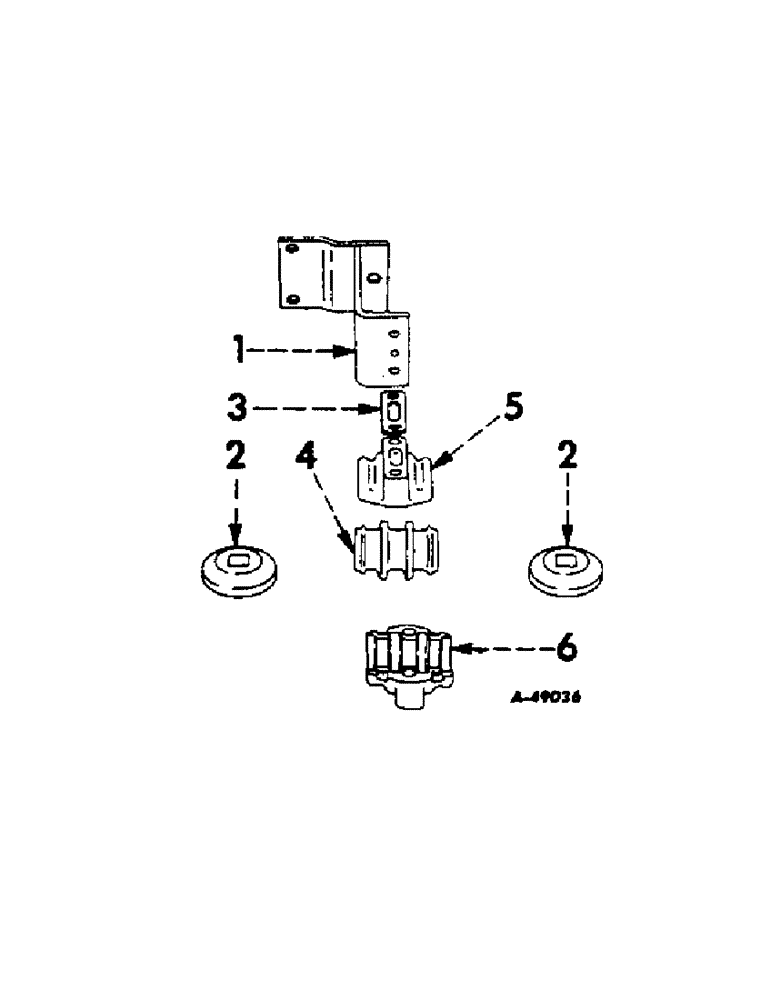

Запчасти Case IH 37 (D-22[A]) - HEAVY DUTY BEARING, SPECIAL 1955 TO 1961

1

652784R91

STANDARD ASSY, inner bearing, 2 used units F, H and K

1шт.

1

652785R91

STANDARD ASSY, inner bearing, 2 used units E, G, I, J, L and M

1шт.

BOLT W/NUT, 5/8 x 5-1/4 crg, 4 used units E, F and G

1шт.

SCREW, 7/8 x 4-3/4 cap, 2 used units E, F, G, H, I, J, K, L, M, and N

1шт.

WASHER, 5/8 lock, 4 used units E, F and G

1шт.

2

652778R1

SPOOL

short bearing end, 8 used unit G, 12 used units J and L, 20 used unit F, 24 used units H, K and N

1шт.

2

652779R1

SPOOL

long bearing end, 12 used units G, J and L, 20 used unit E, 24 used units I and M

1шт.

3

650171R2

STRUT

GASKET, bearing, 2 used units E, F and G

1шт.

4

652780R1

SPOOL

center bearing, 10 used units E, F and G, 12 used units H, I, J, K, L M and N

1шт.

5

PB3089

BEARING

upper, 2 used unit F, 6 used units G, J and L, 10 used unit E, 12 used units I and M

1шт.

6

P3091

SUPPORT

BEARING, lower, 2 used unit F, 6 used units G, J and L, 10 used unit E, 12 used units I and M

1шт.

652356R3

BOLT,Wheel, 3/4" - 10 x 4 13/32"

U-BOLT, gang, 2 used units E, F and G

1шт.

NUT, 3/4, 4 used units E, F and G

1шт.

WASHER, 3/4 lock, 4 used units E, F and G

1шт.

652944R91

FITTING

1/4 deg elbow lub, 2 used units E, F and G

1шт.
